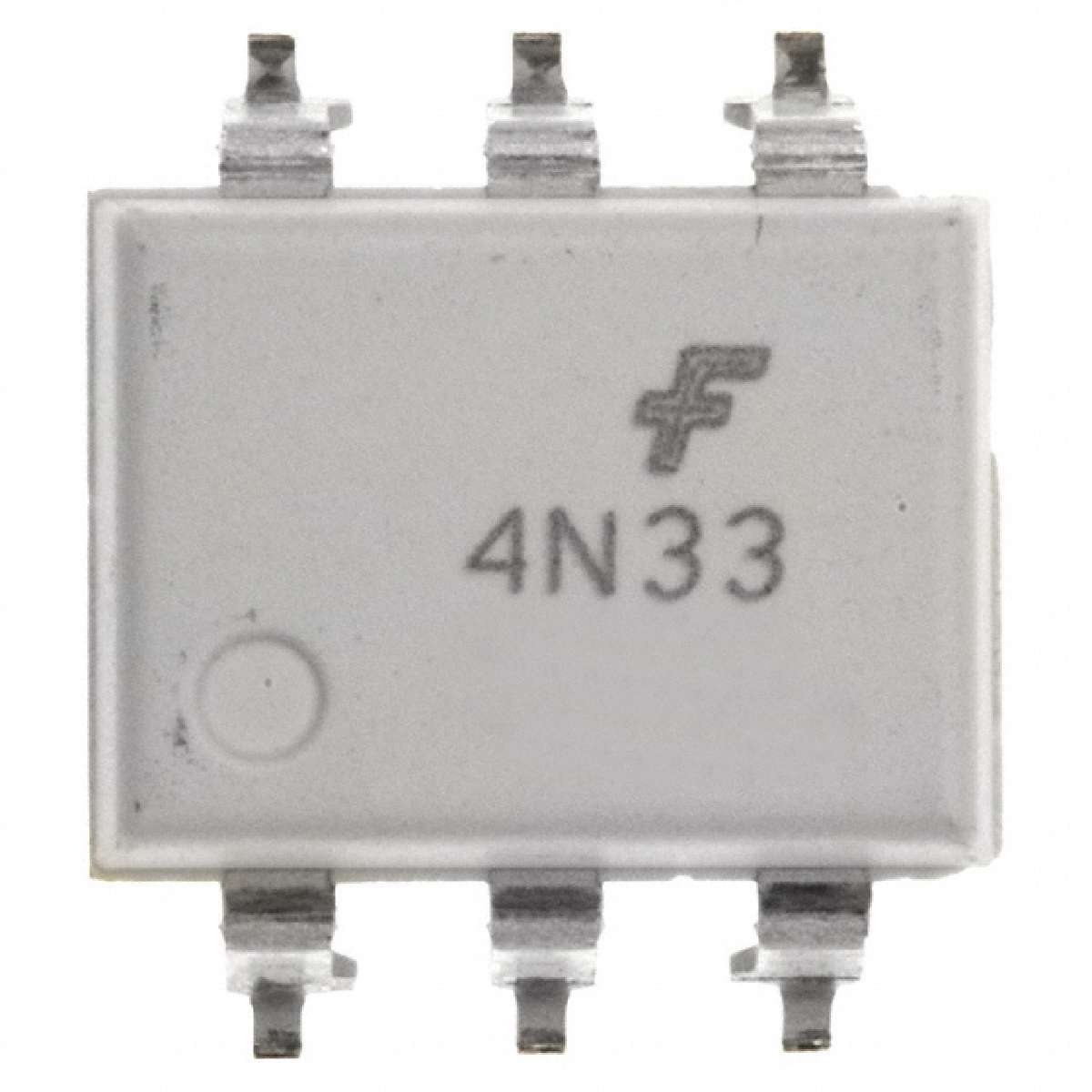

| 4N33SR2M | ||
|---|---|---|
|
|
||
|
||
| 产品描述：
DIP6 SMT Single Channel 30 V 4170 VAC (rms) Photo Darlington Optocoupler
|
||
| 标准包装：1000 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Maximum Collector Emitter Voltage: | 30 V |
|---|---|
| Maximum Collector Current: | 150 mA |
| Packaging: | Reel |
| Isolation Voltage: | 7500 Vrms |
| If - Forward Current: | 80 mA |
| Output Type: | Photodarlington |
| Pd - Power Dissipation: | 250 mW |
| Factory Pack Quantity: | 1000 |
| RoHS: | Details |
| Product Category: | Transistor Output Optocouplers |
| Configuration: | 1 Channel |
| Vf - Forward Voltage: | 1.5 V |
| ECCN | EAR99 |
| Number of Channels: | 1 Channel |
| Width: | 6.6 mm |
| Maximum Collector Emitter Saturation Voltage: | 1 V |
| Length: | 8.89 mm |
| Manufacturer: | Fairchild Semiconductor |
| Vr - Reverse Voltage: | 3 V |
| Minimum Operating Temperature: | - 40 C |
| Brand: | Fairchild Semiconductor |
| Package / Case: | SMD-DIP-6 |
| Height: | 3.53 mm |
| Unit Weight: | 0.028572 oz |
| Maximum Operating Temperature: | + 100 C |
