| LTST-S321KSKT | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

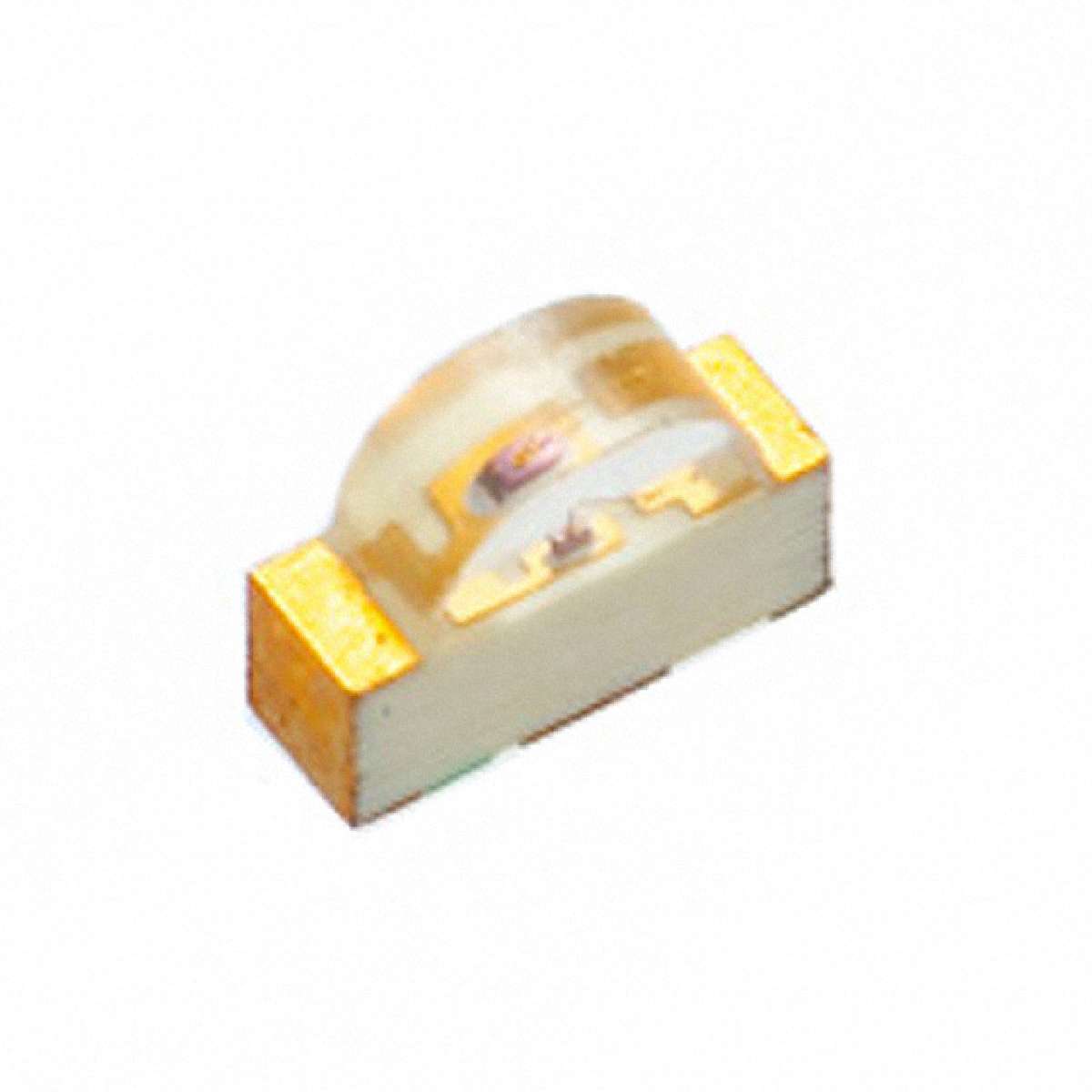

Yellow 130° Water Clear 180 mcd 2.4 V AlInGaP Surface Mount Lamp LED
|
||
| 标准包装：3000 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Package / Case | 1208 (3020 Metric) |
|---|---|
| Supplier Device Package | 1208 |
| Color | Yellow |
| Packaging | Tape & Reel (TR) |
| Lens Color | Colorless |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Wavelength - Peak | 588nm |
| Height (Max) | 1.00mm |
| Lens Transparency | Clear |
| ECCN | EAR99 |
| Viewing Angle | 130° |
| Standard Package | 3,000 |
| Size / Dimension | 3.00mm L x 2.00mm W |
| Lens Style/Size | Rectangle with Domed Top, 2.00mm x 1.00mm |
| Wavelength - Dominant | 591nm |
| Current - Test | 20mA |
| Family | LED Indication - Discrete |
| Mounting Type | Surface Mount, Right Angle |
| Millicandela Rating | 113mcd |
