| 561V504EFT | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

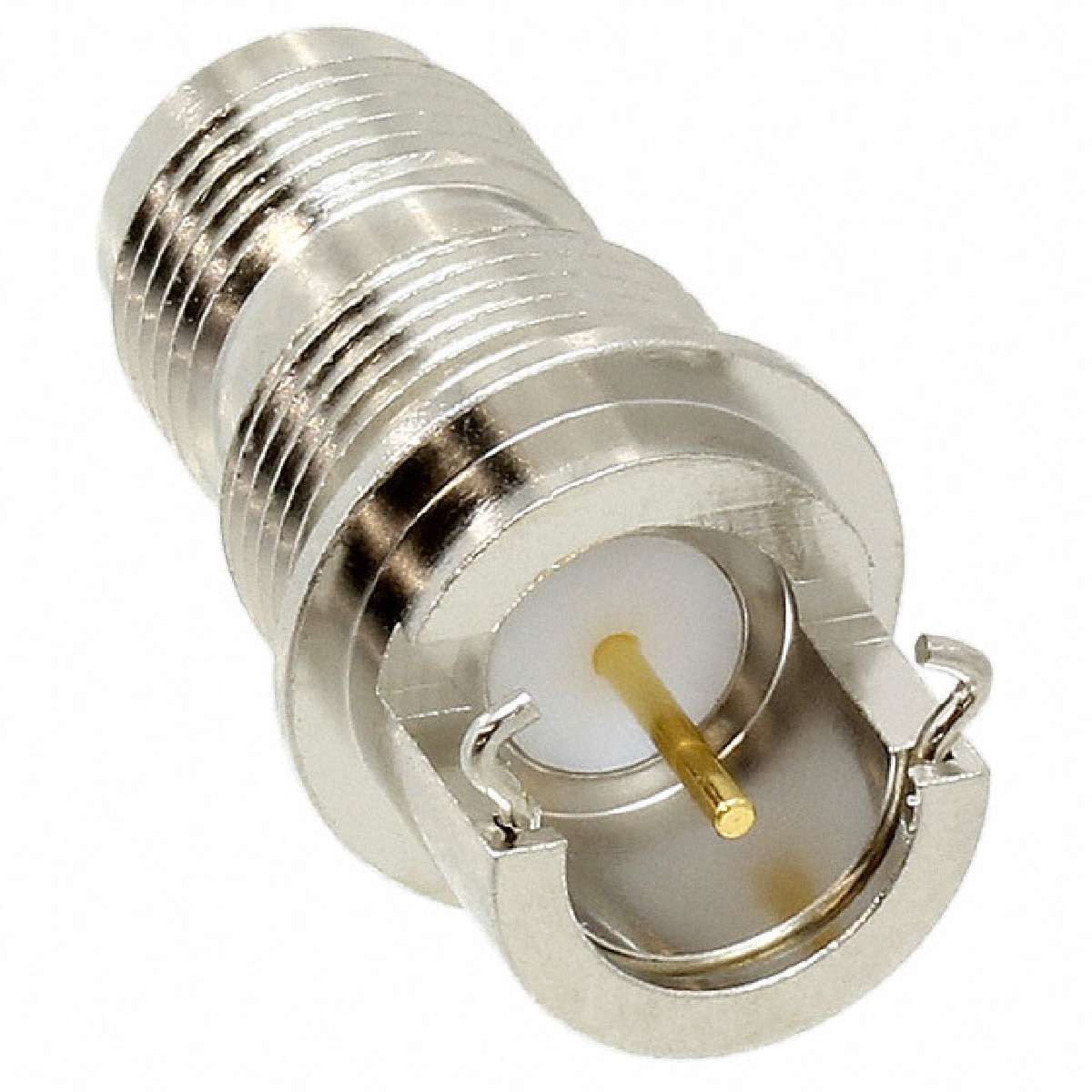

50 Ohms Straight Gold Plated Contact RF Connector/Coaxial TNC Jack
|
||
| 标准包装：50 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Voltage Rating | 500V |
|---|---|
| Connector Style | TNC |
| Ingress Protection | Weatherproof |
| Center Contact Material | Phosphor Bronze |
| Center Contact Plating | Gold |
| Body Finish | Nickel |
| Packaging | Bulk |
| Housing Color | Silver |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Part Status | Active |
| Series | V-Bite® |
| Operating Temperature | -55°C ~ 200°C |
| ECCN | EAR99 |
| Impedance | 50 Ohm |
| Shield Termination | Solder |
| Contact Termination | Solder |
| Body Material | Brass |
| Manufacturer | Winchester Electronics |
| Mounting Type | Board Edge, End Launch; Panel Mount, Bulkhead |
| Fastening Type | Threaded |
| Frequency - Max | 18GHz |
| Features | Flange |
| Category | Connectors, Interconnects |
| Family | Coaxial Connectors (RF) |
| Connector Type | Jack, Female Socket |
