| 597-2901-607F | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

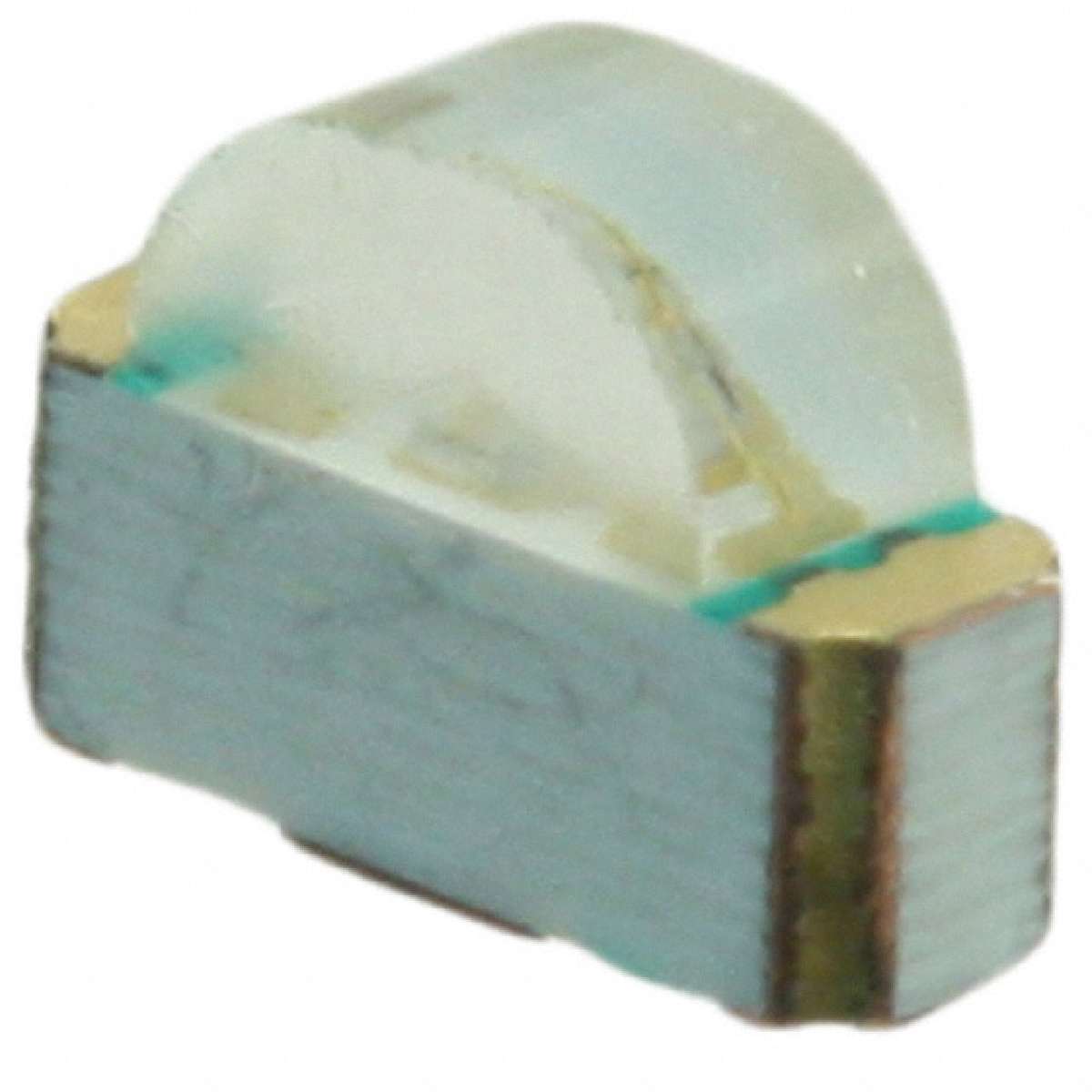

SMD 1208 RT ANG INGAN B 7 RL
|
||
| 标准包装：3000 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Width: | 1.5 mm |
|---|---|
| Viewing Angle: | 130 deg |
| Luminous Intensity: | 125 mcd |
| Wavelength/Color Temperature: | 470 nm |
| Package / Case: | 1208 |
| Height: | 1 mm |
| Mounting Style: | SMD/SMT |
| Orientation: | Side View |
| If - Forward Current: | 20 mA |
| Peak Wavelength: | 468 nm |
| Brand: | Dialight |
| Product Category: | Standard LEDs - SMD |
| Maximum Operating Temperature: | + 80 C |
| Packaging: | Reel |
| Power Rating: | 76 mW |
| Minimum Operating Temperature: | - 20 C |
| LED Size: | 3 mm x 2 mm x 1 mm |
| Illumination Color: | Blue |
| Lens Shape: | Semitube |
| Vf - Forward Voltage: | 3.2 V |
| Length: | 3 mm |
| Manufacturer: | Dialight |
| Factory Pack Quantity: | 3000 |
| RoHS: | Details |
| Wavelength: | 470 nm |
| ECCN | ECL99 |
