| H22A1 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

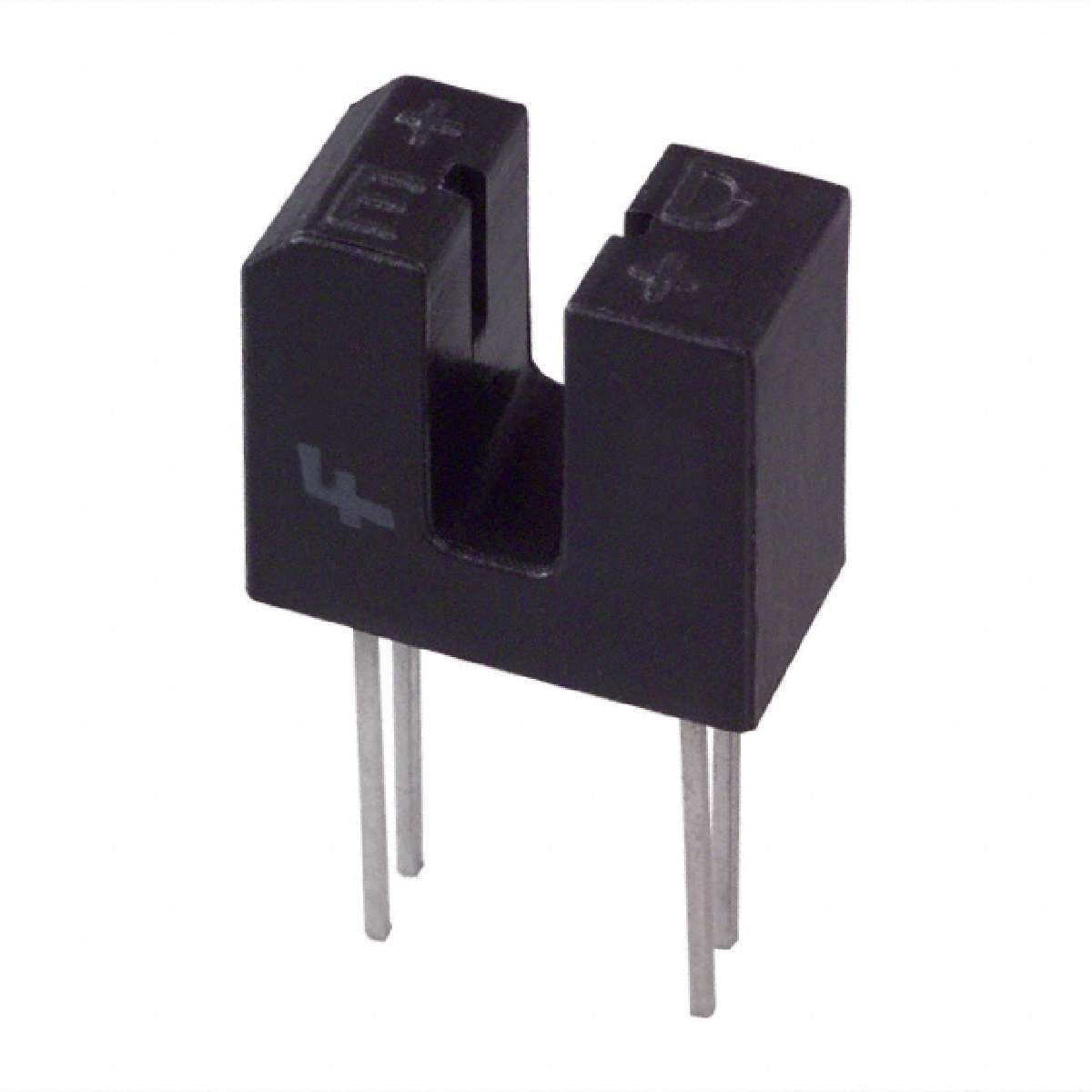

Single Channel 30 V 50 mA 75 mW Transistor Sensor Slotted Interrupter Switch
|
||
| 标准包装：75 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Output Configuration | Phototransistor |
|---|---|
| Type | Unamplified |
| Standard Package | 50 |
| Packaging | Tube |
| Sensing Distance | 0.118" (3mm) |
| Current - DC Forward (If) (Max) | 60mA |
| Mounting Type | Through Hole |
| ECCN | EAR99 |
| Package / Case | PCB Mount |
| PCN Obsolescence/ EOL | Multiple Devices 03/Dec/2009 |
| Sensing Method | Transmissive |
| Response Time | 8µs, 50µs |
| Voltage - Collector Emitter Breakdown (Max) | 30V |
| Family | Optical Sensors - Photointerrupters - Slot Type - Transistor Output |
| Operating Temperature | -55°C ~ 100°C |
