| FKA2-25489QBMT3F | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

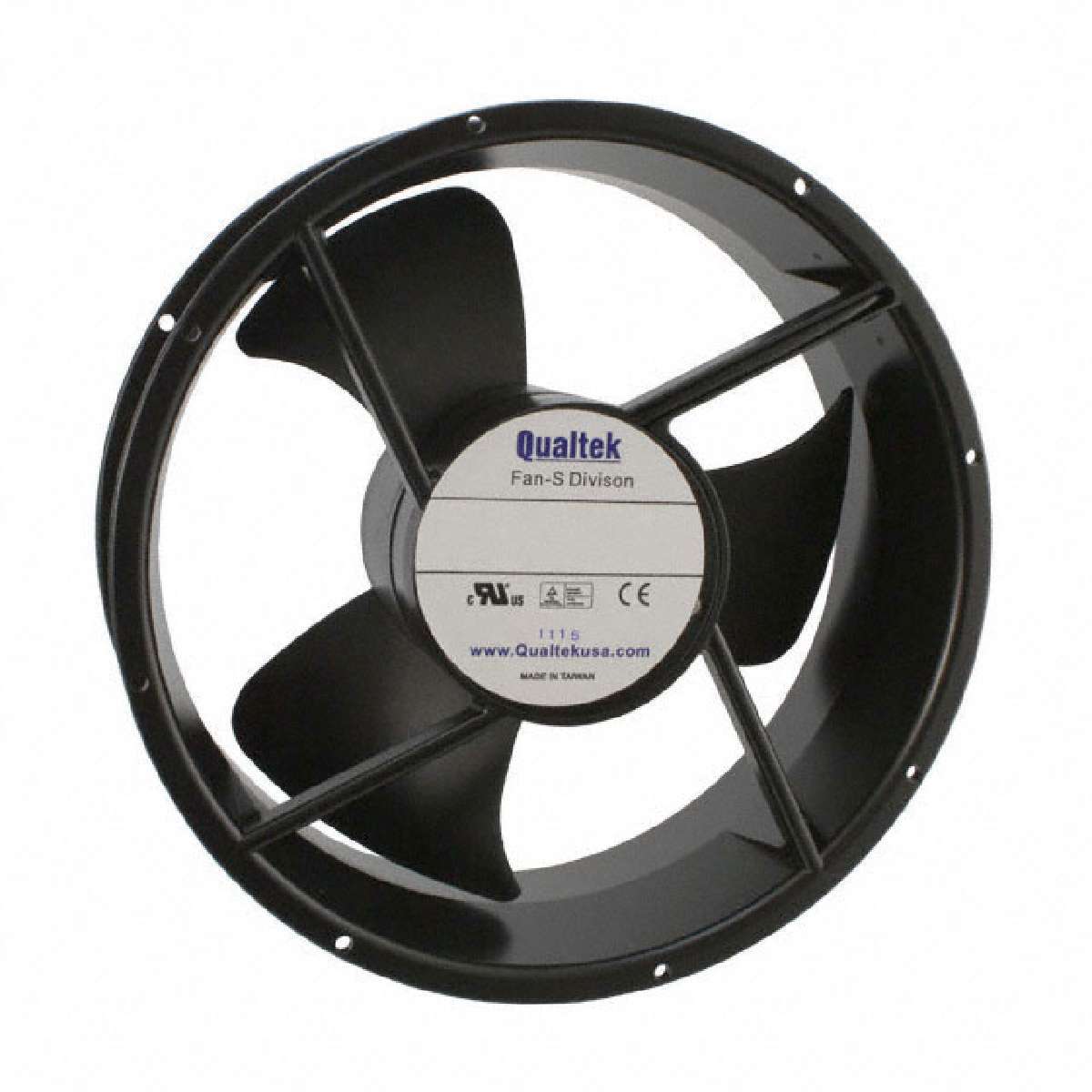

FAN AXIAL 254X89MM 230VAC TERM
|
||
| 标准包装：6 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Termination | 2 Terminals |
|---|---|
| Material - Blade | Plastic |
| Size / Dimension | Round - 254mm Dia x 89mm W |
| Air Flow | 530.0 CFM (15.01m³/min) |
| Voltage - Rated | 230VAC |
| Noise | 57 dB(A) |
| Family | AC Fans |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Fan Type | Tubeaxial |
| Static Pressure | 0.322 in H2O (80.2 Pa) |
| Standard Package | 6 |
| Material - Frame | Aluminum |
| Weight | 4.4 lbs (2kg) |
| Series | FKA2-25489 |
| Power (Watts) | 28.8W |
| RPM | 1600 RPM |
| Bearing Type | Ball |
| Current Rating | 0.140A |
