| A3-10DA-2SV(71) | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

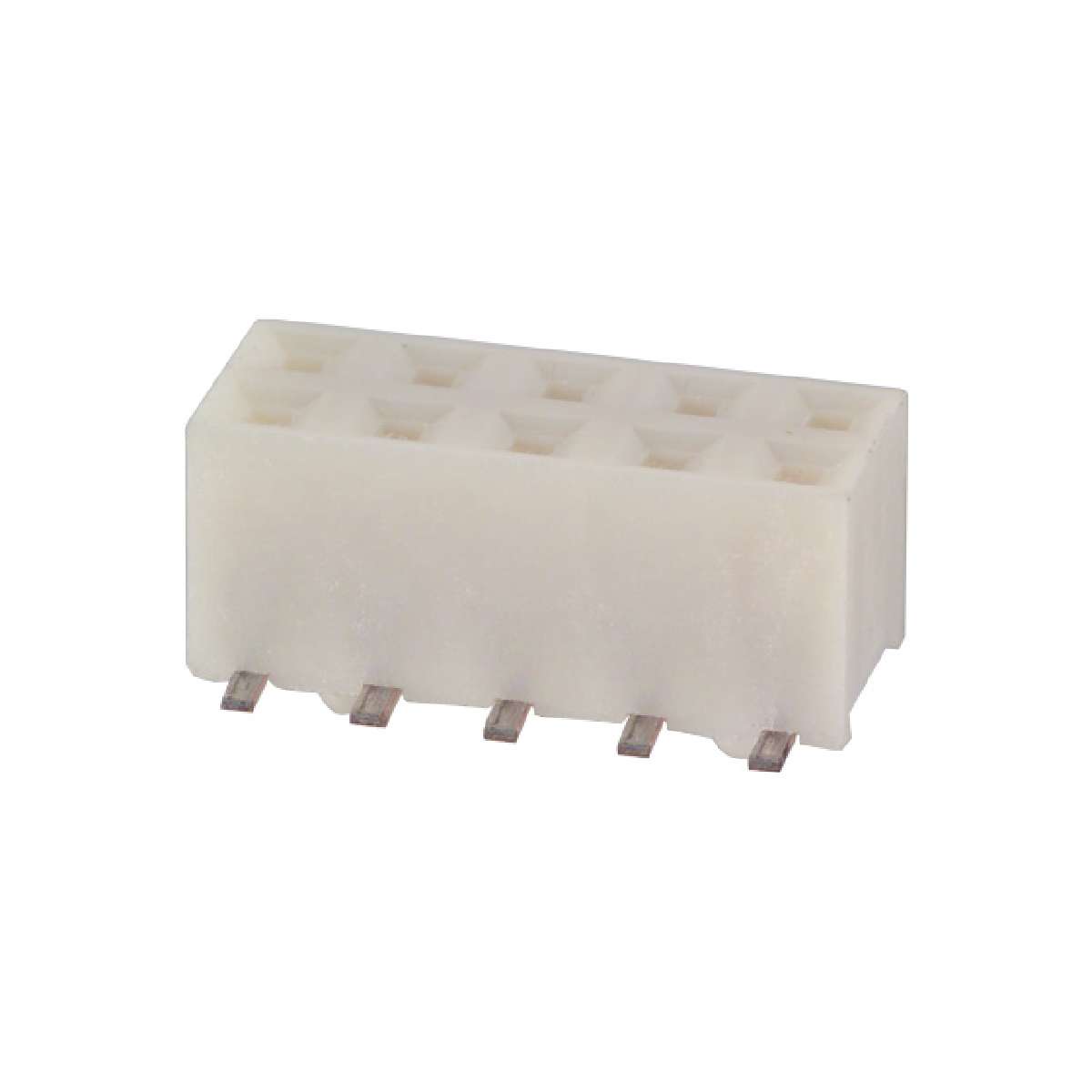

Hirose A3系列 10路 2mm节距 (2行) 直 表面贴装 PCB 插座, 板对线
|
||
| 标准包装：1 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Product: | Headers |
|---|---|
| Packaging: | Tube |
| Manufacturer: | Hirose Electric |
| Series: | A3 |
| Factory Pack Quantity: | 1 |
| RoHS: | Details |
| Number of Positions: | 10 Position |
| Contact Material: | Phosphor Bronze |
| Number of Rows: | 2 Row |
| Contact Gender: | Socket (Female) |
| Insulation Resistance: | 1000 MOhms |
| ECCN | ECL99 |
| Mounting Angle: | Vertical |
| Housing Material: | Polyphenylene Sulfide (PPS) |
| Voltage Rating: | 200 V |
| Operating Temperature Range: | - 55 C to + 85 C |
| Brand: | Hirose Connector |
| Pitch: | 2 mm |
| Termination Style: | SMD |
| Product Category: | Headers & Wire Housings |
| Current Rating: | 1 A |
| Contact Plating: | Gold |
| Type: | Socket Assembly |
| 数据手册： |
|---|
