| ACTPAT254-01-IP | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

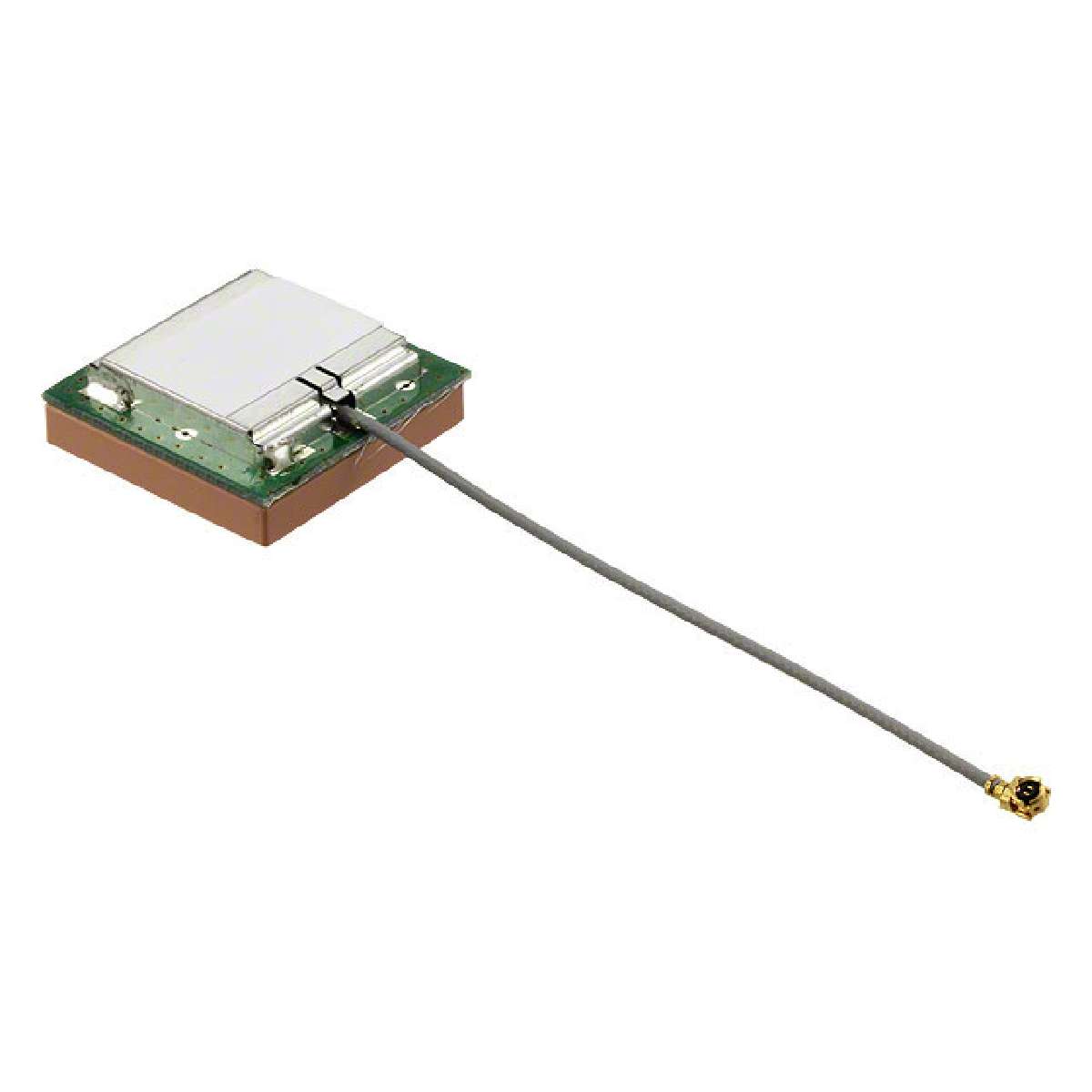

ANT GPS CERAMIC U.FL
|
||
| 标准包装：25 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Termination | Cable (63mm) - U.FL |
|---|---|
| Gain | 5dBic |
| Antenna Type | Ceramic Patch |
| Features | LNA |
| Frequency (Center/Band) | 1.575GHz |
| Manufacturer | Inventek Systems |
| Mounting Type | Surface Mount |
| Height (Max) | 0.327" (8.30mm) |
| Frequency Range | 1.573GHz ~ 1.588GHz |
| VSWR | 2 |
| Number of Bands | 1 |
| Frequency Group | UHF (1 GHz ~ 2 GHz) |
| Part Status | Active |
| Category | RF/IF and RFID |
| Family | RF Antennas |
| Applications | GPS |
| Return Loss | -10dB |
| Packaging | Tray |
