| BXRA-56C2600-B-04 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

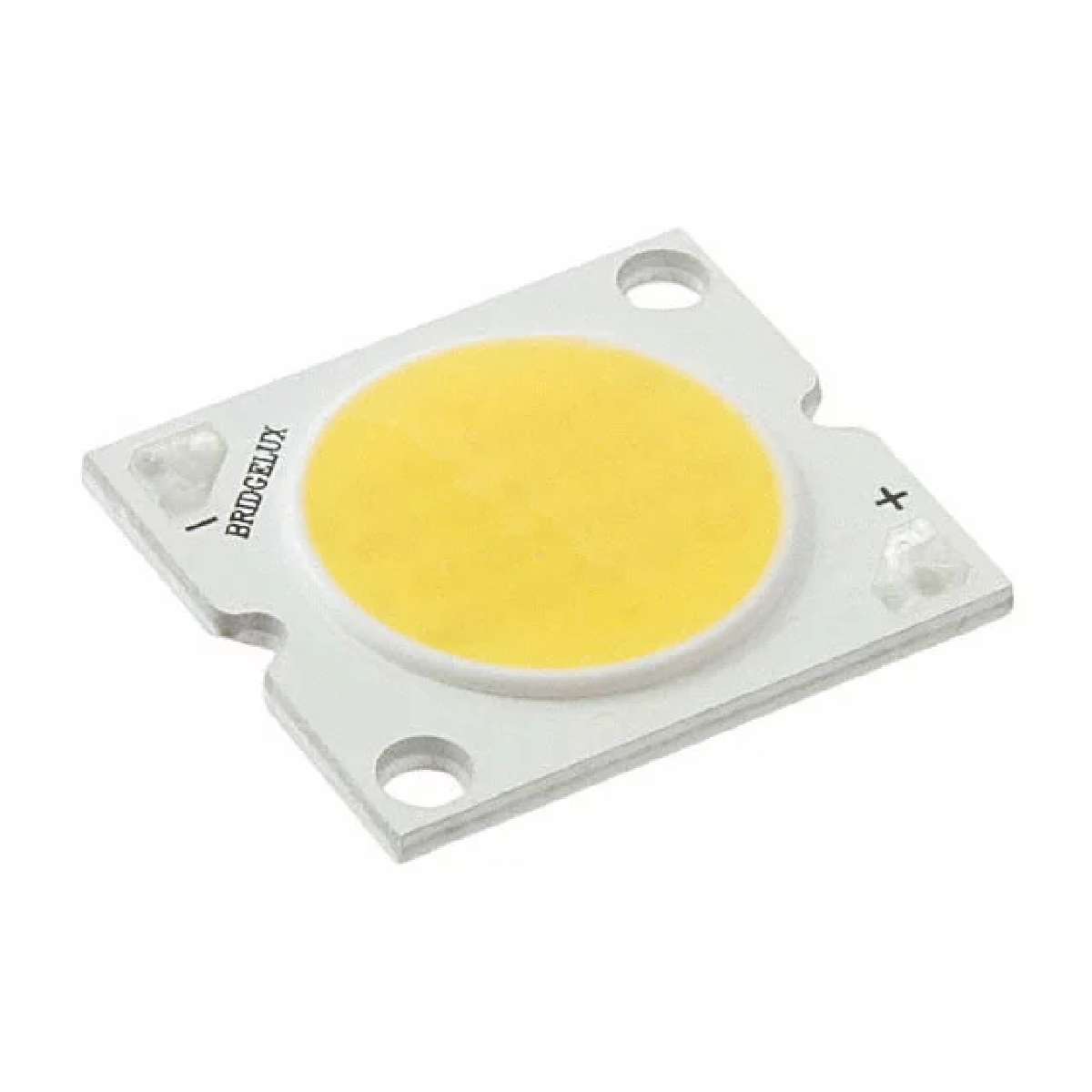

LED ARRAY ES RECT 2600LM WHITE
|
||
| 标准包装：200 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| CRI (Color Rendering Index) | 70 |
|---|---|
| Viewing Angle | 120° |
| Height | 3.00mm |
| CCT (K) | 5600K 4-Step MacAdam Ellipse |
| Size / Dimension | 22.80mm L x 25.80mm W |
| Temperature - Test | 25°C |
| Category | Optoelectronics |
| Current - Test | 700mA |
| Current - Max | 750mA |
| Flux @ Current/Temperature - Test | 3150 lm (Typ) |
| Lens Type | Domed |
| Type | Chip On Board (COB) |
| Configuration | Rectangle |
| Color | White, Cool |
| Part Status | Obsolete |
| Manufacturer | Bridgelux |
| Voltage - Forward (Vf) (Typ) | 36.2V |
| Series | ES |
| Family | LED Lighting - COBs, Engines, Modules |
| Lumens/Watt @ Current - Test | 124 lm/W |
