| B65513JR87 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

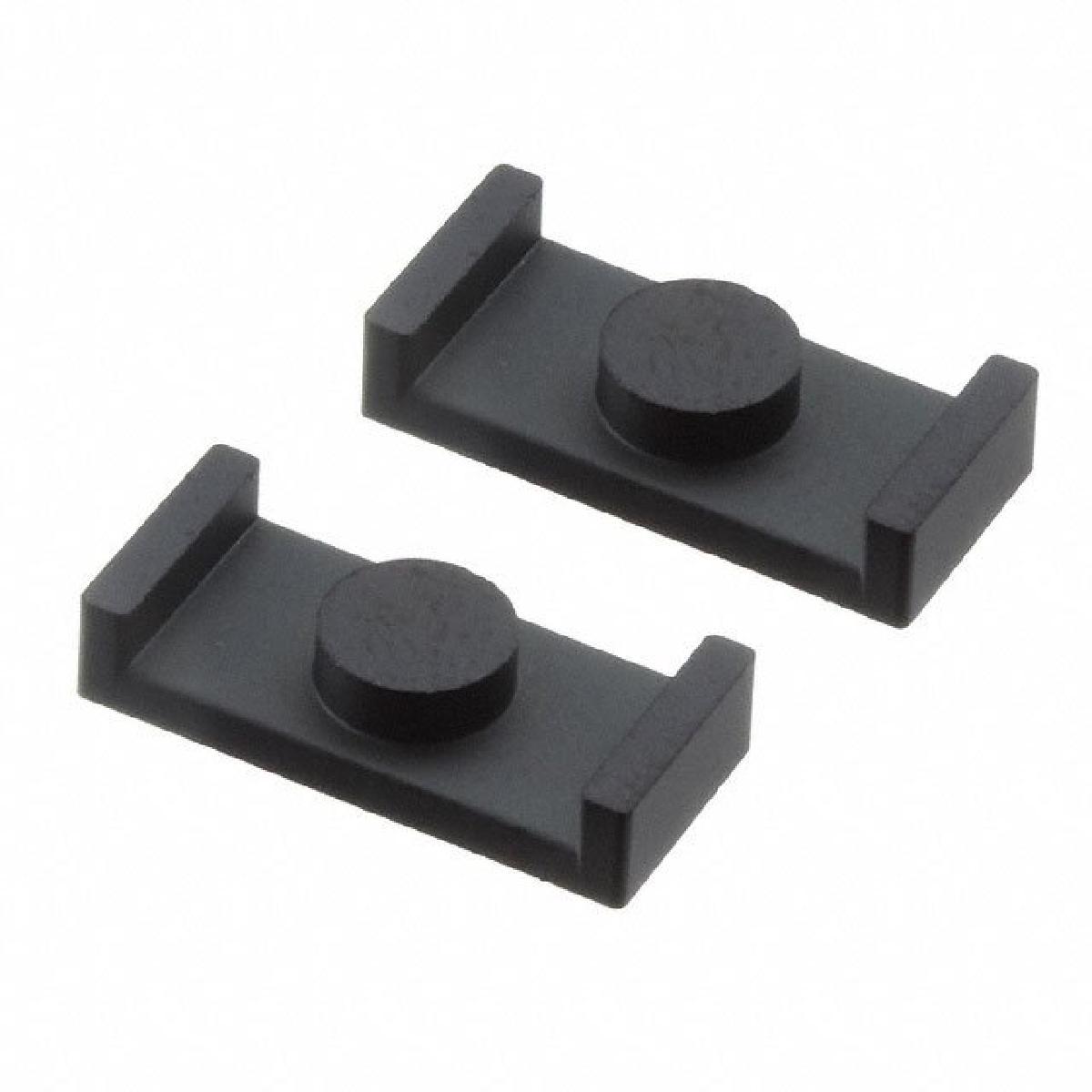

FERRITE CORE ER 1.5UH N87
|
||
| 标准包装：920 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Tolerance | ±30% |
|---|---|
| Effective Permeability (µi) | 1250 |
| Material | N87 |
| Height | 2.95mm |
| Core Type | ER |
| Core Factor (ΣI/A) mm | 1.1 |
| Series | B65513 |
| Family | Ferrite Cores |
| Width | 6.7mm |
| Initial Permeability (µi) | 2200 |
| Supplier Device Package | ER 14.5 x 6 |
| Finish | Uncoated |
| Standard Package | 920 |
| Effective Magnetic Volume (Ve) mm³ | 333 |
| Length | 14.5mm |
| Inductance Factor (Al) | 1.5µH |
| Effective Length (le) mm | 19 |
| Effective Area (Ae) mm² | 17.6 |
