| AST612Q | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

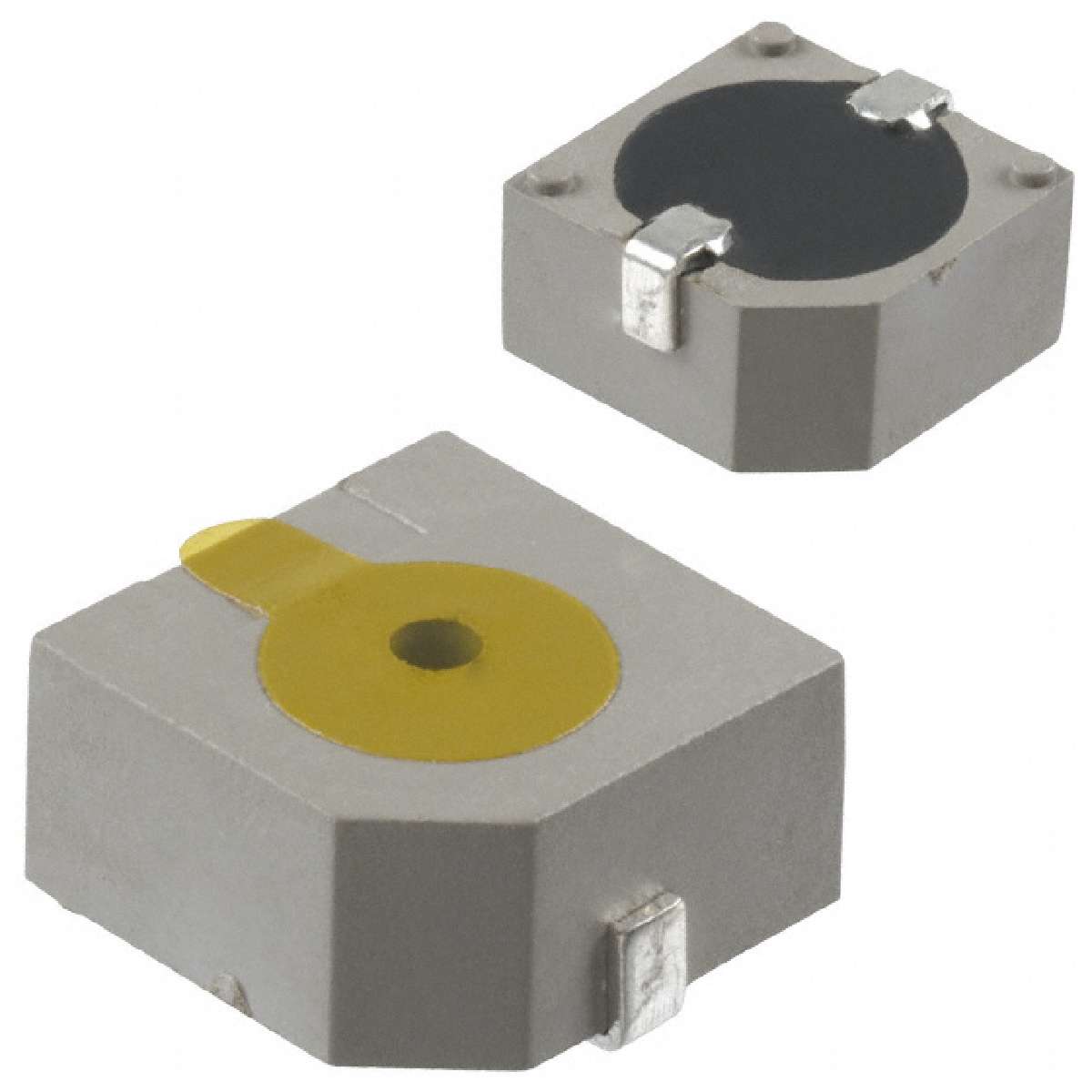

Magnetic Transducer External Drive 12.6 x 12.6 mm 12 V 87 dB 2.4 kHz Buzzer
|
||
| 标准包装：51 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Termination | Solder Pads |
|---|---|
| Sound Pressure Level | 87dB @ 12V, 10cm |
| Voltage Range | 8 ~ 16V |
| Packaging | Tube |
| Washable | Yes |
| Family | Buzzers |
| Mounting Type | Surface Mount |
| Operating Temperature | -30°C ~ 85°C |
| Technology | Magnetic |
| Input Type | peak-peak Signal |
| Kits | 458-KIT-ND - BUZZER KIT SMD |
| Standard Package | 25 |
| Size / Dimension | Square - 12.60mm L x 12.60mm W x 7.20mm H |
| Voltage - Rated | 12Vp-p |
| Series | AST |
| Operating Mode | Continuous |
| Frequency | 2.4kHz |
| Current - Supply | 50mA |
| Driver Circuitry | Transducer, Externally Driven |
| ECCN | EAR99 |
