| ALQ105 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

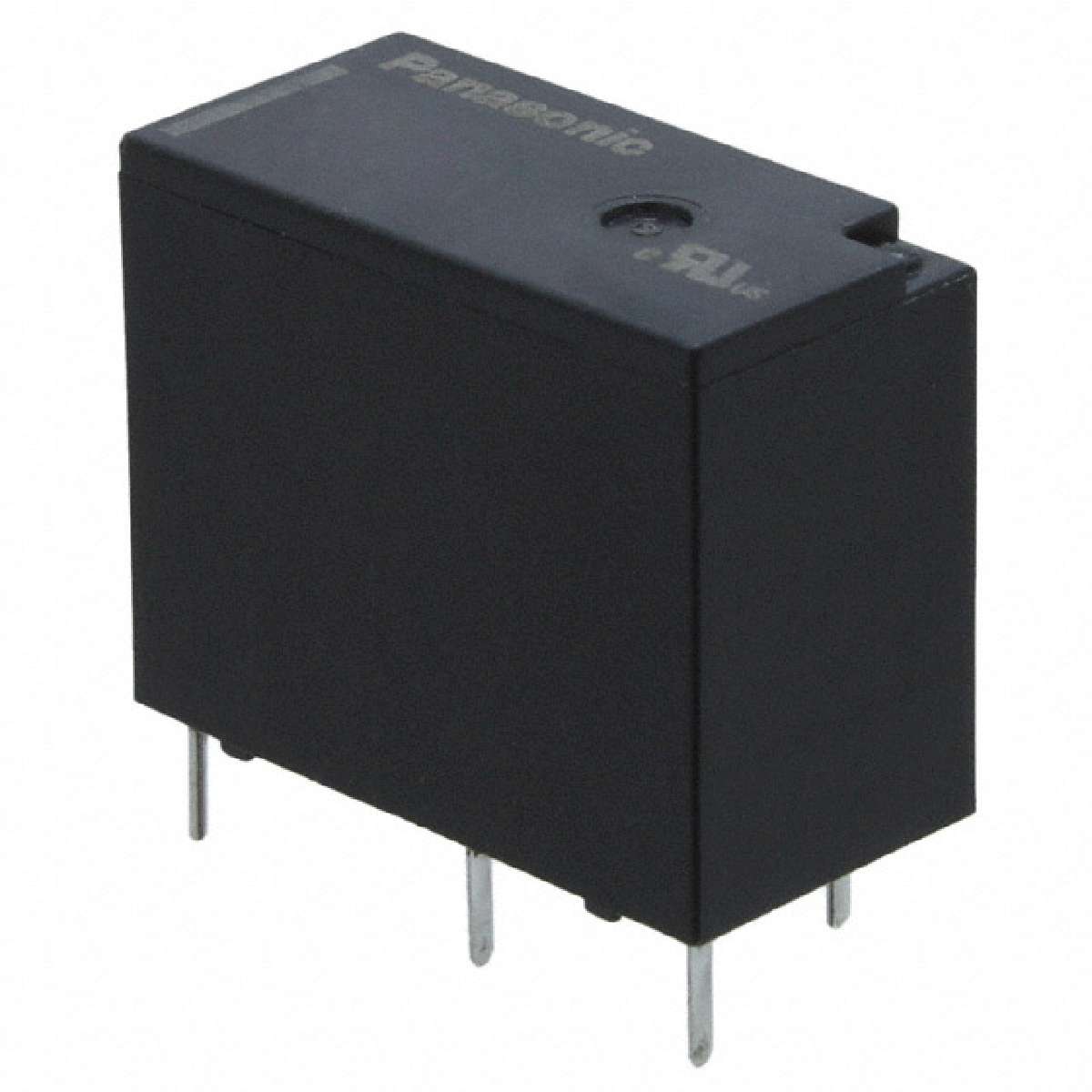

ALQ Series SPDT 10 A 5 V PC Pin Through Hole Non Latching Miniature Power Relay
|
||
| 标准包装：1 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| 释放时间 | 20ms |
|---|---|
| 端子类型 | PC 引脚 |
| 继电器类型 | 通用 |
| 线圈功率 | 400 mW |
| 安装类型 | 通孔 |
| 特性 | 绝缘 - B 类 |
| 触头材料 | 银镍（AgNi） |
| 工作时间 | 20ms |
| 线圈电压 | 5VDC |
| 关闭电压（最小值） | 0.25 VDC |
| 触头外形 | SPDT（1 C 型） |
| 导通电压（最大值） | 3.75 VDC |
| 线圈类型 | 无锁存 |
| 工作温度 | -40°C ~ 85°C |
| 线圈电阻 | 62.5 欧姆 |
| 开关电压 | 250VAC - 最小值 |
| 额定接触（电流） | 10A |
| 线圈电流 | 80mA |
| 数据手册： |
|---|
Supplier Stock
Offline Manufacture or Manufacture authorized supplier owned stock and price , need double confirmation and share out from them
| stock | 344 | Update On 2025-05-27 |
|---|---|---|
| Lead-Time | -- | |
| SPQ/MOQ | 1/1 | |
| Location | -- | |
| DateCode | -- |
Supplier Code:SP1036
Offline Manufacture or Manufacture authorized supplier owned stock and price , need double confirmation and share out from them
$0.38576
￥3.203989957370522
| 1+ | $0.38576 |
|---|---|
| 100+ | $0.35687 |
| stock | 45 | Update On 2025-05-09 |
|---|---|---|
| Lead-Time | -- | |
| Supplier SPQ/MOQ | 100/1 | |
| Location | -- | |
| DateCode | -- |
Supplier Code:SP1038
Offline Manufacture or Manufacture authorized supplier owned stock and price , need double confirmation and share out from them
$0.64173
￥5.32998
| stock | 45 | Update On 2024-04-24 |
|---|---|---|
| Lead-Time | -- | |
| Supplier SPQ/MOQ | 1/1 | |
| Location | -- | |
| DateCode | -- |
Supplier Code:SP1034
Offline Manufacture or Manufacture authorized supplier owned stock and price , need double confirmation and share out from them
$1.47896
￥12.28372001205682
| 1+ | $1.47896 |
|---|---|
| 25+ | $1.44977 |
| 50+ | $1.42058 |
| stock | 116 | Update On 2025-05-21 |
|---|---|---|
| Lead-Time | -- | |
| Supplier SPQ/MOQ | 1/1 | |
| Location | -- | |
| DateCode | -- |
Supplier Code:SP1027
Offline Manufacture or Manufacture authorized supplier owned stock and price , need double confirmation and share out from them
$2.0553
￥17.07059997416395
See more prices
| 100+ | $2.0553 |
|---|---|
| 300+ | $1.96866 |
| 500+ | $1.91828 |
| 1000+ | $1.84373 |
| 2500+ | $1.83365 |
| stock | 1200 | Update On 2025-05-09 |
|---|---|---|
| Lead-Time | 0Weeks | |
| Supplier SPQ/MOQ | 1/100 | |
| Location | -- | |
| DateCode | 2449 |
