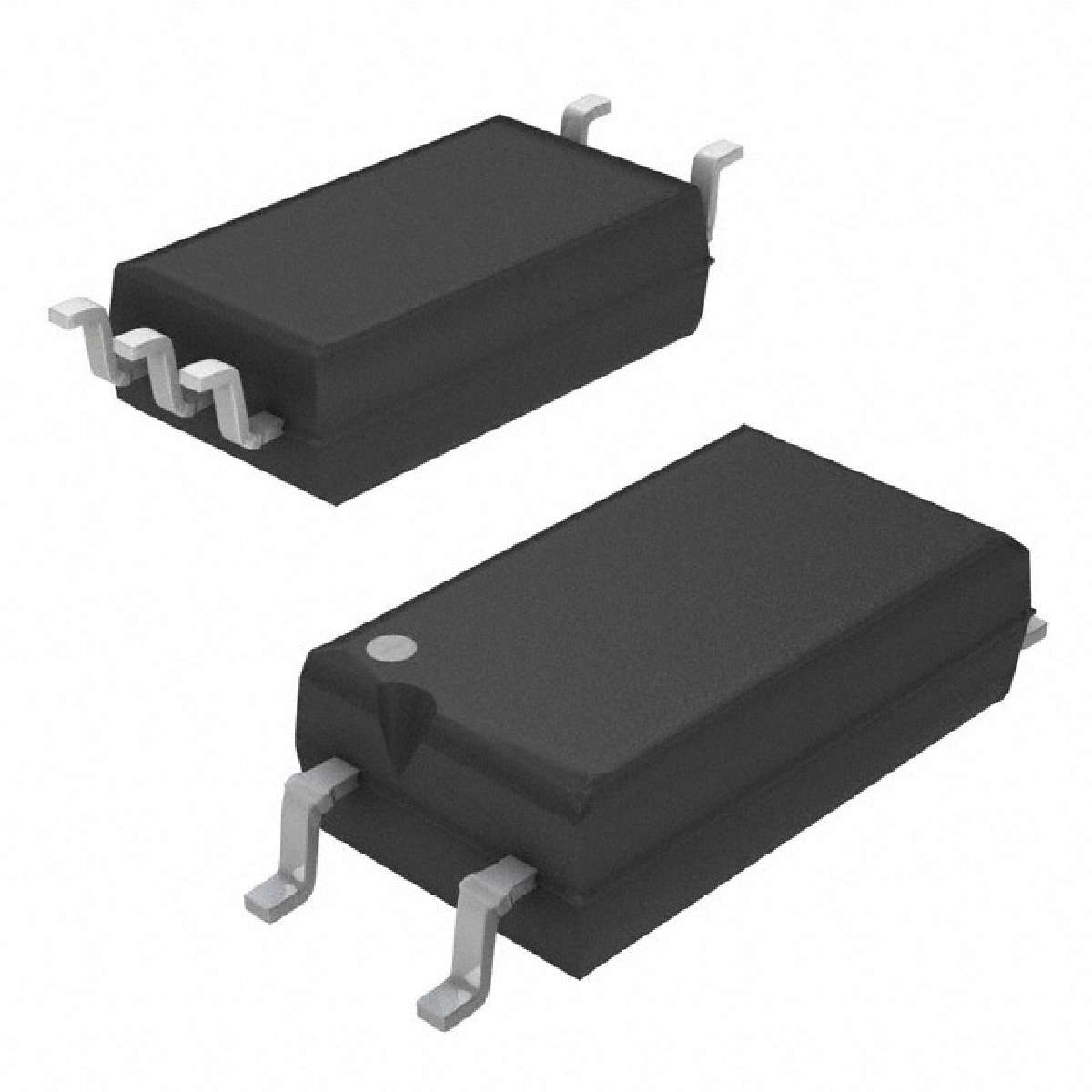

| TCLT1102 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：
OPTOCOUPLER 63-125% SOP6L5 10MA RoHSconf
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Maximum Collector Emitter Saturation Voltage: | 0.3 V |
|---|---|
| Width: | 7.5 mm |
| Isolation Voltage: | 5000 Vrms |
| Pd - Power Dissipation: | 250 mW |
| Package / Case: | SOP-5 |
| Configuration: | 1 Channel |
| Maximum Collector Current: | 50 mA |
| Length: | 4.1 mm |
| Manufacturer: | Vishay |
| Vr - Reverse Voltage: | 6 V |
| Factory Pack Quantity: | 3000 |
| RoHS: | Details |
| Maximum Operating Temperature: | + 100 C |
| Packaging: | Reel |
| Maximum Collector Emitter Voltage: | 70 V |
| Minimum Operating Temperature: | - 40 C |
| Current Transfer Ratio: | 125 % |
| Height: | 2 mm |
| Vf - Forward Voltage: | 1.6 V |
| Number of Channels: | 1 Channel |
| If - Forward Current: | 60 mA |
| Output Type: | NPN Phototransistor |
| Series: | TCLT |
| Brand: | Vishay Semiconductors |
| Product Category: | Transistor Output Optocouplers |
| ECCN | ECL99 |
