| 487951-4 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

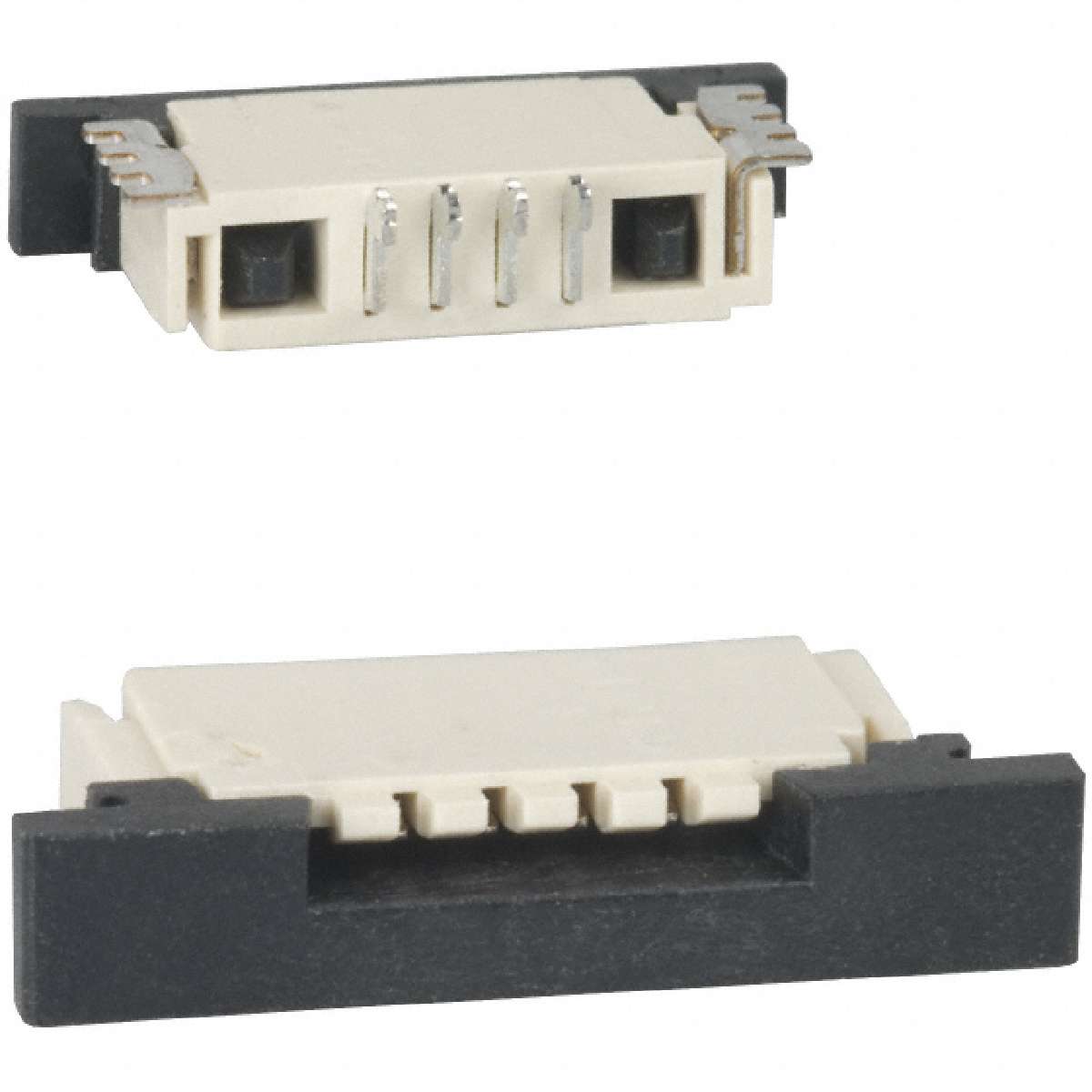

CONN FPC TOP 4POS 1.00MM R/A
|
||
| 标准包装：10500 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Voltage Rating | 200V |
|---|---|
| FFC, FCB Thickness | 0.30mm |
| Mounting Type | Surface Mount, Right Angle |
| Locking Feature | Slide Lock |
| Height Above Board | 0.101" (2.56mm) |
| Cable End Type | Straight |
| Standard Package | 10,500 |
| Packaging | Tape & Reel (TR) |
| Series | AMP |
| Family | FFC, FPC (Flat Flexible) Connectors |
| 3D Model | 487951-4.pdf |
| Pitch | 0.039" (1.00mm) |
| Contact Finish | Tin-Lead |
| Housing Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Connector/Contact Type | Contacts, Top |
| Material Flammability Rating | UL94 V-0 |
| Termination | Solder |
| Flat Flex Type | FPC |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Contact Material | Phosphor Bronze |
| Number of Positions | 4 |
| Operating Temperature | -40°C ~ 85°C |
| Current Rating | 1A |
