| 46208000000 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

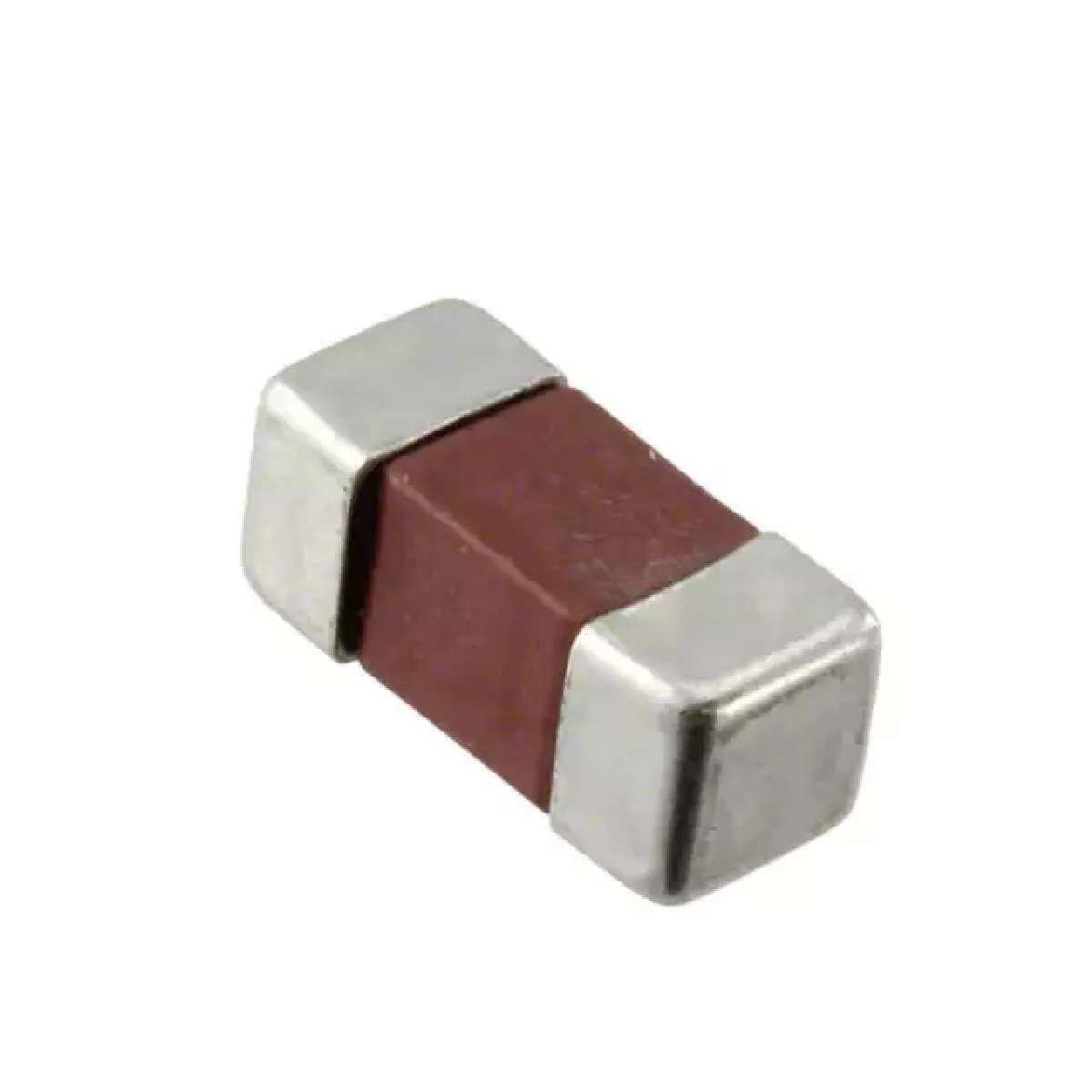

FUSE BOARD MNT 800MA 350VAC/VDC
|
||
| 标准包装：1500 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Package / Case | Nonstandard SMD |
|---|---|
| Voltage Rating - AC | 350V |
| Approvals | UL, UMF |
| Packaging | Tape & Reel (TR) |
| Response Time | Slow |
| Series | NANO虏庐 462 |
| Mounting Type | Surface Mount |
| Breaking Capacity @ Rated Voltage | 100A |
| Melting I虏t | 1.4 |
| Voltage Rating - DC | 350V |
| Size / Dimension | 0.413" L x 0.177" W x 0.177" H (10.50mm x 4.50mm x 4.50mm) |
| Fuse Type | Board Mount (Cartridge Style Excluded) |
| DC Cold Resistance | 0.13 Ohm |
| Family | Fuses |
| Operating Temperature | -40掳C ~ 85掳C |
| Current Rating | 800mA |
