| 420AS16056 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

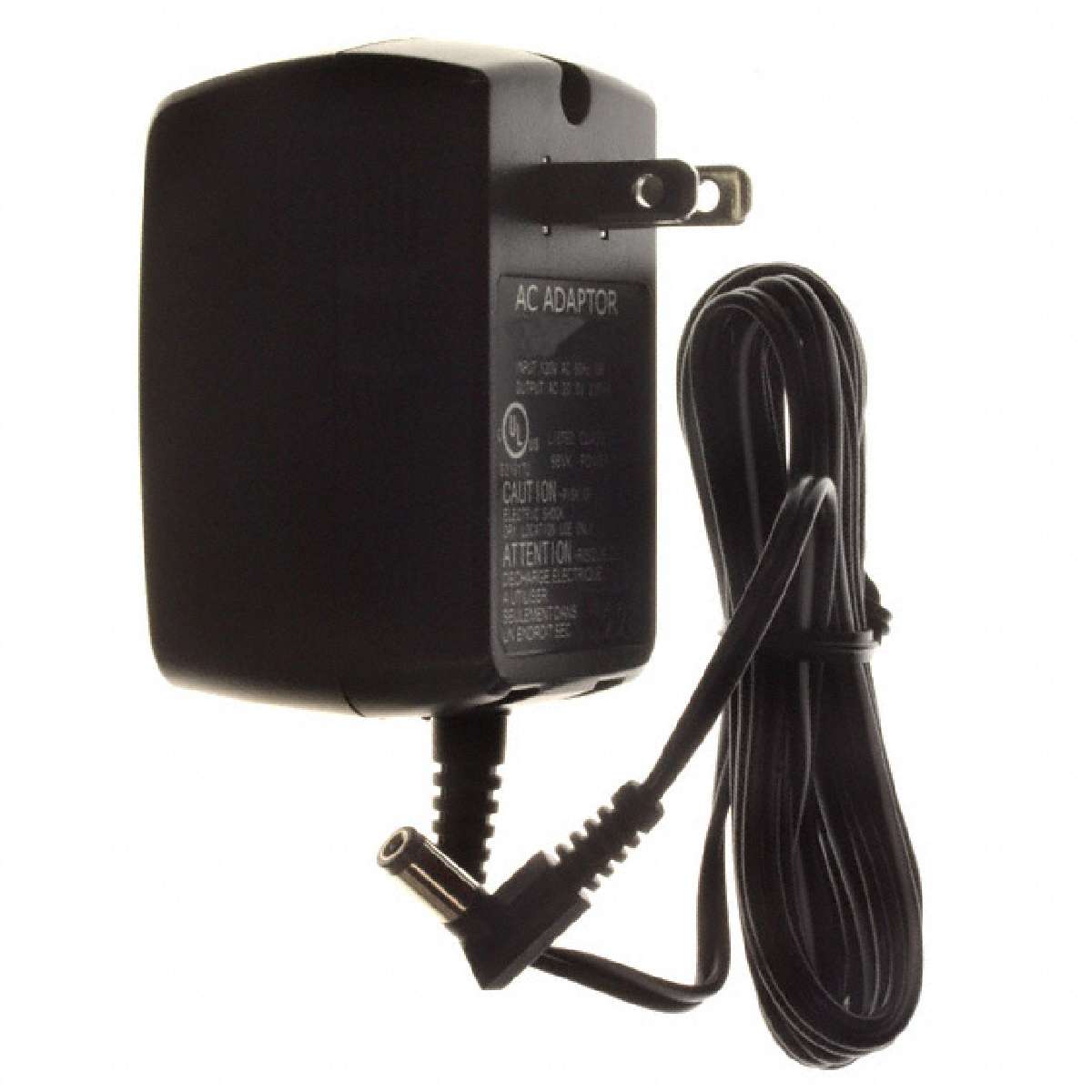

AC/AC WALL MOUNT ADAPTER 16V 9W
|
||
| 标准包装：80 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Cord Length | 72" (1.83m) |
|---|---|
| Current - Output (Max) | 560mA |
| Input Connector | NEMA 1-15P |
| Region Utilized | North America |
| Approvals | cULus |
| Form | Wall Mount (Class II) |
| Power (Watts) | 9W |
| Applications | ITE (Commercial) |
| Power (Watts) - Max | 9W |
| Voltage - Input | 120VAC |
| Output Connector | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.5mm |
| Standard Package | 80 |
| Voltage - Output | 16VAC |
| Size / Dimension | 1.83" L x 2.05" W x 2.84" H (46.5mm x 52.0mm x 72.0mm) |
| Series | 420AS |
| Family | AC AC Wall Adapters |
| Operating Temperature | -10°C ~ 40°C |
| Input Type | Fixed Blade |
