| 194-7MS | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

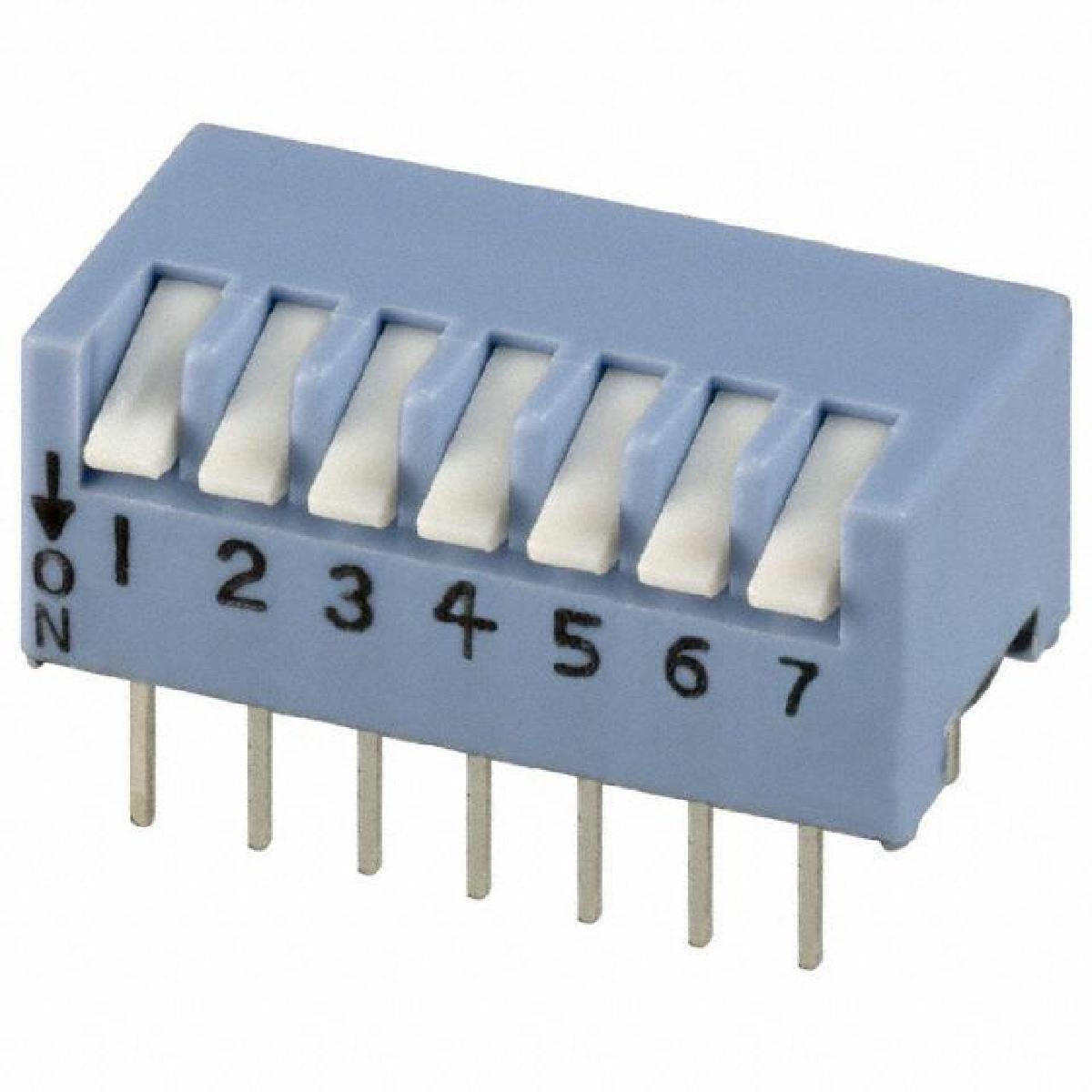

SWITCH PIANO DIP SPST 50MA 24V
|
||
| 标准包装：1000 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Voltage Rating | 24VDC |
|---|---|
| Termination Style | PC Pin |
| Electrical Life | 7,000 Cycles |
| Washable | No |
| Packaging | Tube |
| Circuit | SPST |
| Features | Epoxy Sealed Terminals |
| Category | Switches |
| Length | 0.786" (19.96mm) |
| Series | 194 |
| Operating Temperature | -40°C ~ 85°C |
| Pitch | 0.100" (2.54mm), Full |
| Contact Finish | Gold |
| Body Material | Plastic |
| Manufacturer | CTS Electrocomponents |
| Mounting Type | Through Hole, Right Angle |
| Height Above Board | 0.311" (7.90mm) |
| Actuator Type | Piano |
| Part Status | Active |
| Actuator Level | Raised |
| Number of Positions | 7 |
| Family | DIP Switches |
| Current Rating | 50mA |
