| 172-015-142-011 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

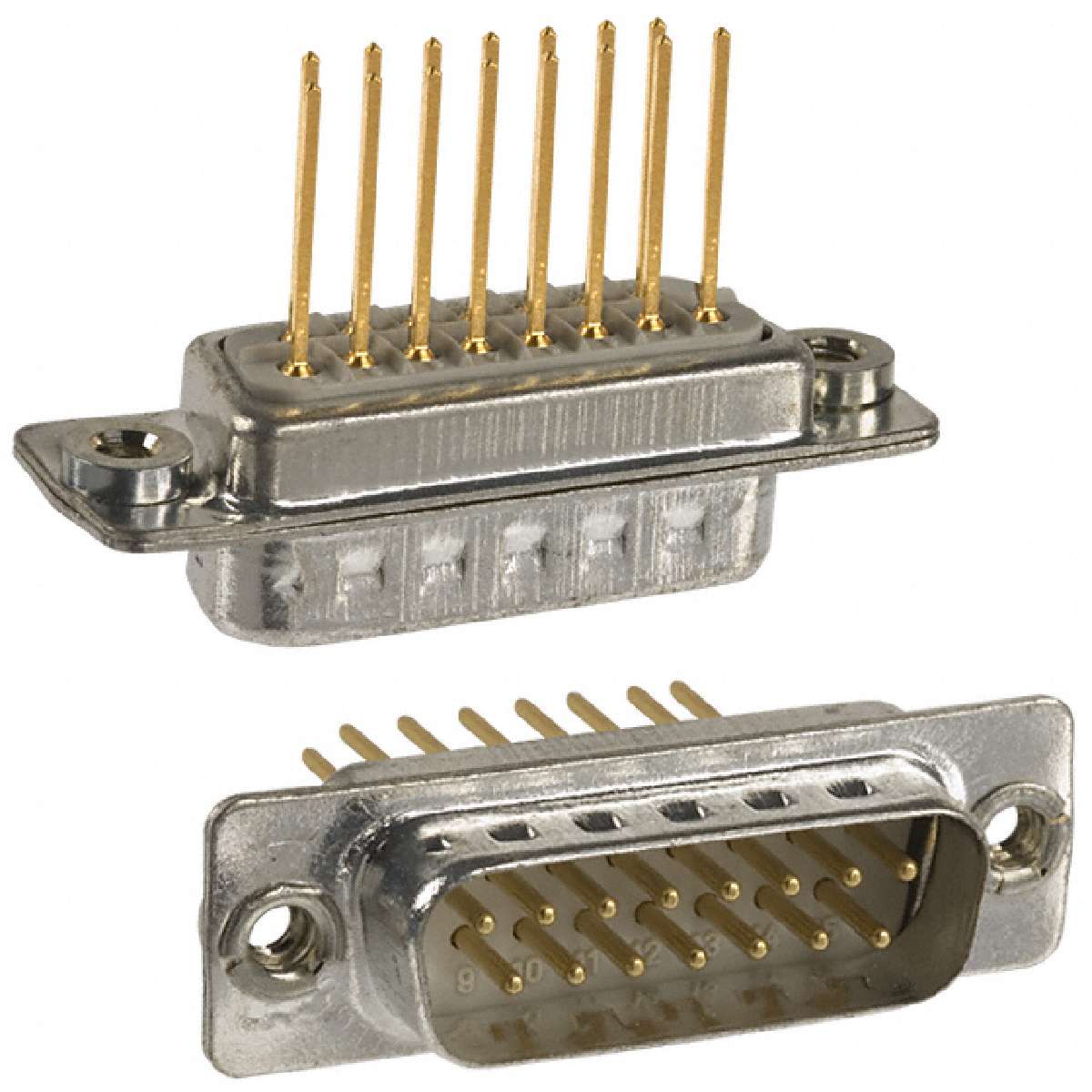

D-Sub Connector Plug, Male Pins 15 Position Through Hole Wire Wrap
|
||
| 标准包装：64 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Connector Style | D-Sub |
|---|---|
| Contact Finish | Gold |
| Housing Material | Polybutylene Terephthalate (PBT) |
| Contact Finish Thickness | Flash |
| Contact Type | Signal |
| Standard Package | 28 |
| Features | Grounding Indents |
| Number of Positions | 15 |
| Family | D-Sub Connectors |
| Connector Type | Plug, Male Pins |
| Number of Rows | 2 |
| Shell Material, Finish | Steel, Tin Plated |
| Shell Size, Connector Layout | 2 (DA, A) |
| Mounting Type | Through Hole |
| Termination | Wire Wrap |
| Catalog Drawings | 170 Series Front Footprint 9,15,25-,37 Position 172 Series Wire Wrap |
| Color | Beige |
| Flange Feature | Board Side (4-40) |
| Series | 172 |
| Operating Temperature | -50°C ~ 100°C |
| Current Rating | 5A |
