| 1609989-4 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

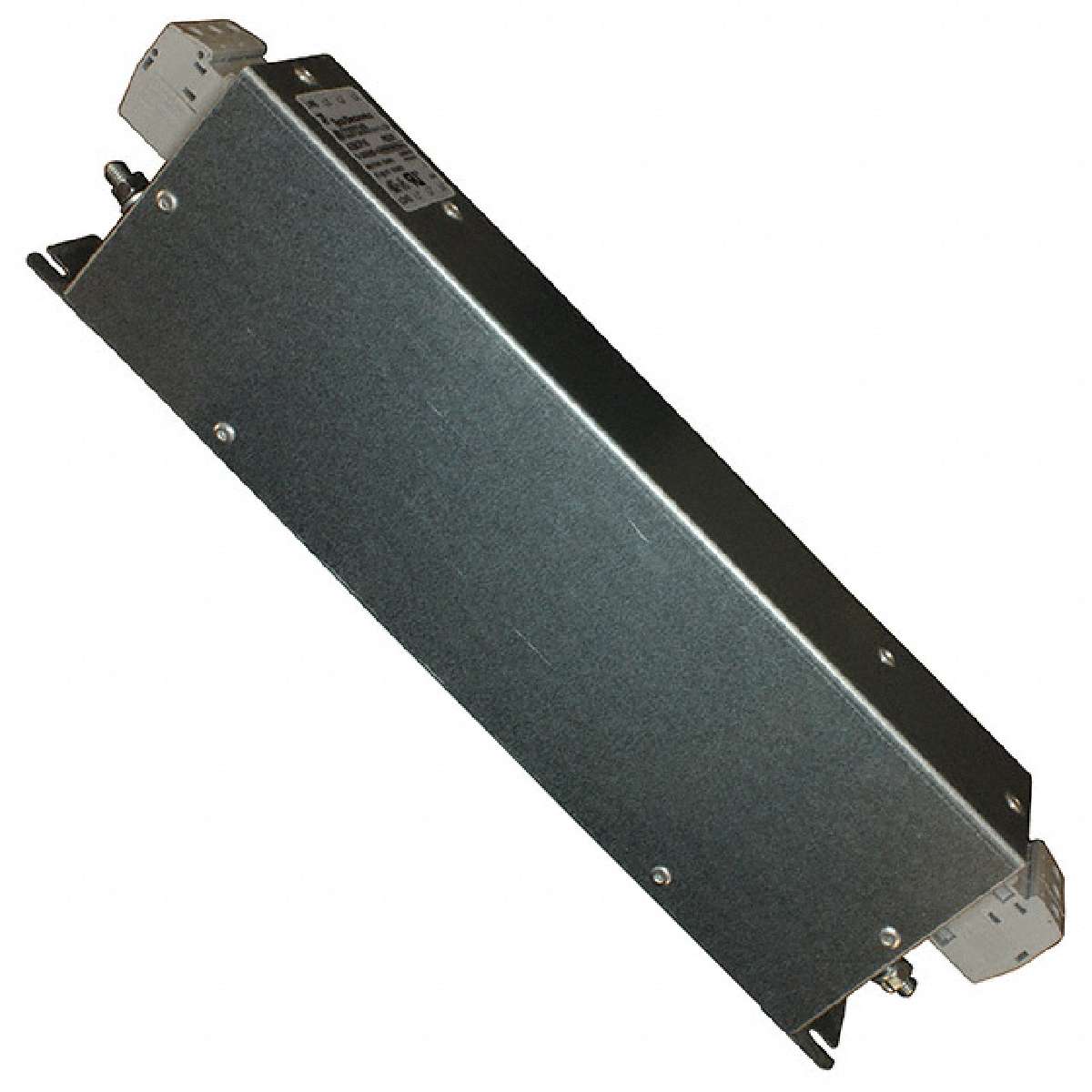

POWER LINE 42A 3-PHASE FLANGE
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Catalog Drawings | 42BCF10 Side (30,42)BCF10 Front |
|---|---|
| Standard Package | 1 |
| Approvals | ENEC, UL, VDE |
| Other Related Documents | Corcom EMI/RFI Filter Selector Chart |
| Frequency - Operating | 50 ~ 60Hz |
| Family | Power Line Filter Modules |
| Mounting Type | Chassis Mount |
| Filter Type | Three Phase (Delta) |
| Current | 42A |
| Configuration | Two Stage |
| Termination Style | Threaded Post (M6) |
| Product Training Modules | BCF Series Power Line Filters |
| Voltage - Rated AC (Phase to Ground/Neutral) | 277V |
| Series | BCF, Corcom |
| Applications | Inverters, Power Drive Systems |
| Voltage - Rated AC (Phase to Phase) | 480V |
| Operating Temperature | -10掳C ~ 50掳C |
