| 1565 WH005 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

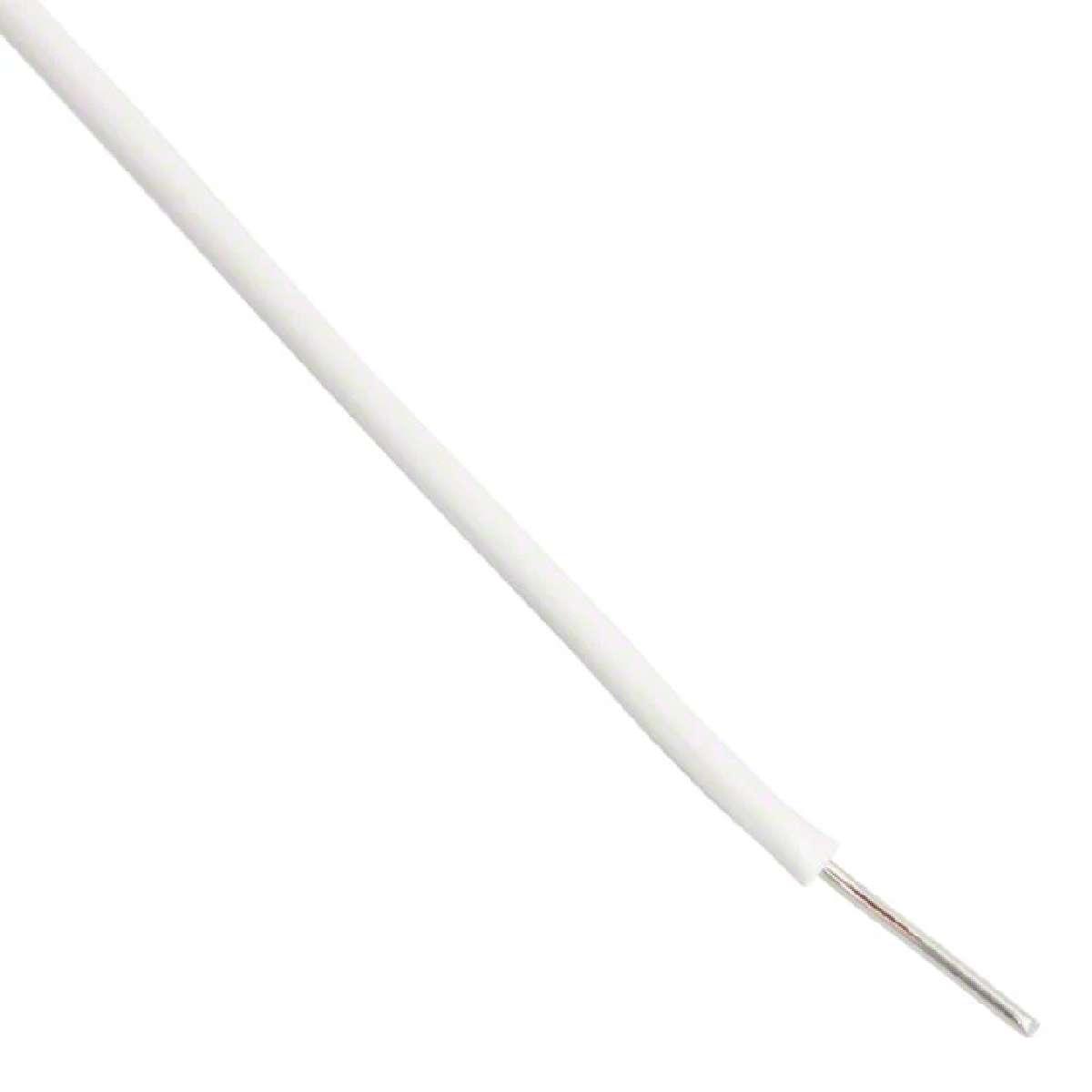

Alpha Wire 内部连线电线 截面积 0.78 白色护套 1000 V, 长 30m, 18 AWG
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Conductor Strand | Solid |
|---|---|
| Jacket Color | White |
| Standard Package | 1 |
| Product Training Modules | Basics of Wire and Cable |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Length | 100' (30.5m) |
| Family | Single Conductor Cables (Hook Up Wire) |
| Conductor Material | Copper, Tinned |
| Jacket (Insulation) Thickness | 0.016" (0.41mm) |
| Cable Type | Hook Up |
| Alternate Length | 1565 WH001-ND - HOOK-UP SOLID 18AWG WHITE 1000' |
| Alternate Color | 1565 VI005-ND - HOOK-UP SOLID 18AWG VIOLET 100' 1565 BR005-ND - HOOK-UP SOLID 20AWG BROWN 100' 1565 YL005-ND - HOOK-UP SOLID 18AWG YELLOW 100' 1565 SL005-ND - HOOK-UP SOLID 18AWG SLATE 100' 1565 RD005-ND - HOOK-UP SOLID 18AWG RED 100' 1565 OR005-ND - HOO |
| Jacket (Insulation) Diameter | 0.072" (1.83mm) |
| Voltage | 1000V |
| Series | MIL-W-76B Type MW, 1565 |
| Wire Gauge | 18 AWG |
| Operating Temperature | -40°C ~ 80°C |
登录之后就可发表评论
Availability2Request Stock Notification
Supplier Code:SP1034
Offline Manufacture or Manufacture authorized supplier owned stock and price , need double confirmation and share out from them
$103.03097
￥855.7389521974746
| 1+ | $103.03097 |
|---|---|
| 50+ | $101.22675 |
| stock | 120 | Update On 2025-07-09 |
|---|---|---|
| Lead-Time | -- | |
| Supplier SPQ/MOQ | 1/1 | |
| Location | -- | |
| DateCode | -- |
