| 141-0701-632 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

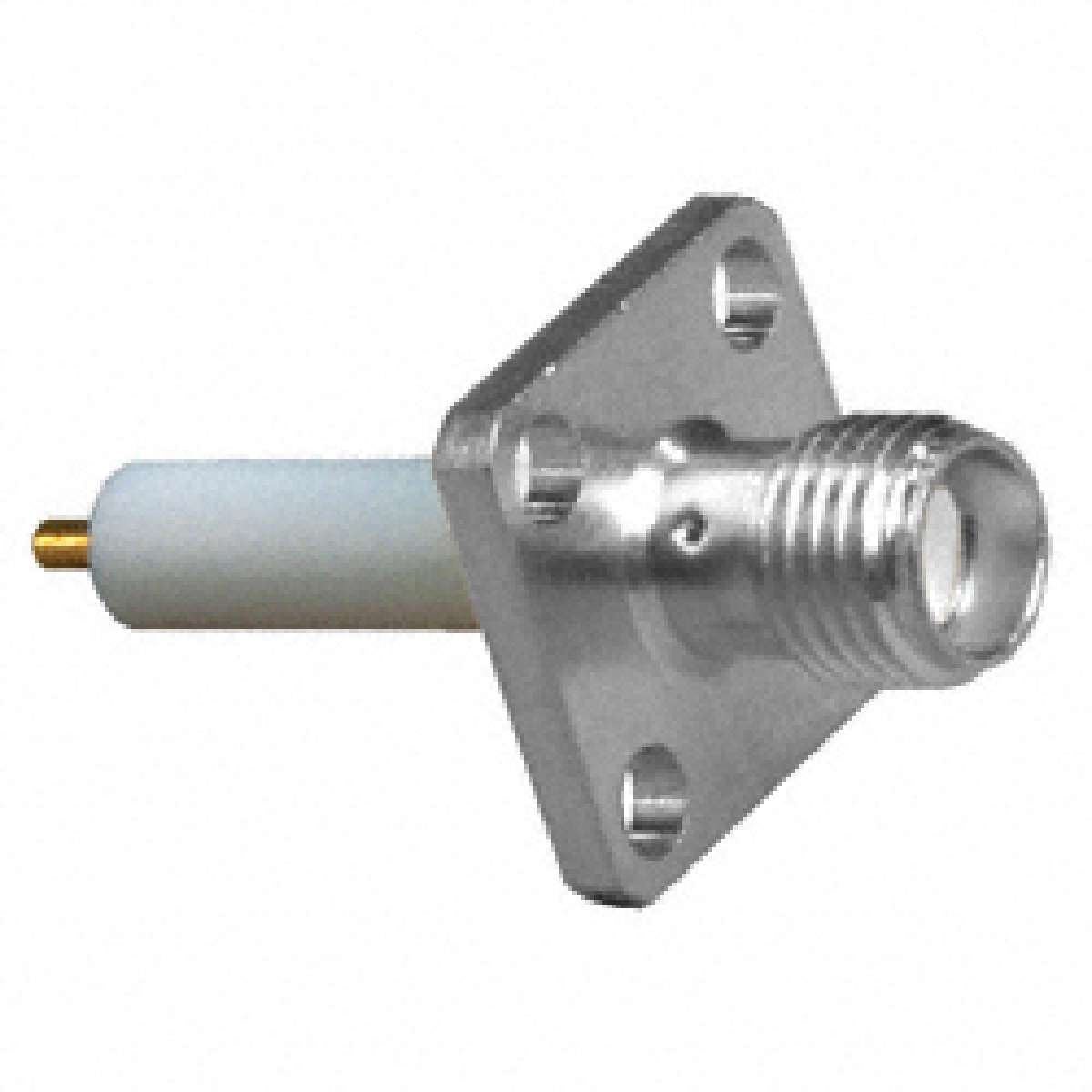

CONN SMA JACK STR 50 OHM SOLDER
|
||
| 标准包装：25 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Voltage Rating | 335V |
|---|---|
| Connector Style | SMA |
| Contact Termination | Solder |
| Body Material | Stainless Steel |
| Mounting Type | Panel Mount, Square Flange |
| Housing Color | Silver |
| Standard Package | 25 |
| Features | Extended Insulation |
| Family | Coaxial Connectors (RF) |
| Connector Type | Jack, Female Socket |
| Impedance | 50 Ohm |
| Shield Termination | Solder |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Fastening Type | Threaded |
| Frequency - Max | 18GHz |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Packaging | Bulk |
| Operating Temperature | -65°C ~ 165°C |
