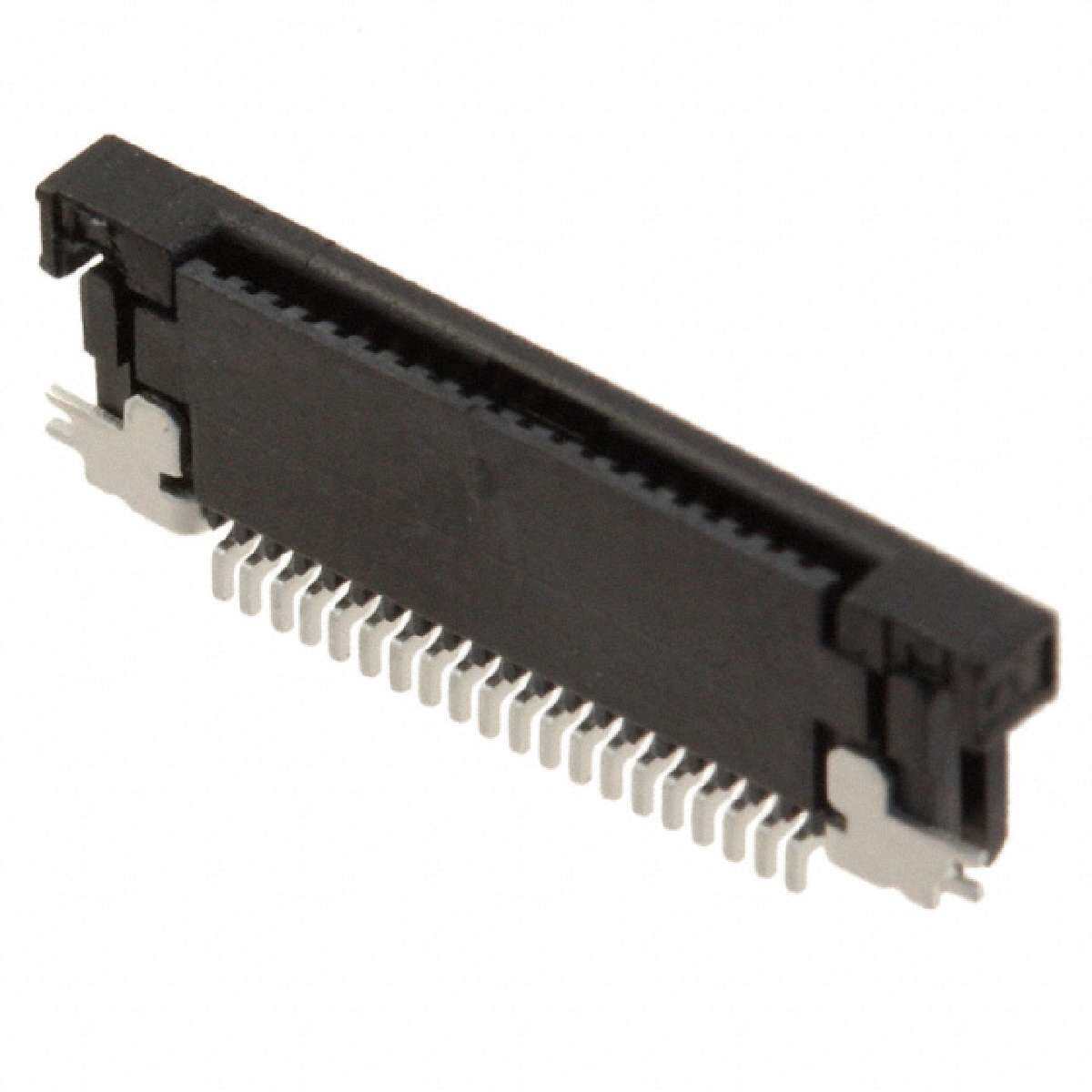

| SFV20R-1STE1HLF | ||
|---|---|---|
|
|
||
|
||
| Product description : 20 Position 0.5 mm Bottom Right Angle Surface Mount Slide Lock FFC/FPC Connector | ||
| SPQ：1 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Contact Finish | Tin |
|---|---|
| Termination | Solder |
| Cable End Type | Straight, Tapered |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| FFC, FCB Thickness | 0.30mm, 0.33mm |
| Category | Connectors, Interconnects |
| Contact Material | Phosphor Bronze |
| Number of Positions | 20 |
| Mounting Type | Surface Mount, Right Angle |
| Locking Feature | Slide Lock |
| Material Flammability Rating | UL94 V-0 |
| Packaging | Tape & Reel (TR) |
| Current Rating | 0.5A |
| Voltage Rating | 50V |
| Height Above Board | 0.071" (1.80mm) |
| Flat Flex Type | FFC, FPC |
| Part Status | Active |
| Manufacturer | Amphenol FCI |
| Housing Material | Liquid Crystal Polymer (LCP), Glass Filled, Halogen Free |
| Series | SFV-R |
| Family | FFC, FPC (Flat Flexible) Connectors |
| Operating Temperature | -55°C ~ 105°C |
| Connector/Contact Type | Contacts, Bottom |
| Pitch | 0.020" (0.50mm) |
| Actuator Material | Polyphenylene Sulfide (PPS), Glass Filled, Halogen Free |
| ECCN | EAR99 |
