| 0191290055 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

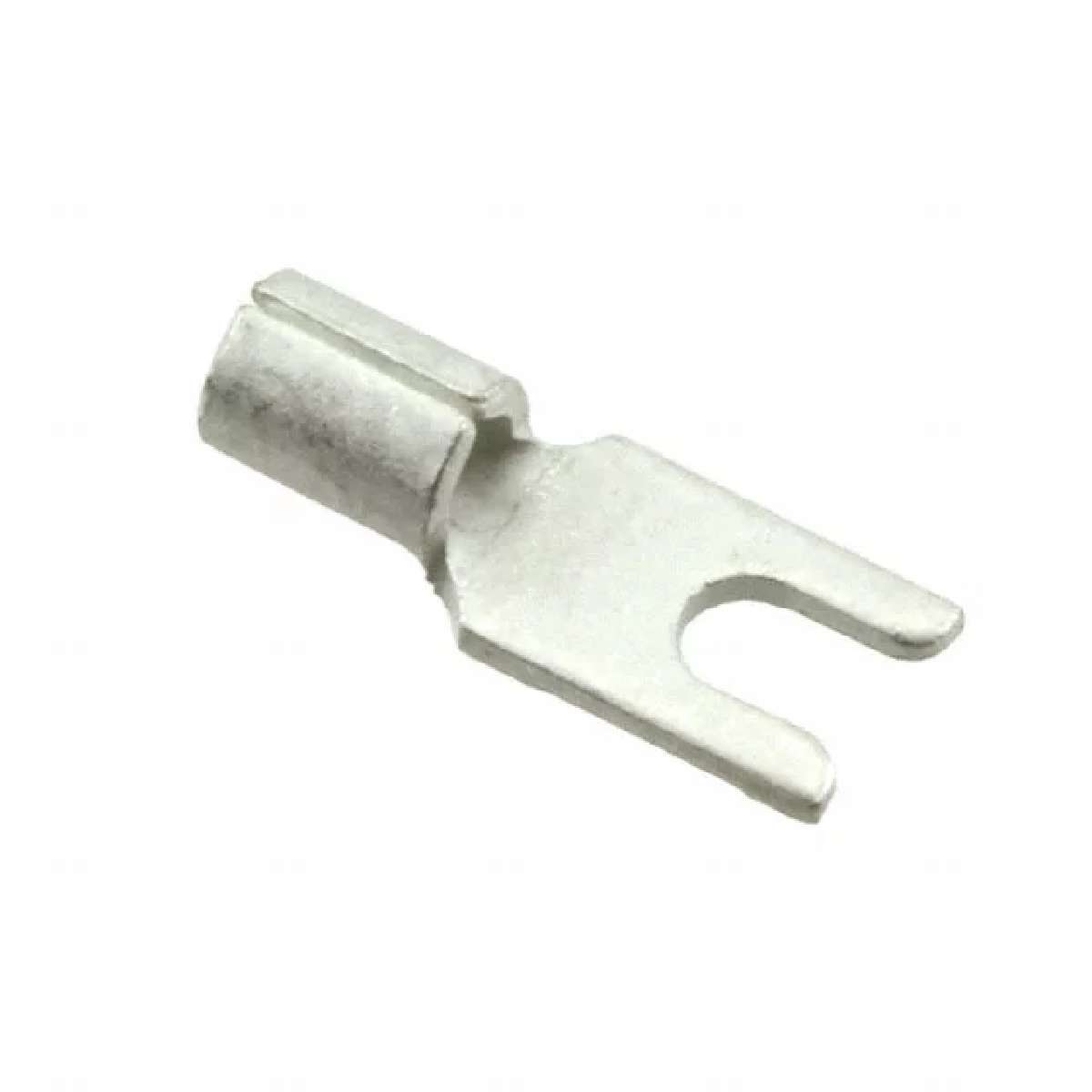

BLOCK SPADE TERM 22-18AWG
|
||
| 标准包装：1000 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Length - Termination | 0.165" (4.19mm) |
|---|---|
| Length - Ring Center to Termination | 0.183" (4.65mm) |
| Mounting Type | Free Hanging (In-Line) |
| Tooling | WM9974-ND - TOOL CRIMP WIREPIN TERM 10-22AWG WM5018-ND - TOOL HEAD ASSY FOR 19279-0002 |
| Standard Package | 1,000 |
| Stud/Tab Size | 2 Stud |
| Contact Material | Copper |
| Insulation | Non-Insulated |
| Family | Terminals - Spade Connectors |
| Width - Outer Edges | 0.187" (4.75mm) |
| Contact Finish | Electro-Tin |
| Wire Gauge | 18-22 AWG |
| Termination | Crimp |
| Tongue Inside Opening | 0.094" (2.39mm) |
| Terminal Type | Standard |
| Packaging | Bulk |
| Length - Overall | 0.502" (12.75mm) |
| Series | Krimptite™ |
| RoHS Information | 191290055 Cert of Compliance |
