| CY7C1474BV33-200BGXC | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

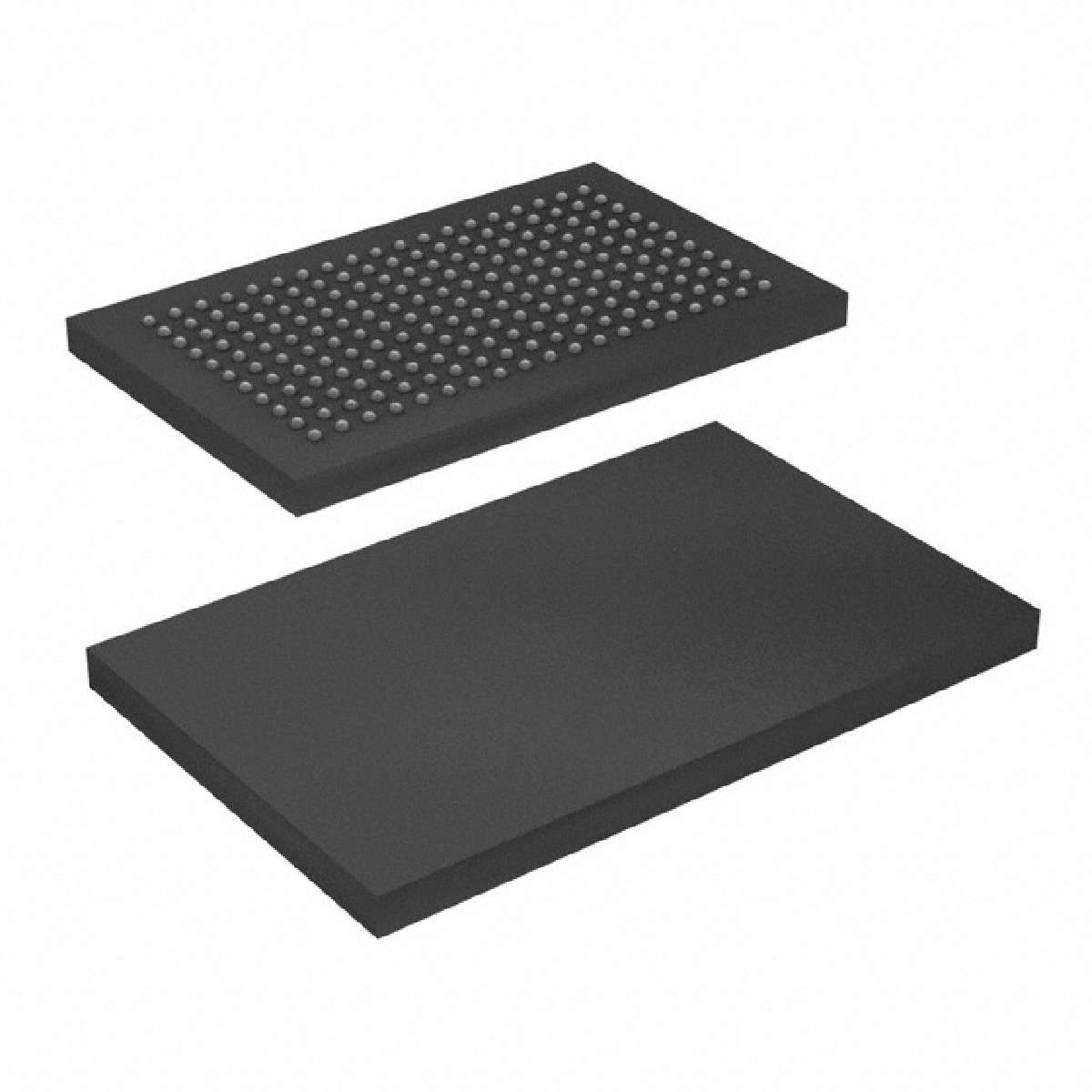

CY7C1474BV33 72 Mb (1 M x 72) 200 MHz 3.3 V Pipelined with NoBL™ SRAM - FBGA-209
|
||
| 标准包装：84 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Memory Size: | 72 Mbit |
|---|---|
| Manufacturer: | Cypress Semiconductor |
| Data Rate: | SDR |
| Series: | CY7C1474BV33 |
| Access Time: | 3 ns |
| Factory Pack Quantity: | 84 |
| Supply Voltage - Min: | 3.135 V |
| Memory Type: | SDR |
| Supply Current - Max: | 500 mA |
| Supply Voltage - Max: | 3.6 V |
| Type: | Synchronous |
| Mounting Style: | SMD/SMT |
| ECCN | 3A991.b.2.a |
| Packaging: | Tray |
| Organization: | 1 M x 72 |
| Interface Type: | Parallel |
| Operating Temperature Range: | 0 C to + 70 C |
| Minimum Operating Temperature: | 0 C |
| Brand: | Cypress Semiconductor |
| RoHS: | Details |
| Package / Case: | FBGA-209 |
| Product Category: | SRAM |
| Maximum Clock Frequency: | 200 MHz |
| Number of Ports: | 8 |
| Maximum Operating Temperature: | + 70 C |
| 数据手册： |
|---|
