| 431256038726 | ||
|---|---|---|
|
|
||
|
||

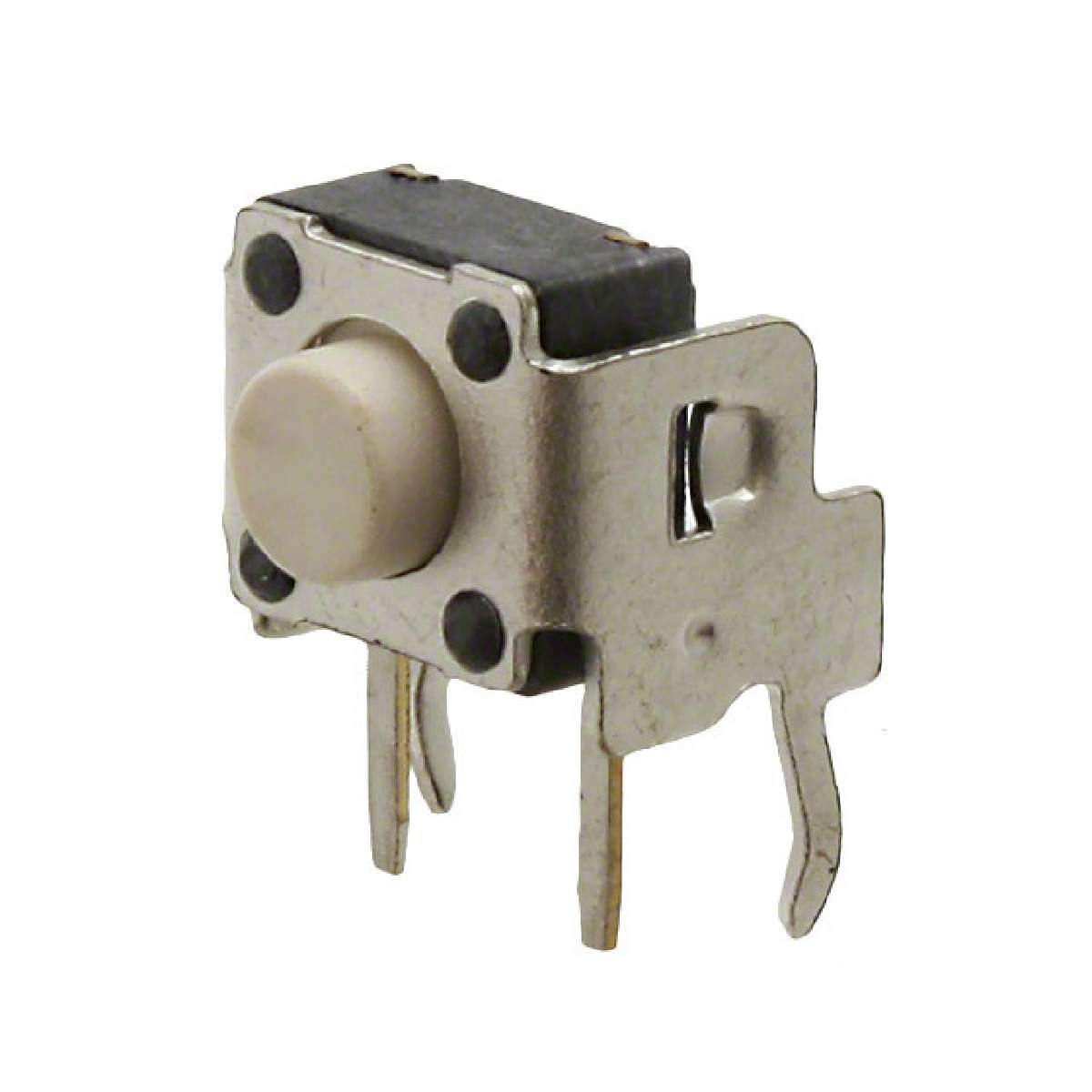

| Product description : SWITCH TACTILE SPST-NO 0.05A 12V | ||
| SPQ：500 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Circuit | SPST-NO |
|---|---|
| Switch Function | Off-Mom |
| Contact Rating @ Voltage | 0.05A @ 12VDC |
| Termination Style | PC Pin |
| Part Status | Active |
| Category | Switches |
| Switch Travel | 0.25mm |
| Operating Force | 260gf |
| Family | Tactile Switches |
| Mounting Type | Through Hole, Right Angle |
| Packaging | Bulk |
| Actuator Type | Standard |
| Actuator Orientation | Side Actuated |
| Actuator Height off PCB, from Pins | 3.85mm |
| Features | Grounding Pin |
| Manufacturer | Wurth Electronics Inc |
| Illumination | Non-Illuminated |
| Series | WS-TATU |
| Mechanical Life | 200,000 Cycles |
| Outline | 7.20mm x 7.00mm |
| Operating Temperature | -40°C ~ 85°C |
| Actuator Material | Liquid Crystal Polymer (LCP) |
You can comment after logging in.
Availability2Request Stock Notification
Supplier Code:SP1034
Offline Manufacture or Manufacture authorized supplier owned stock and price , need double confirmation and share out from them
$0.5699
￥4.733389955754253
See more prices
| 1+ | $0.5699 |
|---|---|
| 25+ | $0.556 |
| 50+ | $0.54071 |
| 100+ | $0.52125 |
| 400+ | $0.51152 |
| stock | 466 | Update On 2025-06-04 |
|---|---|---|
| Lead-Time | -- | |
| Supplier SPQ/MOQ | 1/1 | |
| Location | -- | |
| DateCode | -- |
