| 0528080571 | ||
|---|---|---|
|
|
||
|
||

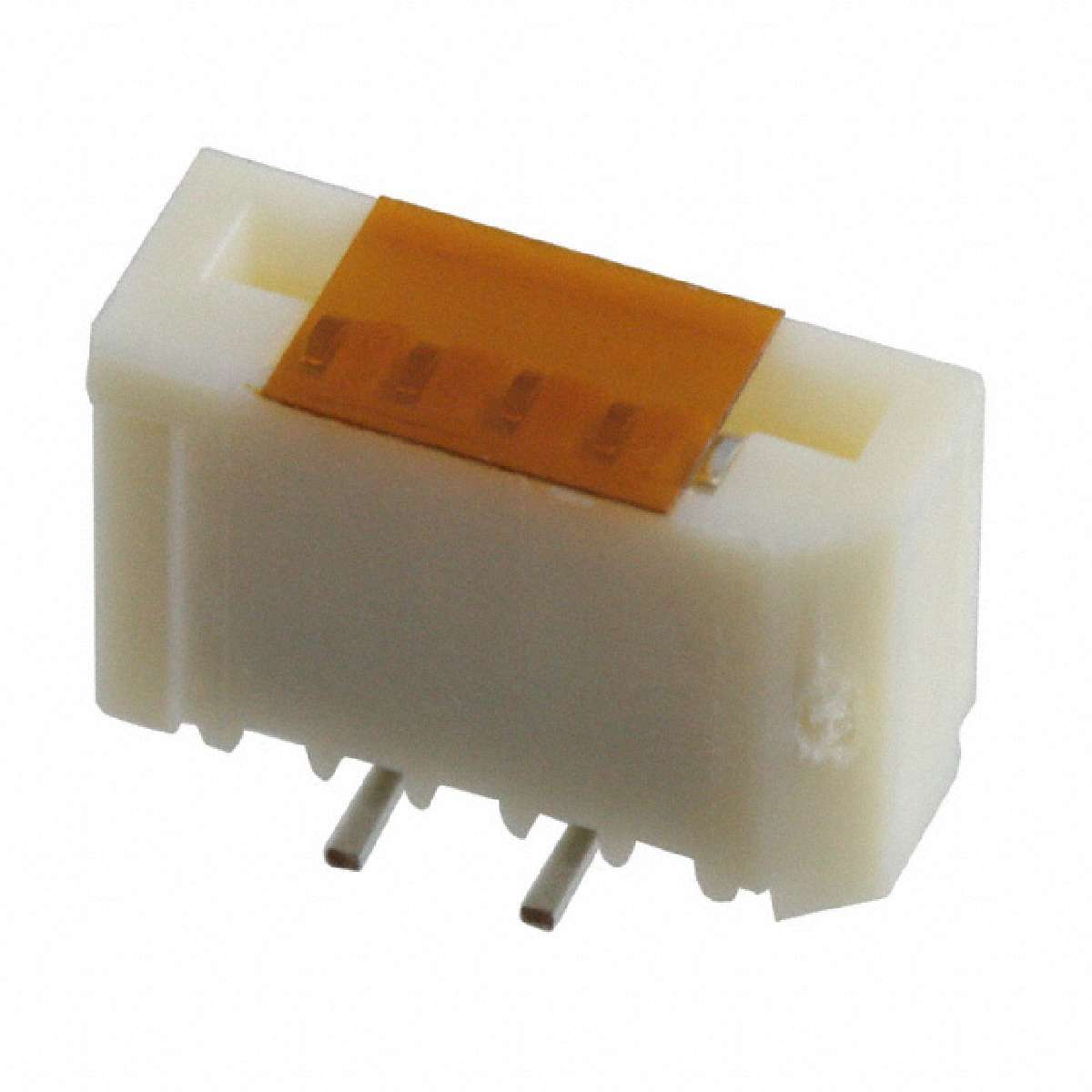

| Product description : CONN FFC FPC VERT 5POS 1MM SMD | ||
| SPQ：1 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Height Above Board | 0.199" (5.05mm) |
|---|---|
| Voltage Rating | 125V |
| Cable End Type | Straight |
| Part Status | Active |
| Manufacturer | Molex, LLC |
| Housing Material | Polyphenylene Sulfide (PPS) |
| Series | Easy-On™ 52808 |
| Family | FFC, FPC (Flat Flexible) Connectors |
| Operating Temperature | -20°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 |
| Packaging | Cut Tape (CT) |
| Termination | Solder |
| Contact Finish | Tin Bismuth |
| Flat Flex Type | FFC, FPC |
| FFC, FCB Thickness | 0.30mm |
| Category | Connectors, Interconnects |
| Contact Material | Phosphor Bronze |
| Number of Positions | 5 |
| Mounting Type | Surface Mount |
| Connector/Contact Type | Contacts, Vertical, 1 Sided |
| Pitch | 0.039" (1.00mm) |
| Current Rating | 0.5A |
You can comment after logging in.
Availability2Request Stock Notification
Supplier Code:SP1027
Offline Manufacture or Manufacture authorized supplier owned stock and price , need double confirmation and share out from them
$0.22212
￥1.8448500044239200
See more prices
| 8000+ | $0.22212 |
|---|---|
| 16000+ | $0.22041 |
| 24000+ | $0.21049 |
| 40000+ | $0.20894 |
| 48000+ | $0.20367 |
| 200000+ | $0.20212 |
| stock | 21000 | Update On 2024-05-14 |
|---|---|---|
| Lead-Time | 19Weeks | |
| Supplier SPQ/MOQ | 1/8000 | |
| Location | -- | |
| DateCode | 2132 |
