1-103644-5
  • 量产中
产品描述:

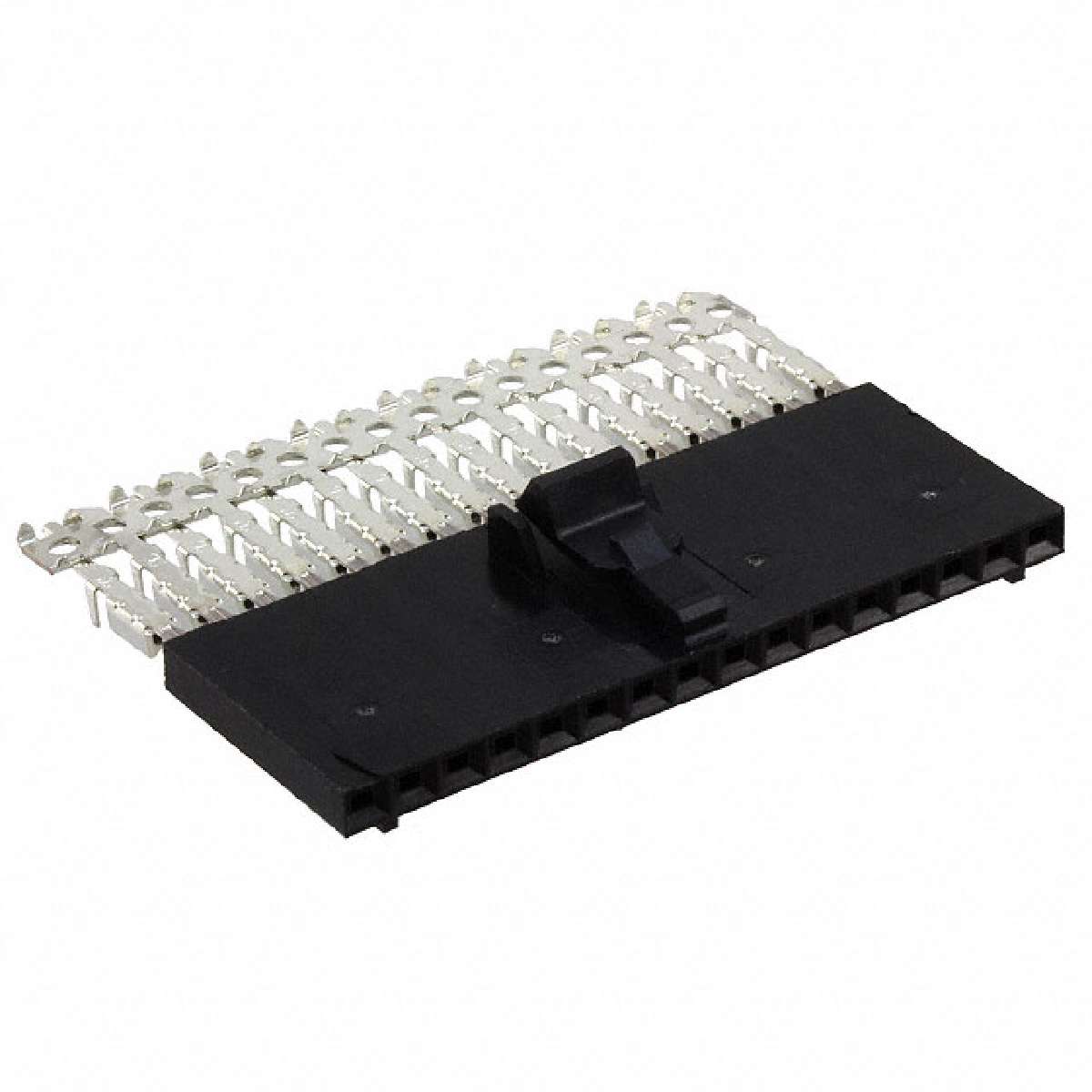

CONN RECEPT 16 POS 22-26AWG 15AU
标准包装:13
数据手册: --
ECAD模型:
  • 规格参数
  • 产品特性
  • 技术文档
  • 产品评论
Product: Wire Housings
Packaging: Tube
Housing Material: Thermoplastic
Series: AMPMODU MTE
Factory Pack Quantity: 13
Tradename: AMPMODU
Pitch: 2.54 mm
Termination Style: Crimp
Product Category: Headers & Wire Housings
Number of Rows: 1 Row
Contact Plating: Gold
Mounting Style: Free Hanging
Wire Gauge: 26-22
Termination Post Length: Crmip
Manufacturer: TE Connectivity
Operating Temperature Range: - 65 C to + 105 C
Brand: TE Connectivity / AMP
RoHS: No
Number of Positions: 16 Position
Contact Material: Phosphor Bronze
Current Rating: 3 A
Contact Gender: Socket (Female)
Type: Receptacle Housing
