| 418317170906 | ||
|---|---|---|
|
|
||
|
||

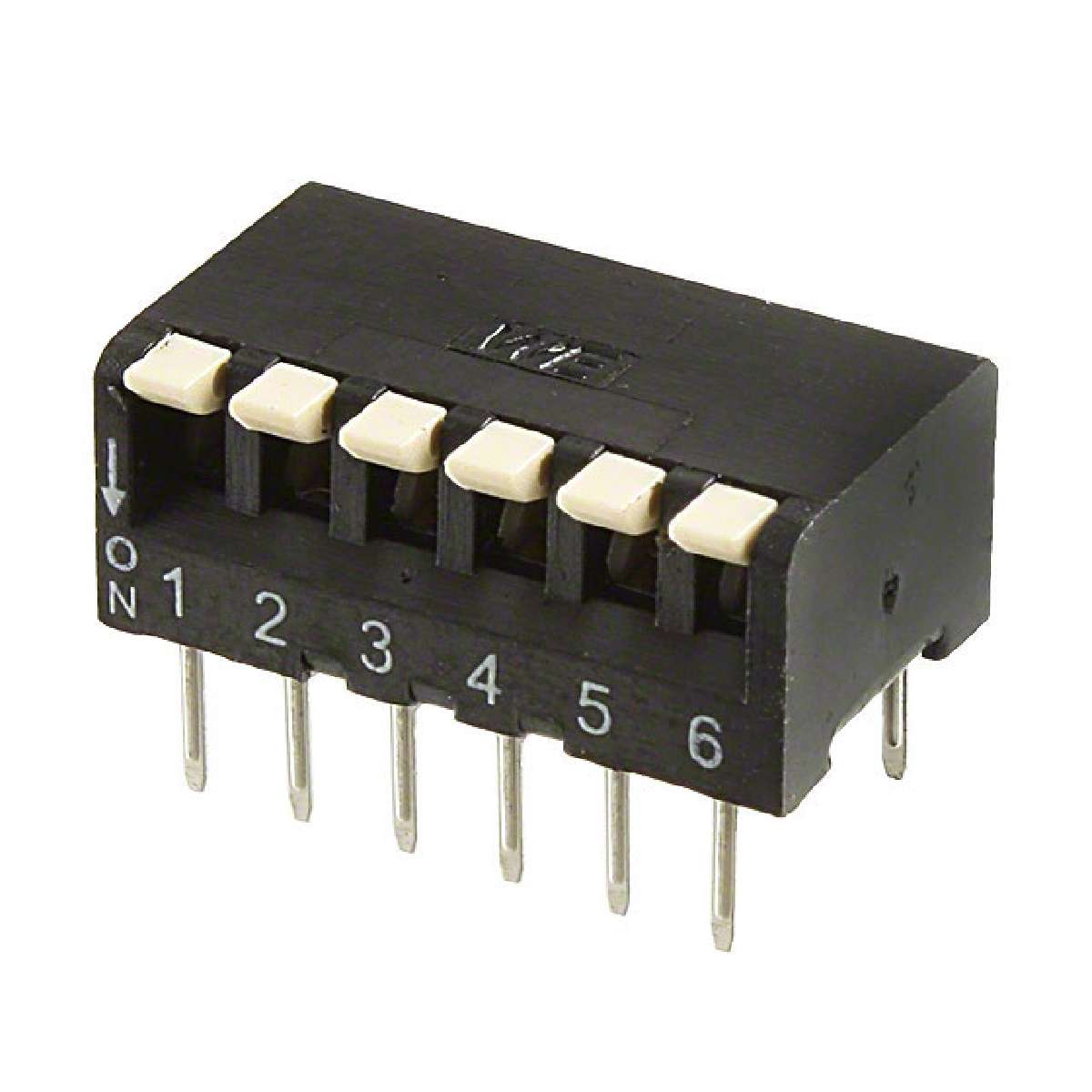

| Product description : DIP SWITCH 2.54MM PITCH 6POL 24V | ||
| SPQ：1 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Voltage Rating | 24VDC |
|---|---|
| Termination Style | PC Pin |
| Electrical Life | 2,000 Cycles |
| Washable | No |
| Packaging | Tube |
| Circuit | SPST |
| Part Status | Active |
| Actuator Level | Flush, Recessed |
| Mechanical Life | 5,000 Cycles |
| Series | WS-DITU |
| Operating Temperature | -40°C ~ 85°C |
| Pitch | 0.100" (2.54mm), Full |
| Contact Finish | Gold |
| Body Material | Polyphenylene Sulfide (PPS) |
| Manufacturer | Wurth Electronics Inc |
| Mounting Type | Through Hole, Right Angle |
| Height Above Board | 0.272" (6.90mm) |
| Actuator Type | Piano |
| Category | Switches |
| Length | 0.639" (16.24mm) |
| Number of Positions | 6 |
| Family | DIP Switches |
| Current Rating | 25mA |
