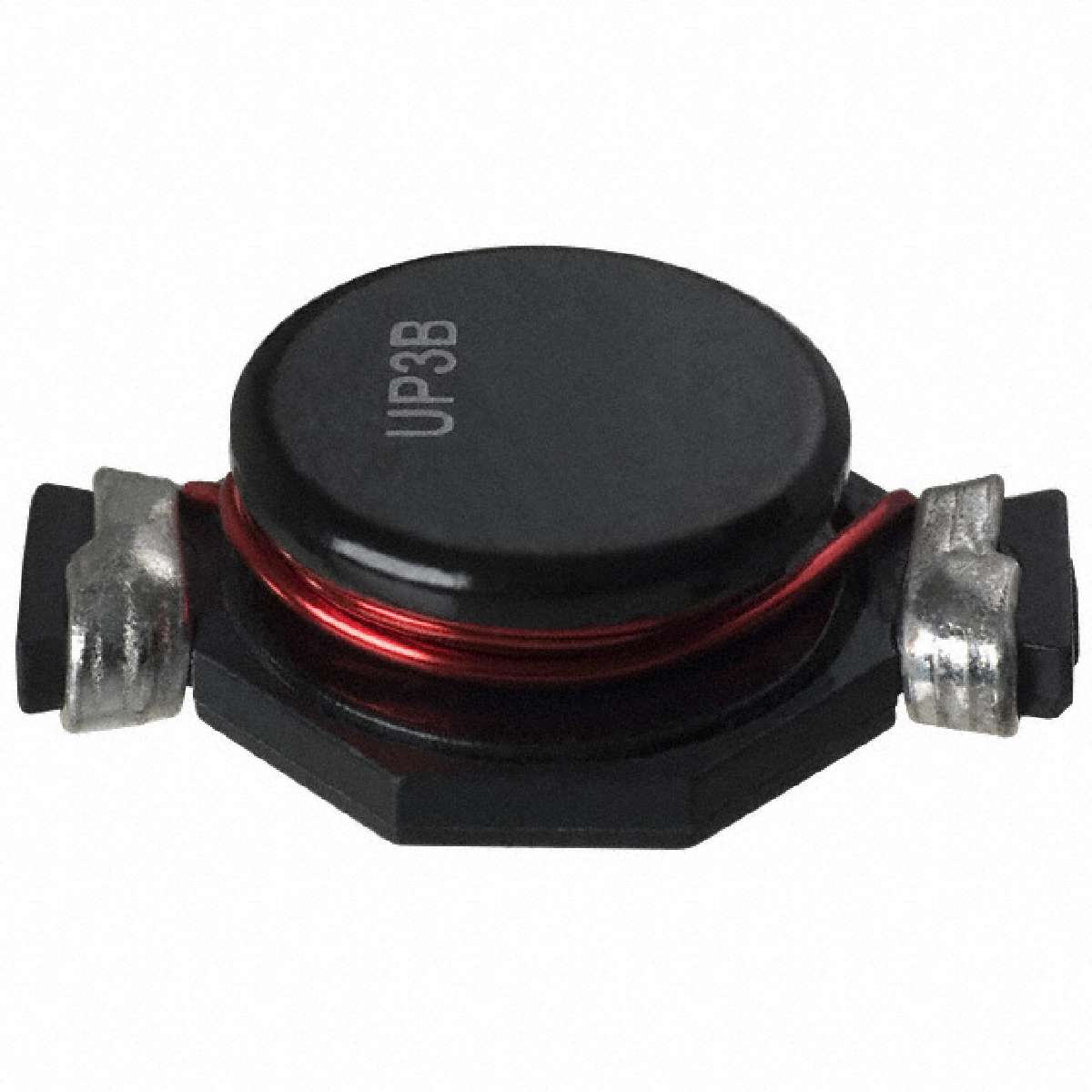

| UP3B-330-R | ||
|---|---|---|
|
|
||
|
||
| 产品描述：
UP Series 33 uH ±20 % Tolerance 2.4 A Unshielded Low Profile Power Inductor
|
||
| 标准包装：450 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Type | Wirewound |
|---|---|
| Inductance | 33µH |
| Current - Saturation | 3A |
| Part Status | Active |
| Manufacturer | Eaton |
| Material - Core | Ferrite |
| Family | Fixed Inductors |
| Shielding | Unshielded |
| DC Resistance (DCR) | 68.8 mOhm Max |
| Current Rating | 2.4A |
| ECCN | EAR99 |
| Package / Case | Nonstandard |
| Tolerance | ±20% |
| Size / Dimension | 0.759" L x 0.520" W (19.30mm x 13.21mm) |
| Category | Inductors, Coils, Chokes |
| Height - Seated (Max) | 0.267" (6.80mm) |
| Series | UNI-PAC™ |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| Packaging | Digi-Reel® |
| Frequency - Test | 100kHz |
