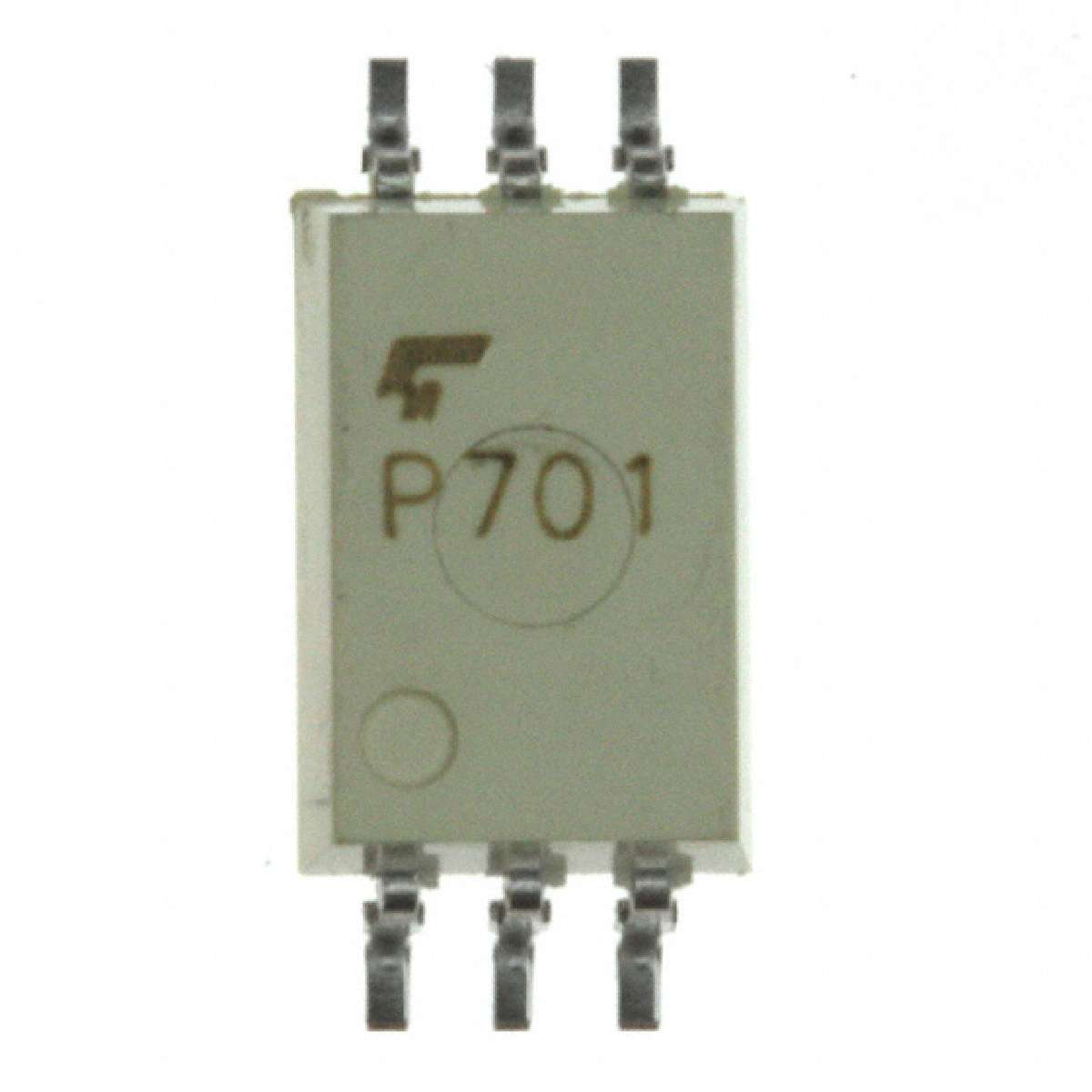

| TLP701(F) | ||
|---|---|---|
|
|
||
|
||
| 产品描述：
Optocoupler; SMD; Channels: 1; OUT: IGBT driver; 5kV; SDIP6F
|
||
| 标准包装：1 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Voltage - Isolation | 5000Vrms |
|---|---|
| Current - Peak Output | 600mA |
| Supplier Device Package | 6-SDIP Gull Wing |
| Part Status | Active |
| Category | Isolators |
| Number of Channels | 1 |
| Rise / Fall Time (Typ) | 50ns, 50ns |
| Current - DC Forward (If) (Max) | 20mA |
| Family | Isolators - Gate Drivers |
| Operating Temperature | -40°C ~ 100°C |
| Packaging | Tube |
| Voltage - Supply | 10 V ~ 30 V |
| Package / Case | 6-SOIC (0.268", 6.80mm Width) |
| Approvals | cUL, UL |
| Common Mode Transient Immunity (Min) | 10kV/µs |
| Manufacturer | Toshiba Semiconductor and Storage |
| Voltage - Forward (Vf) (Typ) | 1.55V |
| Propagation Delay tpLH / tpHL (Max) | 700ns, 700ns |
| Current - Output High, Low | 400mA, 400mA |
| Mounting Type | Surface Mount |
| Technology | Optical Coupling |
