| SP-5 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

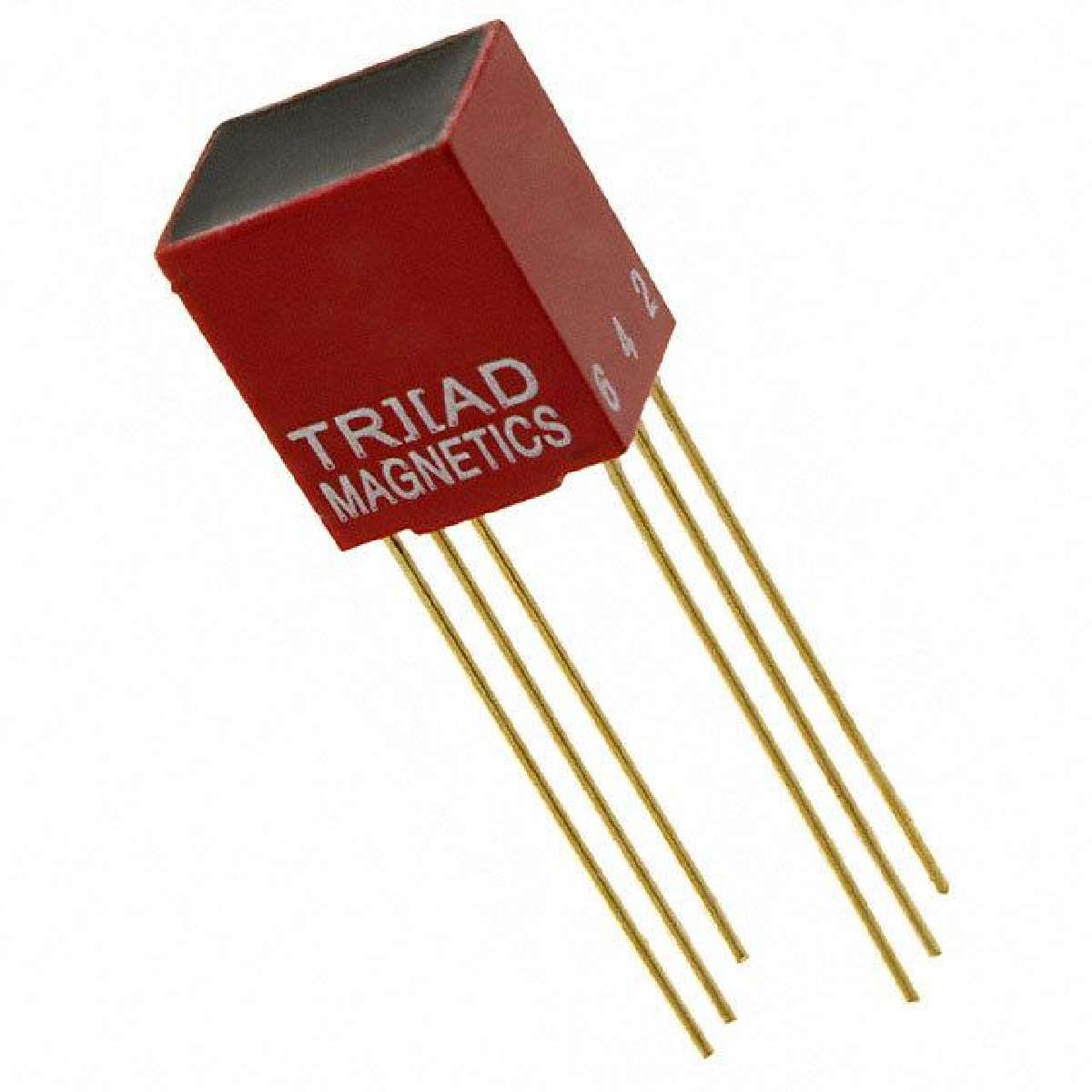

AUDIO XFMR 50Kct:1Kct 25mW ENCAPSULATED PCB MOUNT/
|
||
| 标准包装：1 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Product: | Audio |
|---|---|
| Primary Impedance: | 50 kOhm CT |
| Packaging: | Bulk |
| Isolation Voltage: | 1 kV |
| Manufacturer: | Triad Magnetics |
| Series: | Red Spec |
| Factory Pack Quantity: | 1 |
| RoHS: | Details |
| Application: | High Reliability |
| Height: | 11.811 mm |
| Secondary Impedance: | 1 kOhm CT |
| Secondary Resistance: | 75 Ohms |
| Width: | 10.41 mm |
| Power Rating: | 25 mW |
| Length: | 7.874 mm |
| Primary Resistance: | 3.8 kOhms |
| Frequency Range: | 300 Hz to 100 kHz |
| Brand: | Triad Magnetics |
| Termination Style: | Radial |
| Product Category: | Audio & Signal Transformers |
| Unit Weight: | 0.400000 oz |
| ECCN | EAR99 |
