| S29WS256P0PBFW000 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

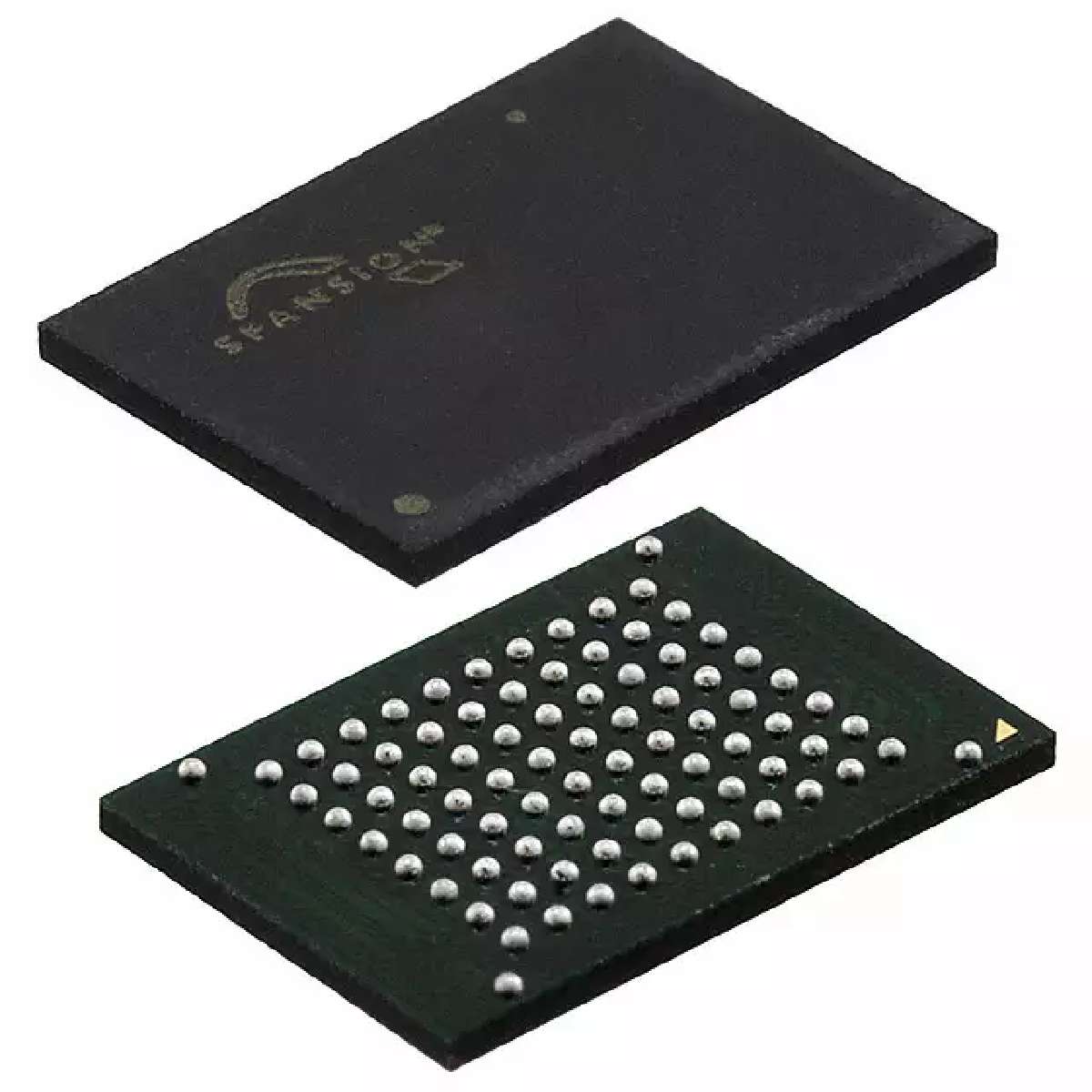

WS-P Series 256 Mb (16 M x 16) 1.95 V Simultaneous Read/Write Flash - FBGA-84
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Memory Size: | 256 Mbit |
|---|---|
| Packaging: | Tray |
| Organization: | 16 M x 16 |
| Interface Type: | Parallel |
| Minimum Operating Temperature: | - 25 C |
| Factory Pack Quantity: | 200 |
| Supply Voltage - Min: | 1.7 V |
| Memory Type: | NOR |
| Supply Current - Max: | 41 mA |
| Data Bus Width: | 16 bit |
| Maximum Clock Frequency: | 66 MHz |
| Mounting Style: | SMD/SMT |
| Timing Type: | Asynchronous, Synchronous |
| Manufacturer: | Cypress Semiconductor |
| Speed: | 66 MHz |
| Series: | S29WS-P |
| Operating Temperature Range: | - 25 C to + 85 C |
| Brand: | Cypress Semiconductor |
| RoHS: | Details |
| Package / Case: | FBGA-84 |
| Product Category: | Flash Memory |
| Supply Voltage - Max: | 1.95 V |
| Architecture: | Sector |
| ECCN | 3A991.b.1.a |
