| QXK2G105KTP | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

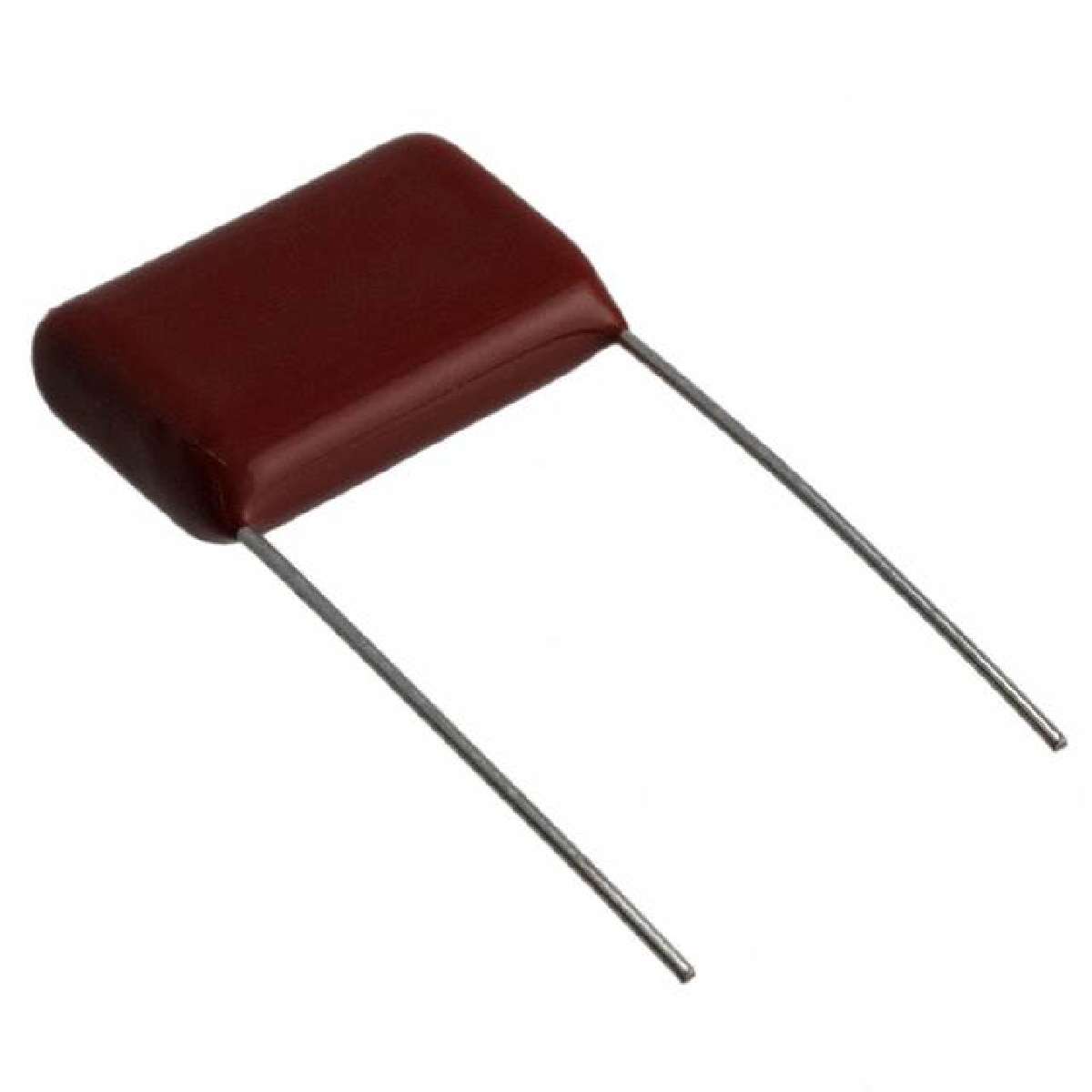

XK Series 400 V 1 uF 25.5x17.5mm LS=22.5mm Metallized Polyester Film Capacitor
|
||
| 标准包装：100 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Package / Case | Radial |
|---|---|
| Termination | PC Pins |
| Capacitance | 1µF |
| Voltage Rating - DC | 400V |
| Size / Dimension | 1.004" L x 0.343" W (25.50mm x 8.70mm) |
| Category | Capacitors |
| Height - Seated (Max) | 0.732" (18.60mm) |
| Family | Film Capacitors |
| Mounting Type | Through Hole |
| Packaging | Bulk |
| Tolerance | ±10% |
| Lead Spacing | 0.886" (22.50mm) |
| Voltage Rating - AC | 200V |
| Dielectric Material | Polyester, Metallized |
| Part Status | Active |
| Manufacturer | Nichicon |
| Series | QXK |
| Applications | General Purpose |
| Operating Temperature | -40°C ~ 105°C |
| ECCN | EAR99 |
