| PTS645VH58-2 LFS | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

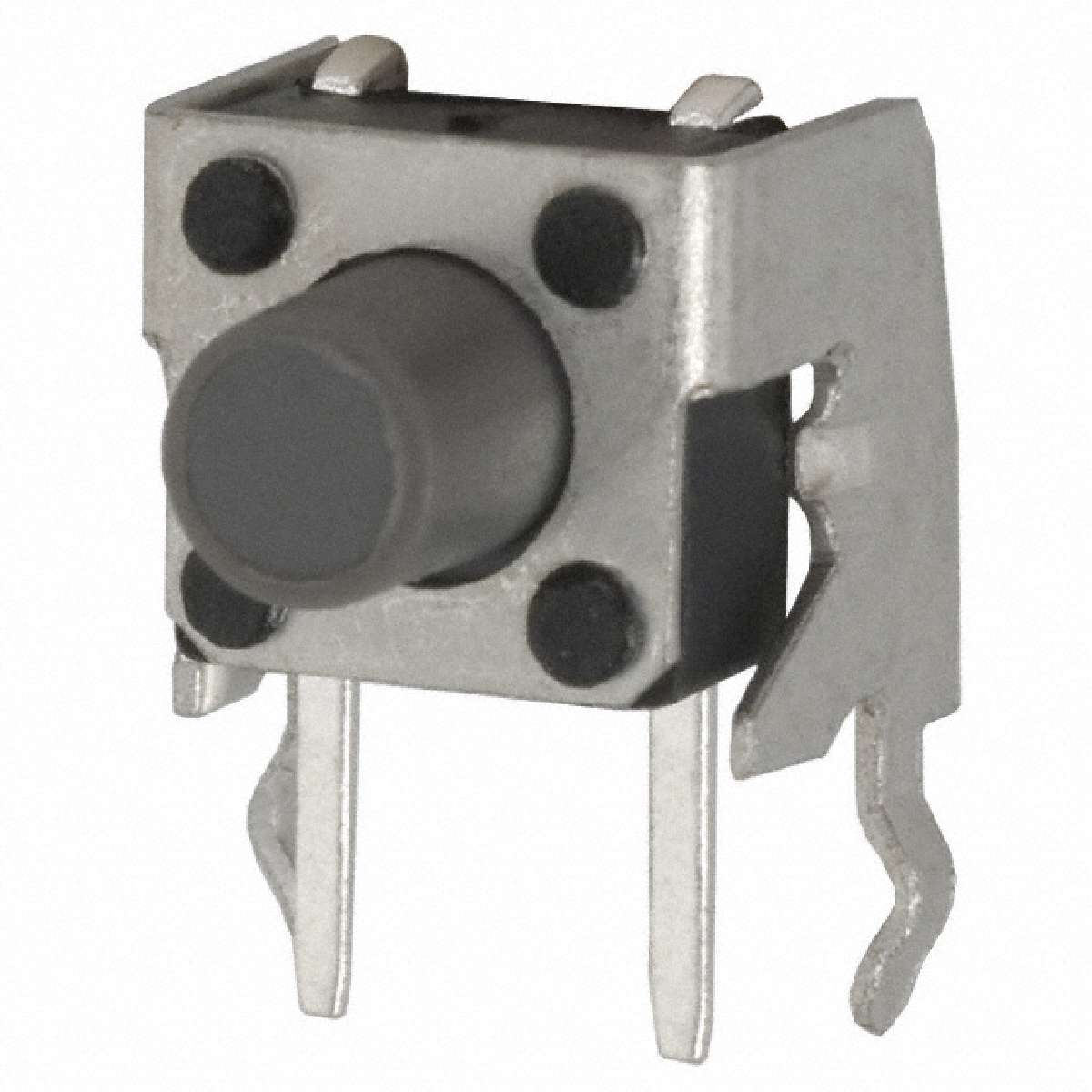

Microswitch TACT; SPST-NO; Pos: 2; 0.05A/12VDC; angular,THT; none
|
||
| 标准包装：5 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Actuator Type | Standard |
|---|---|
| Switch Function | Off-Mom |
| Contact Rating @ Voltage | 0.05A @ 12VDC |
| Termination Style | PC Pin |
| Manufacturer | C&K Components |
| Illumination | Non-Illuminated |
| Operating Force | 200gf |
| Family | Tactile Switches |
| Mounting Type | Through Hole, Right Angle |
| Packaging | Bulk |
| ECCN | EAR99 |
| Circuit | SPST-NO |
| Actuator Orientation | Side Actuated |
| Actuator Height off PCB, from Pins | 5.85mm |
| Part Status | Active |
| Category | Switches |
| Series | PTS645 |
| Mechanical Life | 100,000 Cycles |
| Outline | 7.50mm x 7.10mm |
| Operating Temperature | -20°C ~ 60°C |
| Actuator Material | Polyamide (PA66), Nylon 6/6 |
| 数据手册： |
|---|
