| OD172SAP-48HB | ||
|---|---|---|
|
|
||
|
||

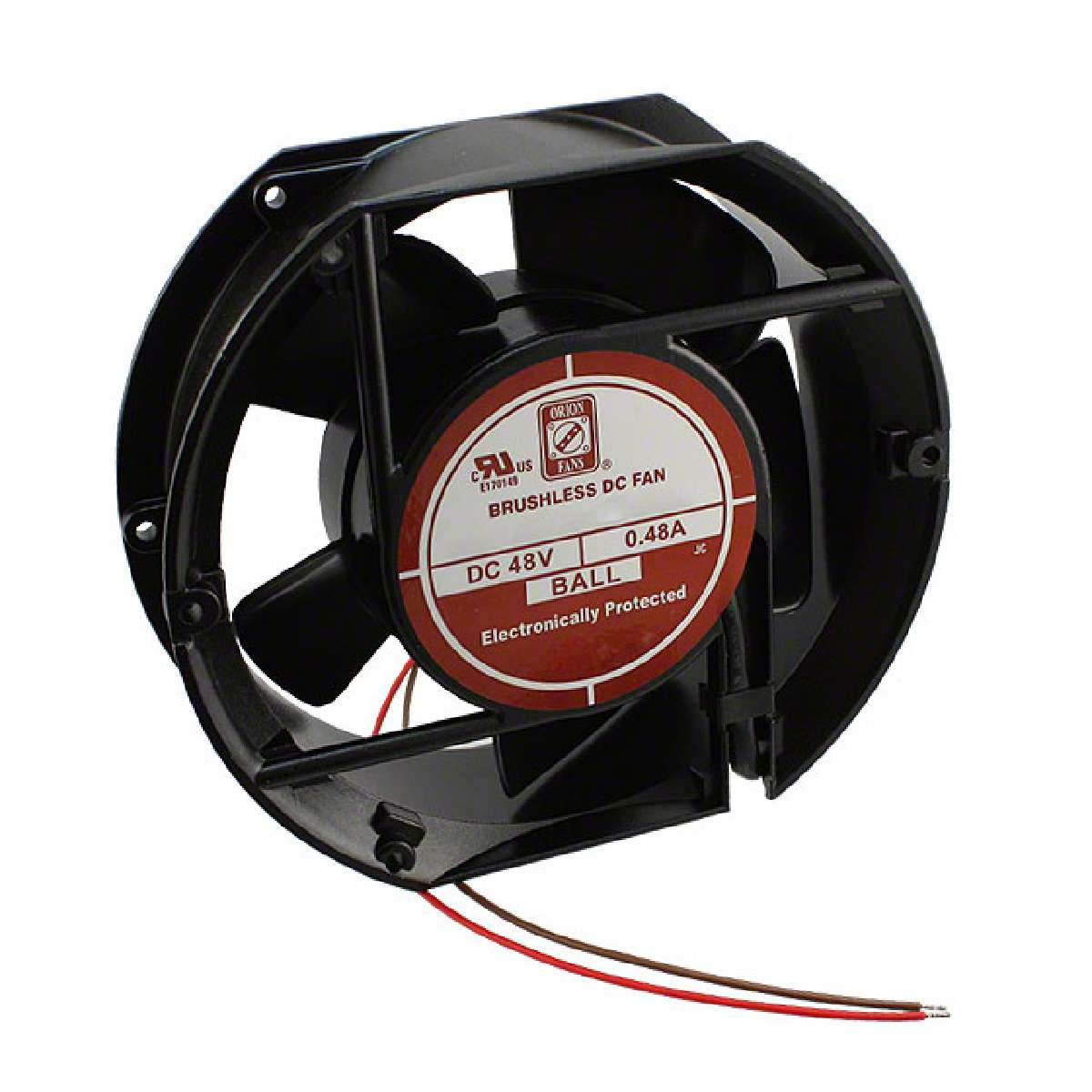

| Product description : OD172 Series 3300 RPM Ø 172 x 150 x 51 mm 235 CFM 48 V Dual Ball Bearing DC Fan | ||
| SPQ：12 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Termination | 2 Wire Leads |
|---|---|
| Material - Blade | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Voltage Range | 22 ~ 63VDC |
| Part Status | Active |
| Manufacturer | Orion Fans |
| Air Flow | 235.0 CFM (6.65m³/min) |
| Series | OD172SAP |
| Family | DC Fans |
| Width | 50.80mm |
| Bearing Type | Ball |
| Current Rating | 0.480A |
| Static Pressure | 0.790 in H2O (196.8 Pa) |
| Approvals | TUV, UR |
| Size / Dimension | Rectangular/Rounded - 172mm L x 150mm H |
| Category | Fans, Thermal Management |
| Material - Frame | Aluminum |
| Voltage - Rated | 48VDC |
| Noise | 52 dB |
| RPM | 3300 RPM |
| Operating Temperature | -4 ~ 167°F (-20 ~ 75°C) |
| Fan Type | Tubeaxial |
| ECCN | EAR99 |
