OA109AP-11-3TBR
OA109AP-11-3TBR
  • ACTIVE

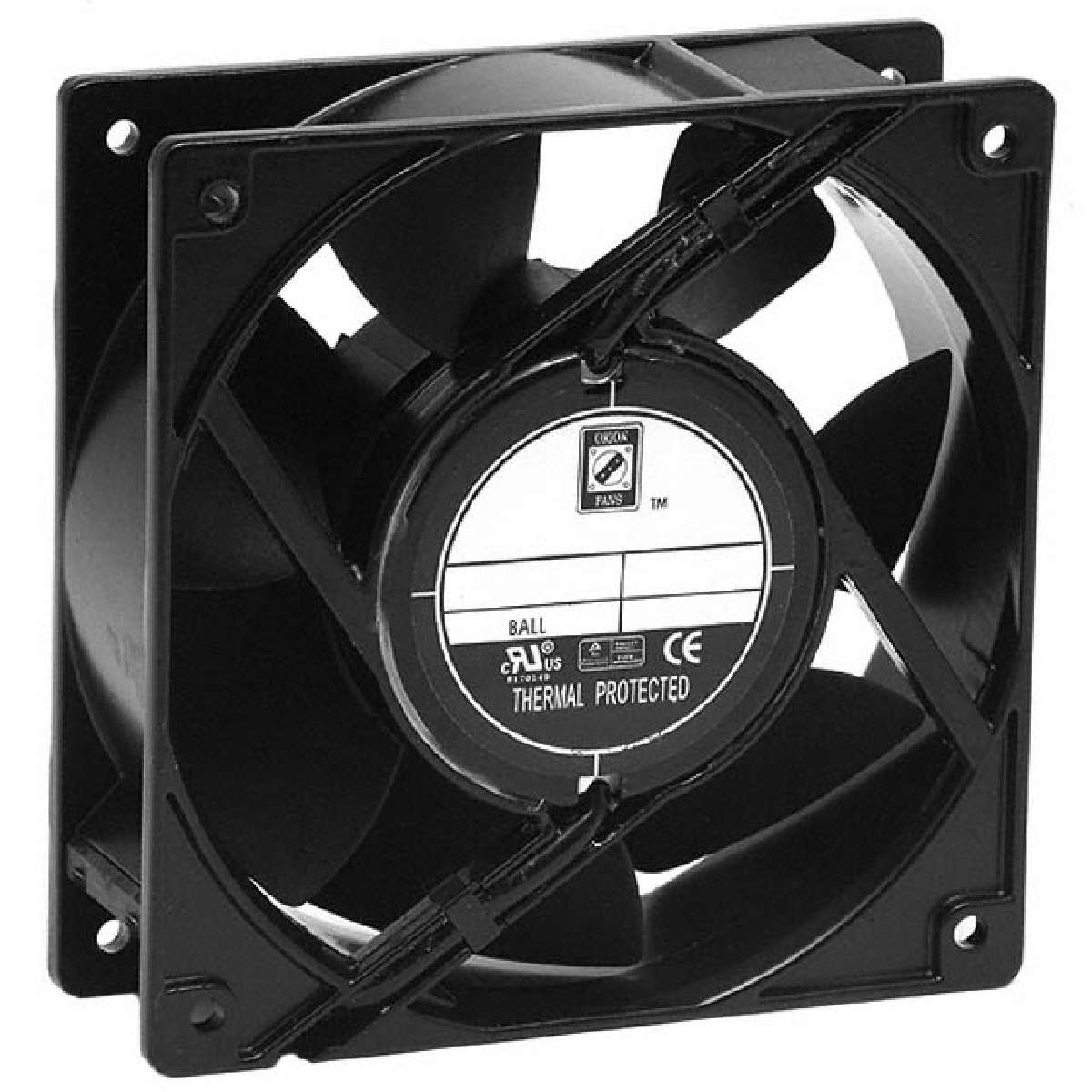

Product description : FAN AXIAL 119.5X38.5MM 115VAC
SPQ:1
Datasheet : --
  • Specifications
  • Product Attributes
  • Documents
  • Product reviews
Termination 2 Terminals
Material - Blade Polybutylene Terephthalate (PBT)
Size / Dimension Square - 119.5mm L x 119.5mm H
Category Fans, Thermal Management
Material - Frame Aluminum
Voltage - Rated 115VAC
Noise 38 dB
Family AC Fans
Width 38.5mm
Bearing Type Ball
Static Pressure 0.160 in H2O (39.8 Pa)
Voltage Range 80 ~ 130VAC
Part Status Active
Manufacturer Orion Fans
Air Flow 75.0 CFM (2.12m³/min)
Series OA109
Power (Watts) 12.0W
RPM 2300 RPM
Operating Temperature -4 ~ 176°F (-20 ~ 80°C)
Fan Type Tubeaxial
