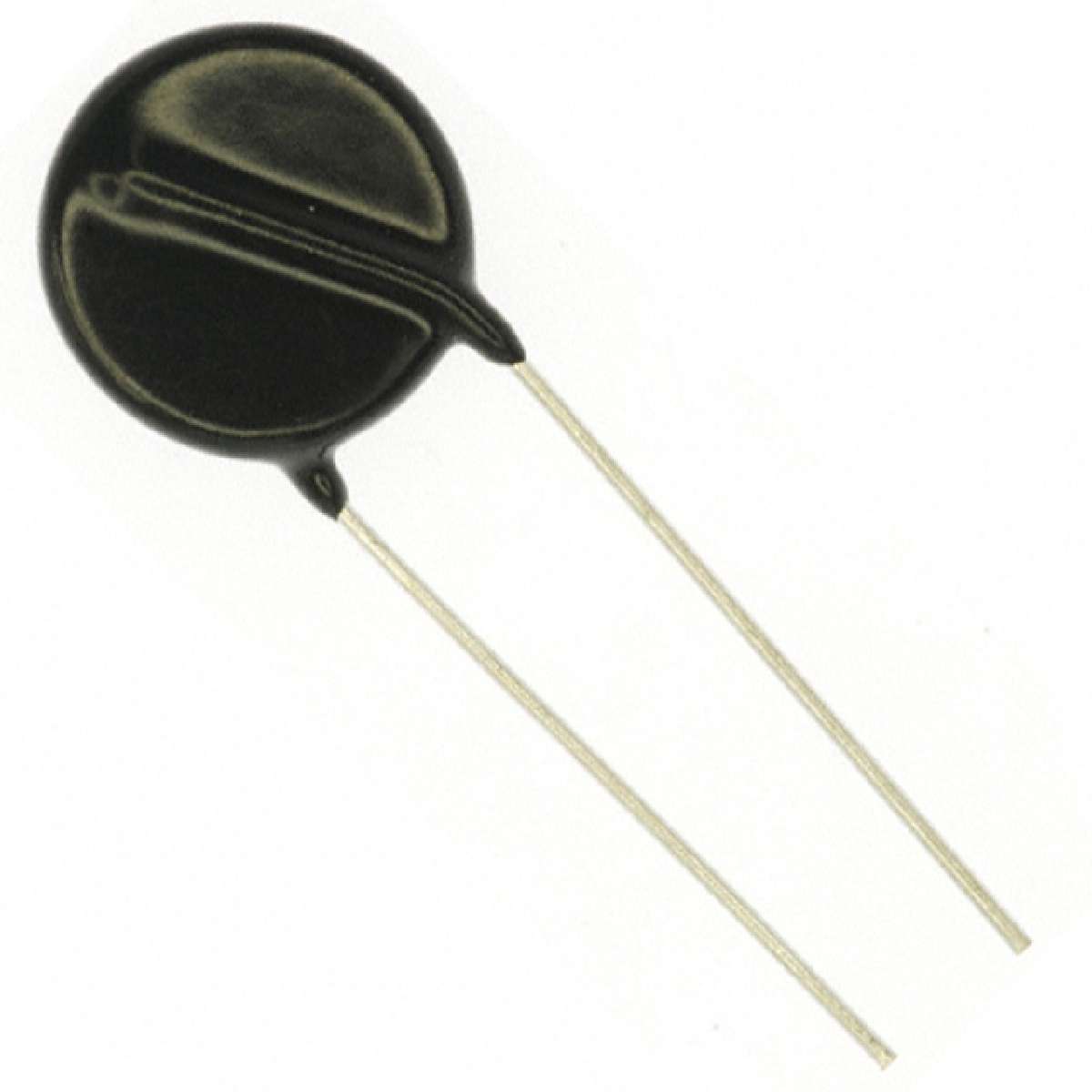

| ERZ-V20D361 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：
Var 230VAC/300VDC 10000A 360V Radial
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Length: | 24.5 mm |
|---|---|
| Surge Energy Rating: | 255 J |
| Qualification: | Commercial |
| Mounting: | Radial |
| Voltage Rating AC: | 230 VAC |
| Operating Temperature Range: | - 40 C to + 85 C |
| Factory Pack Quantity: | 1000 |
| Varistor Voltage: | 360 VDC |
| RoHS: | Details |
| Diameter: | 20 mm |
| Clamping Voltage: | 595 V |
| Type: | ZNR Transient/Surge Absorbers |
| Capacitance: | 1100 pF |
| Product: | MOV |
| Manufacturer: | Panasonic |
| Peak Surge Current: | 10 kA |
| Series: | V |
| Voltage Rating DC: | 300 VDC |
| Brand: | Panasonic |
| Tradename: | ZNR |
| Termination Style: | Radial |
| Product Category: | Varistors |
| Lead Spacing: | 10 mm |
| ECCN | EAR99 |
