| LK16083R9K-T | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

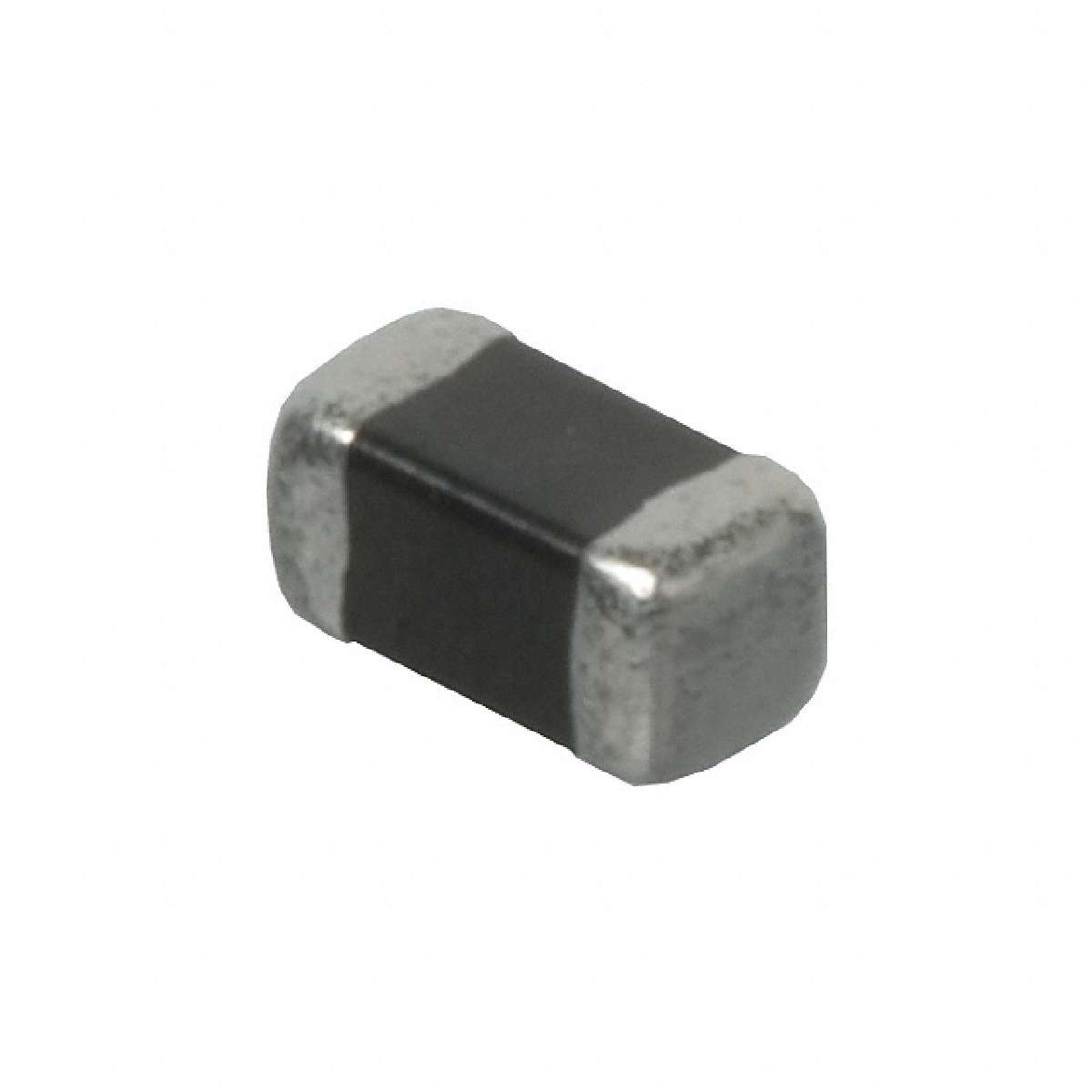

FIXED IND 3.9UH 30MA 1.5 OHM SMD
|
||
| 标准包装：4000 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Tolerance | ±10% |
|---|---|
| Package / Case | 0603 (1608 Metric) |
| Frequency - Self Resonant | 36MHz |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Category | Inductors, Coils, Chokes |
| Height - Seated (Max) | 0.037" (0.95mm) |
| Family | Fixed Inductors |
| Shielding | Shielded |
| DC Resistance (DCR) | 1.5 Ohm Max |
| Current Rating | 30mA |
| ECCN | EAR99 |
| Inductance | 3.9µH |
| Type | Multilayer |
| Q @ Freq | 35 @ 10MHz |
| Part Status | Active |
| Manufacturer | Taiyo Yuden |
| Series | LK |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| Packaging | Cut Tape (CT) |
| Frequency - Test | 10MHz |
