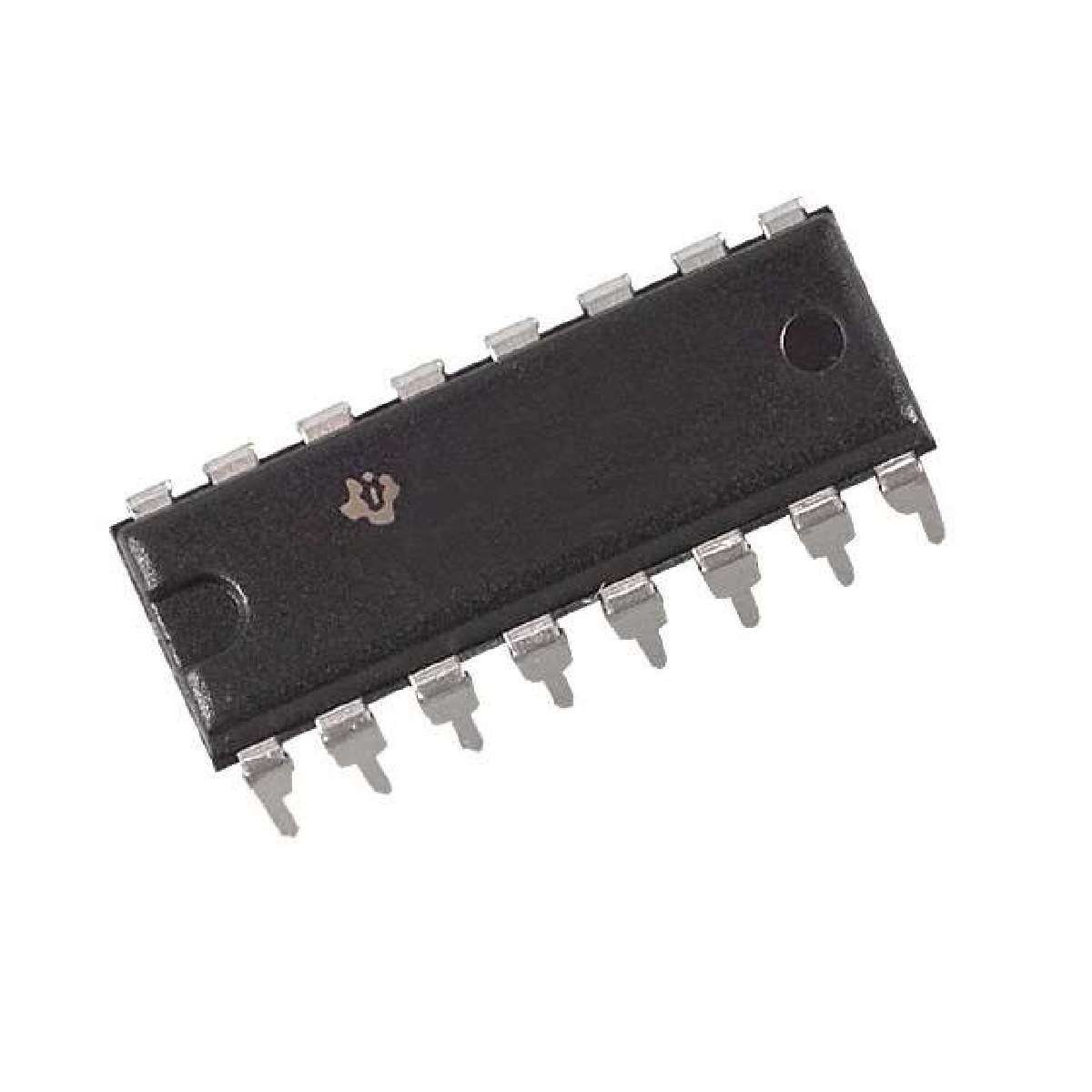

| INA110SG | ||
|---|---|---|
|
|
||
|
||
| Product description : FET INPUT I/A | ||
| SPQ：1 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Product: | Instrumentation Amplifiers |
|---|---|
| Voltage Gain dB: | 116 dB |
| INL - Integral Nonlinearity: | 0.01 % |
| Amplifier Type: | Instrumentation Amplifier |
| Minimum Operating Temperature: | - 55 C |
| Package / Case: | CDIP-16 SB |
| Height: | 3.5 mm |
| Maximum Input Resistance: | 5000000 MOhms |
| Mounting Style: | Through Hole |
| Number of Channels: | 1 Channel |
| SR - Slew Rate: | 12 V/us |
| 3 dB Bandwidth: | 470 kHz |
| Operating Supply Voltage: | 12 V to 36 V |
| Gain V/V: | 1 V/V, 10 V/V, 100 V/V, 1000 V/V |
| Brand: | Texas Instruments |
| Operating Supply Current: | 3 mA |
| Maximum Operating Temperature: | + 125 C |
| en - Input Voltage Noise Density: | 10 nV/sqrt Hz |
| Width: | 7.37 mm |
| Packaging: | Tube |
| CMRR - Common Mode Rejection Ratio: | 106 dB |
| Supply Voltage - Min: | 12 V |
| Ib - Input Bias Current: | 50 pA |
| Supply Voltage - Max: | 36 V |
| Vos - Input Offset Voltage: | 250 uV |
| Dual Supply Voltage: | +/- 15 V |
| Output Current per Channel: | 25 mA |
| Length: | 20.57 mm |
| Manufacturer: | Texas Instruments |
| Series: | INA110 |
| Factory Pack Quantity: | 1 |
| RoHS: | Details |
| Product Category: | Instrumentation Amplifiers |
You can comment after logging in.
Availability2Request Stock Notification
Supplier Code:SP1027
Offline Manufacture or Manufacture authorized supplier owned stock and price , need double confirmation and share out from them
$83.70505
￥695.22467
See more prices
| 1+ | $83.70505 |
|---|---|
| 10+ | $81.73165 |
| 25+ | $80.46665 |
| 100+ | $79.0625 |
| stock | Out of stock |
|---|---|
| Lead-Time | 6Weeks |
| Supplier SPQ/MOQ | 1/1 |
| Location | -- |
| DateCode | 1928 |
