FH12-36S-0.5SH(55)

ACTIVE EAR99

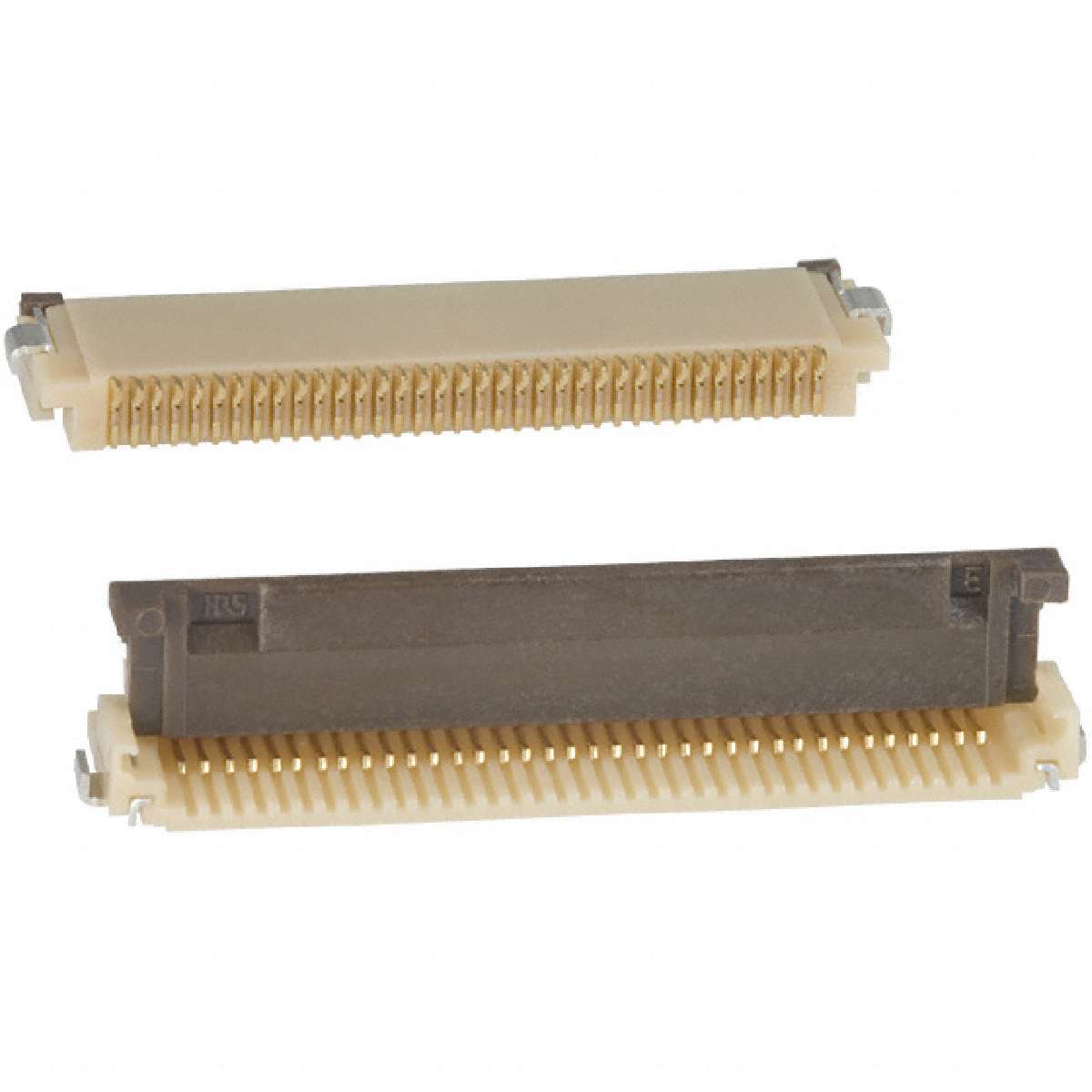

Product description : FH12 Series 36 Position 0.5 mm Pitch Surface Mount Right Angle Flip Lock FPC/FFC
SPQ：1
Datasheet : FH12-36S-0.5SH(55).pdf

Height Above Board	0.079" (2.00mm)
Voltage Rating	50V
Cable End Type	Straight
Features	Zero Insertion Force (ZIF)
FFC, FCB Thickness	0.30mm
Category	Connectors, Interconnects
Contact Material	Phosphor Bronze
Number of Positions	36
Mounting Type	Surface Mount, Right Angle
Locking Feature	Flip Lock
Material Flammability Rating	UL94 V-0
Packaging	Cut Tape (CT)
Current Rating	0.5A
Termination	Solder
Contact Finish	Gold
Flat Flex Type	FFC, FPC
Part Status	Active
Manufacturer	Hirose Electric Co Ltd
Housing Material	Polyamide (PA), Nylon
Series	FH12
Family	FFC, FPC (Flat Flexible) Connectors
Operating Temperature	-40°C ~ 85°C
Connector/Contact Type	Contacts, Bottom
Pitch	0.020" (0.50mm)
Actuator Material	Polyphenylene Sulfide (PPS)
ECCN	EAR99

Datasheet： FH12-36S-0.5SH(55).pdf
