| BPA01B | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

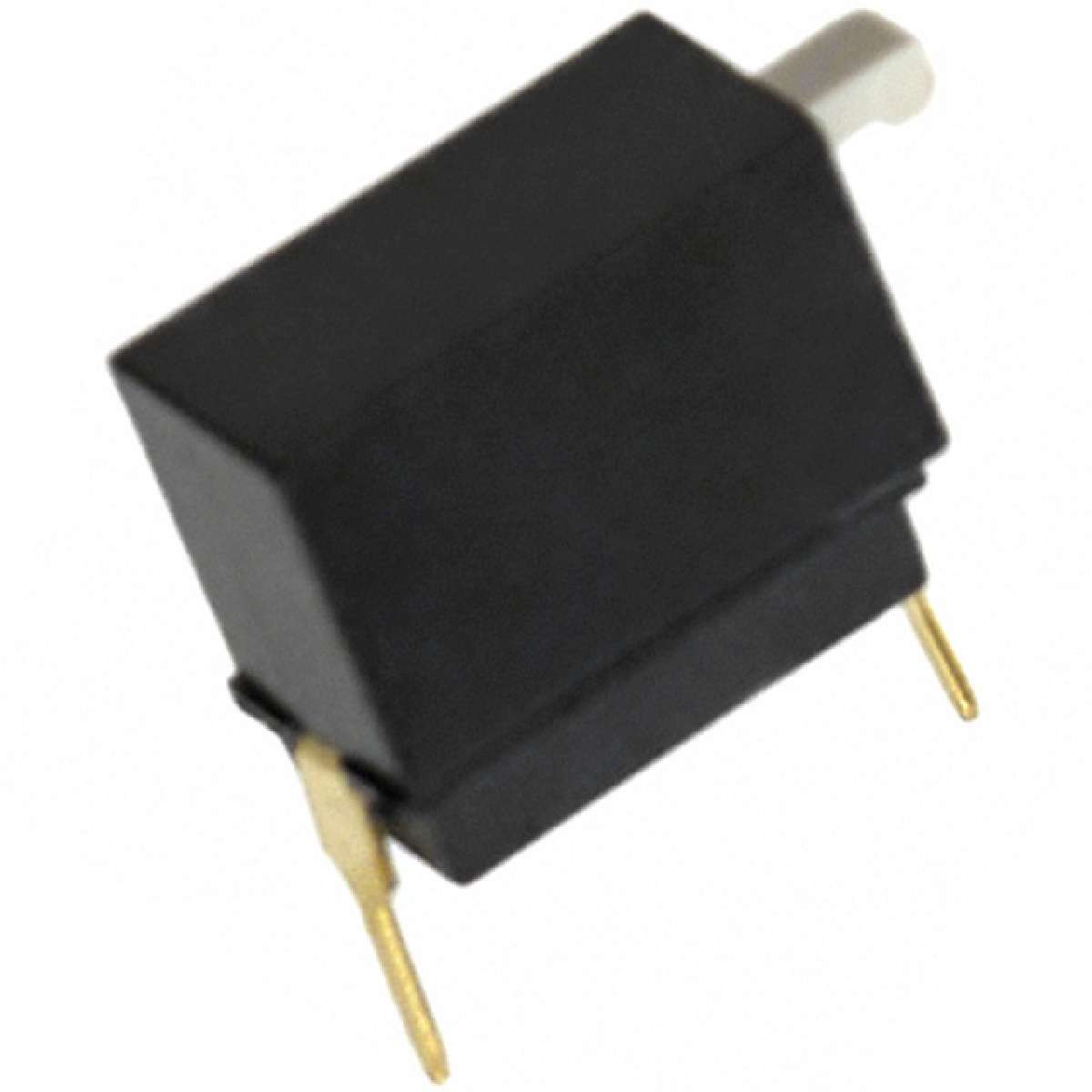

BPA Series Side Actuated SPST 1 Position Through Hole DIP Switch
|
||
| 标准包装：100 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Switch Type: | DIP |
|---|---|
| Contact Rating: | 100 mA at 5 V, 25 mA at 24 V |
| Manufacturer: | C&K Components |
| Series: | BPA |
| Brand: | C&K Components |
| RoHS: | Details |
| Product Category: | DIP Switches / SIP Switches |
| Terminal Pitch: | 2.54 mm |
| Packaging: | Tube |
| Actuator: | Piano |
| Operating Temperature Range: | - 20 C to + 85 C |
| Factory Pack Quantity: | 100 |
| Number of Positions: | 1 Position |
| Termination Style: | PCB |
| Current Rating: | 100 mA |
| ECCN | EAR99 |
