VPS10-8000 specifications -Ameya360 electronic components purchase network

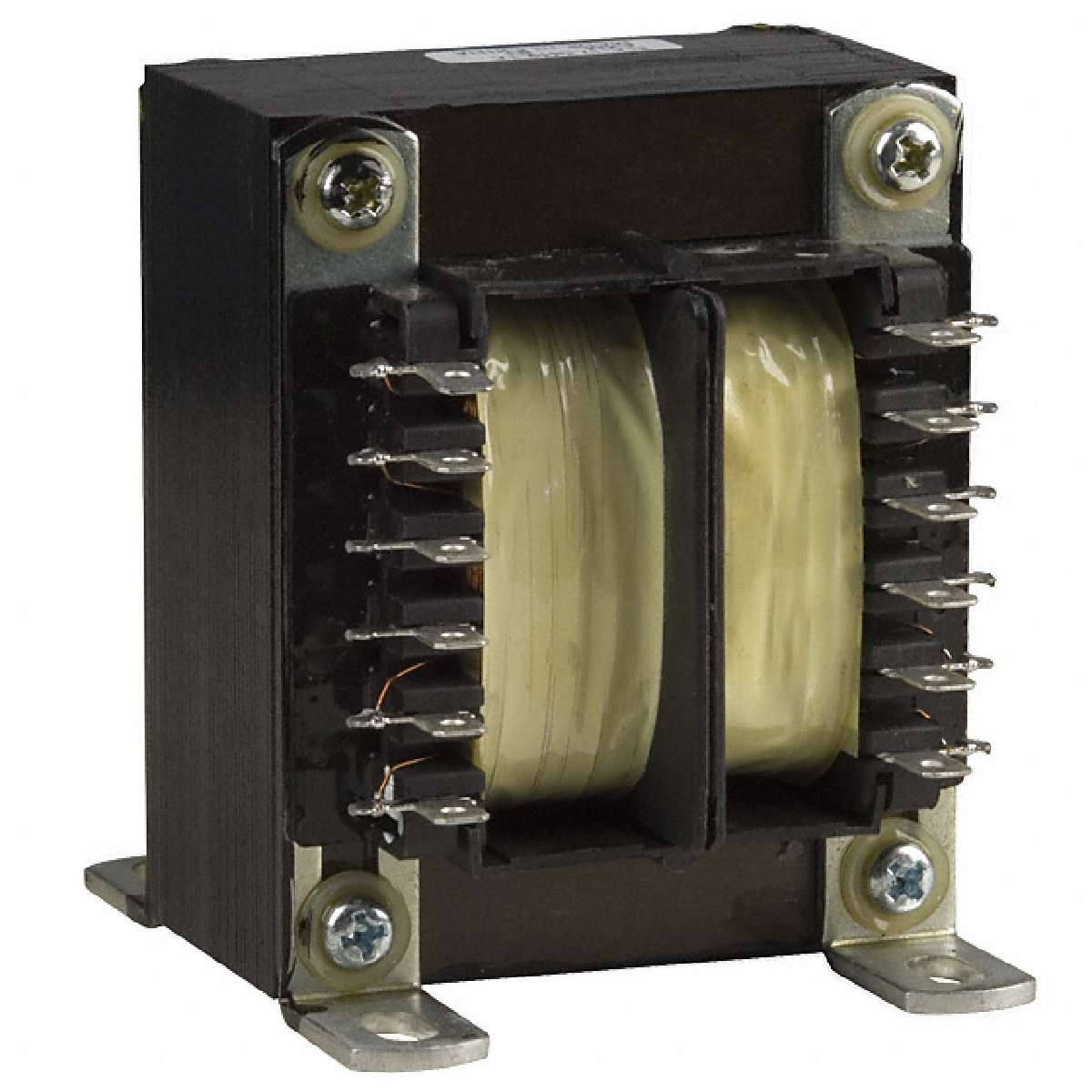

VPS10-8000

ACTIVE EAR99
Product description : POWER XFMR 10.0Vct@8.0A UL/CSA/VDE CHASSIS MOUNT/
SPQ：8
Datasheet : VPS10-8000.pdf

Voltage - Isolation	4000Vrms
Voltage - Secondary (Full Load)	Parallel 5V, Series 10V
Type	Laminated Core
Catalog Drawings	VPS Series VPS Series Schematic
Standard Package	8
Size / Dimension	63.50mm L x 58.67mm W
Secondary Winding(s)	Dual
Series	Chassis Mount: World Series鈩�/a>
Mounting Type	Chassis Mount
Primary Winding(s)	Dual
Power - Max	80 VA
Current - Output (Max)	Parallel 16A, Series 8A
Center Tap	No
Termination Style	Solder, Quick Connect
Voltage - Primary	115V, 230V
Height - Seated (Max)	76.20mm
Family	Power Transformers
ECCN	EAR99

Datasheet： VPS10-8000.pdf
