| 7016X1/5 | ||
|---|---|---|
|
|
||
|
||

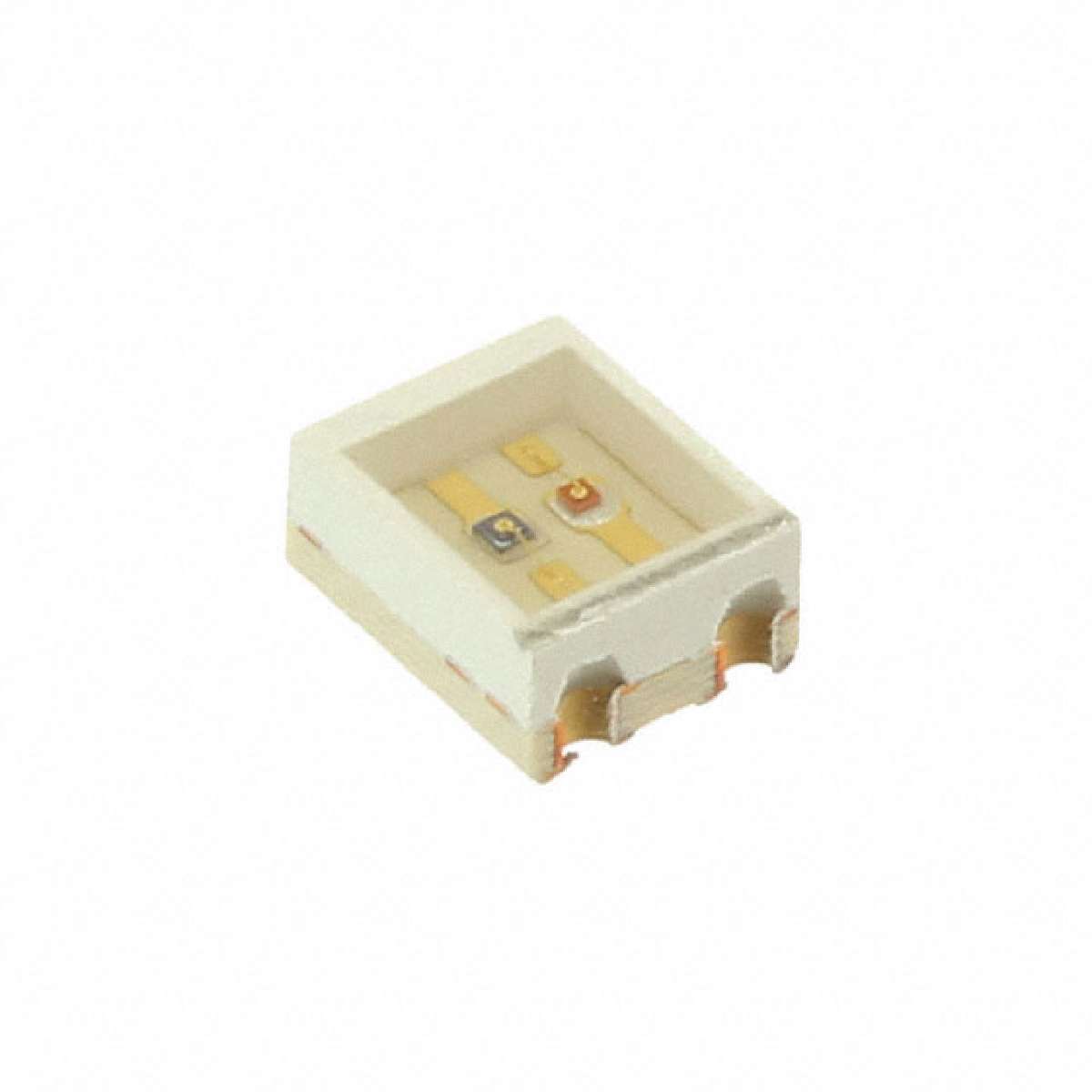

| Product description : 7016X Series Red-Green 110° 16/20 mcd Non Diffused 1.75/2.2 V SMT Bi-Color LED | ||
| SPQ：2500 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Lens Type | Clear |
|---|---|
| Viewing Angle | 110° |
| Color | Green, Red |
| Lens Style/Size | Rectangle with Flat Top, 2.3mm x 2.21mm |
| Voltage - Forward (Vf) (Typ) | 2.2V Green, 1.75V Red |
| Series | 7016X |
| Wavelength - Peak | 570nm, 660nm |
| Millicandela Rating | 20mcd Green, 16mcd Red |
| RoHS | Lead free / RoHS Compliant |
| Package / Case | 4-SMD, No Lead |
| Height | 1.30mm |
| Size / Dimension | 3.00mm L x 2.49mm W |
| Online Catalog | 7016X Series Bi-Color Rectangle with Flat Top 1208 Package LEDs |
| Current - Test | 20mA |
| Family | LED Indication - Discrete |
| Mounting Type | Surface Mount |
| Packaging | Cut Tape (CT) |
| ECCN | EAR99 |
