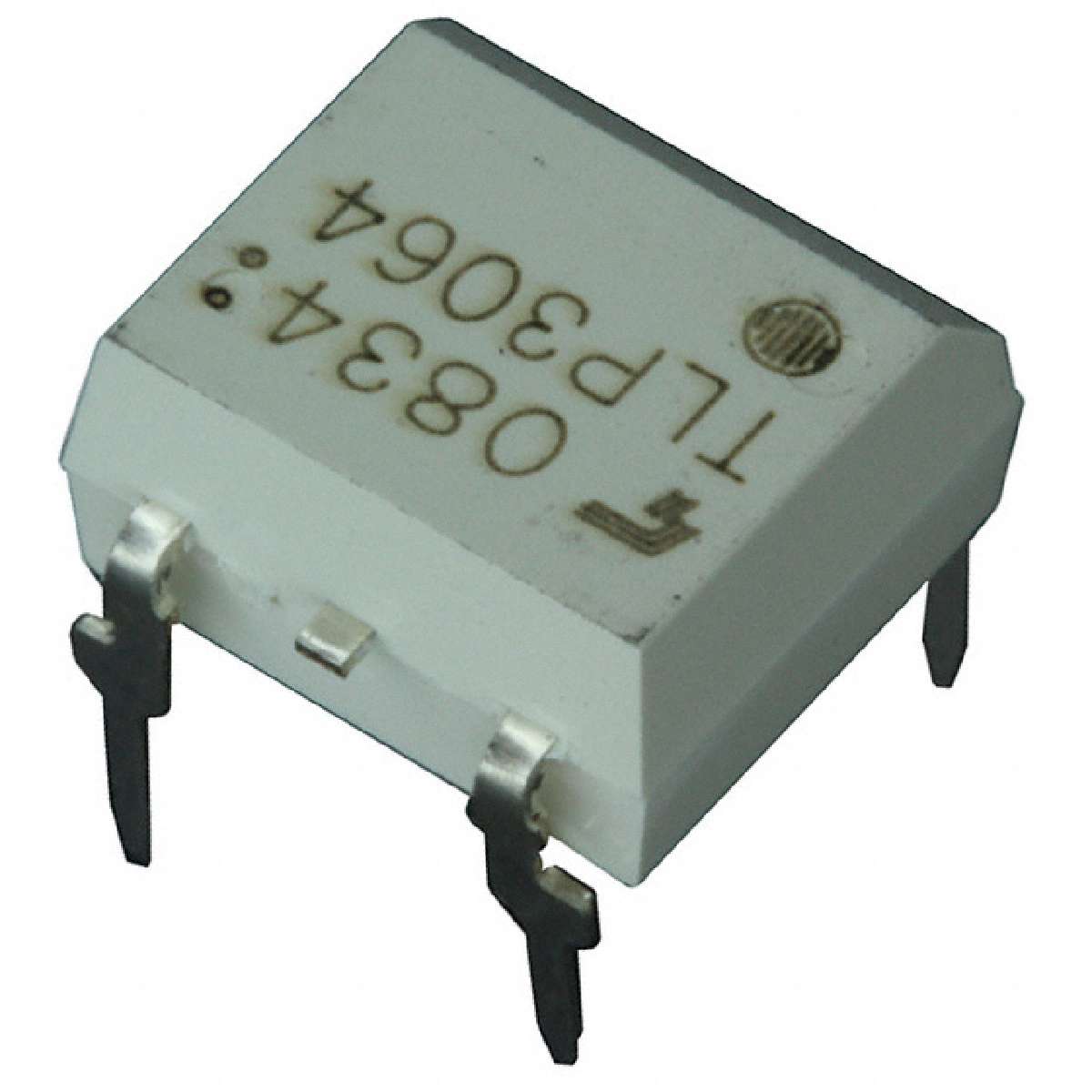

| TLP3064SCF | ||
|---|---|---|
|
|
||
|
||
| Product description : OPTOISOLATOR 5KV TRIAC 6DIP 5L | ||
| SPQ：50 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Voltage - Isolation | 5000Vrms |
|---|---|
| Approvals | BSI, SEMKO, UR |
| Mounting Type | Through Hole |
| Static dV/dt (Min) | 200V/µs |
| Supplier Device Package | 6-DIP (Cut), 5 Lead |
| Packaging | Tube |
| Number of Channels | 1 |
| Voltage - Forward (Vf) (Typ) | 1.4V |
| Family | Optoisolators - Triac, SCR Output |
| Voltage - Off State | 600V |
| Zero Crossing Circuit | Yes |
| Current - DC Forward (If) (Max) | 30mA |
| Current - LED Trigger (Ift) (Max) | 3mA |
| Package / Case | 6-DIP (0.300", 7.62mm), 5 Leads |
| Standard Package | 50 |
| Current - Hold (Ih) | 600µA (Typ) |
| Output Type | Triac |
| Current - On State (It (RMS)) (Max) | 100mA |
| Operating Temperature | -40°C ~ 100°C |
