TLP166J(V4,C,F) specifications -Ameya360 electronic components purchase network

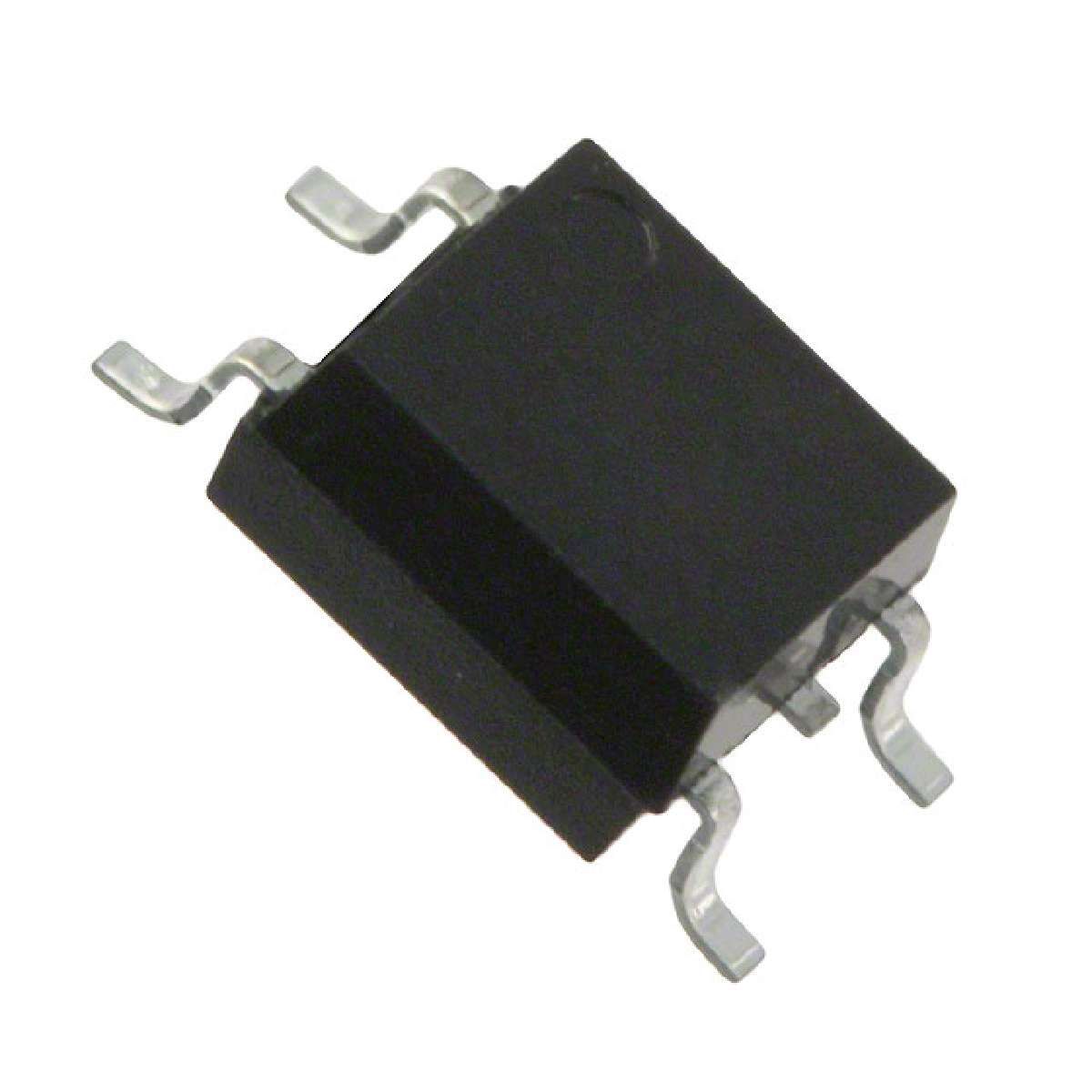

TLP166J(V4,C,F)

ACTIVE 6-MFSOP, 4 Lead
Product description : OPTOISOLATOR 2.5KV TRIAC 6MFSOP
SPQ：150
Datasheet : --

Voltage - Isolation	2500Vrms
Approvals	UR, VDE
Mounting Type	Surface Mount
Static dV/dt (Min)	200V/µs
Supplier Device Package	6-MFSOP, 4 Lead
Packaging	Tube
Number of Channels	1
Voltage - Forward (Vf) (Typ)	1.15V
Family	Optoisolators - Triac, SCR Output
Voltage - Off State	600V
Zero Crossing Circuit	Yes
Current - DC Forward (If) (Max)	50mA
Current - LED Trigger (Ift) (Max)	10mA
Package / Case	6-SOIC (0.173", 4.40mm Width) 4 Leads
Standard Package	150
Current - Hold (Ih)	600µA (Typ)
Output Type	Triac
Current - On State (It (RMS)) (Max)	70mA
Operating Temperature	-40°C ~ 100°C
