| SS-5-1A-BK | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

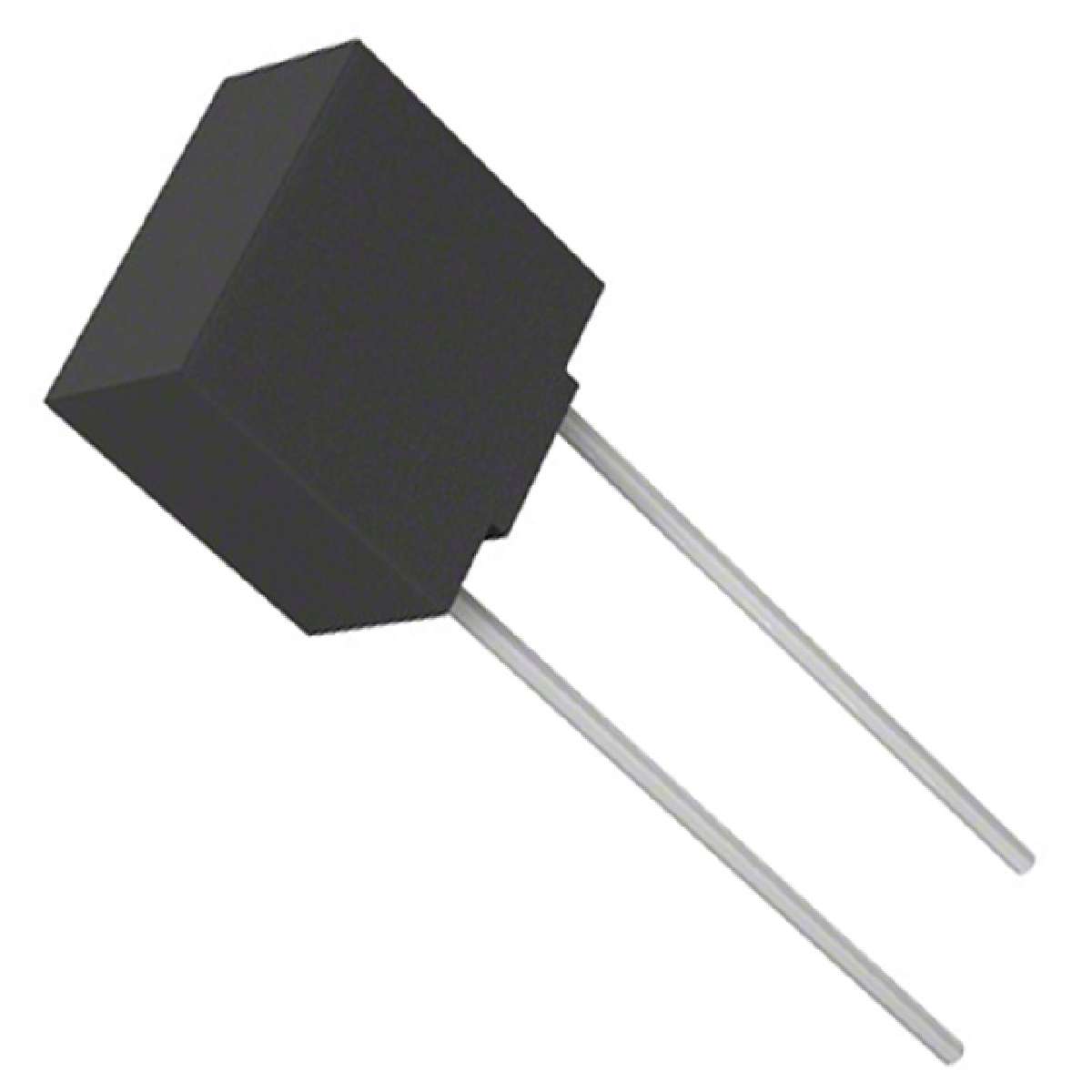

SS-5 Series Time Delay 250V 1 A 8.5 x 4.3 mm Radial Lead Subminiature Fuse
|
||
| 标准包装：1 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Package / Case | Radial, Box |
|---|---|
| Standard Package | 200 |
| PCN Design/Specification | SS-5(H) Ammo Pack Paper Thickness 30/Aug/2011 S -8yyy,HTC-yy,PC,SR-5,SS-5 Series 01/May/2014 |
| Size / Dimension | 0.335" L x 0.169" W x 0.329" H (8.50mm x 4.30mm x 8.35mm) |
| Fuse Type | Board Mount (Cartridge Style Excluded) |
| DC Cold Resistance | 0.08075 Ohm |
| Family | Fuses |
| Operating Temperature | -40掳C ~ 125掳C |
| Current Rating | 1A |
| Melting I虏t | 7.4 |
| Voltage Rating - AC | 250V |
| Approvals | CQC, cULus, EK-MARK, PSE, SEMKO, VDE |
| Packaging | Bulk |
| Response Time | Slow |
| Series | SS-5 |
| Mounting Type | Through Hole |
| Breaking Capacity @ Rated Voltage | 35A |
| ECCN | EAR99 |
| 数据手册： |
|---|
