| 16N78-212E.1001 | ||
|---|---|---|
|
|
||
|
||

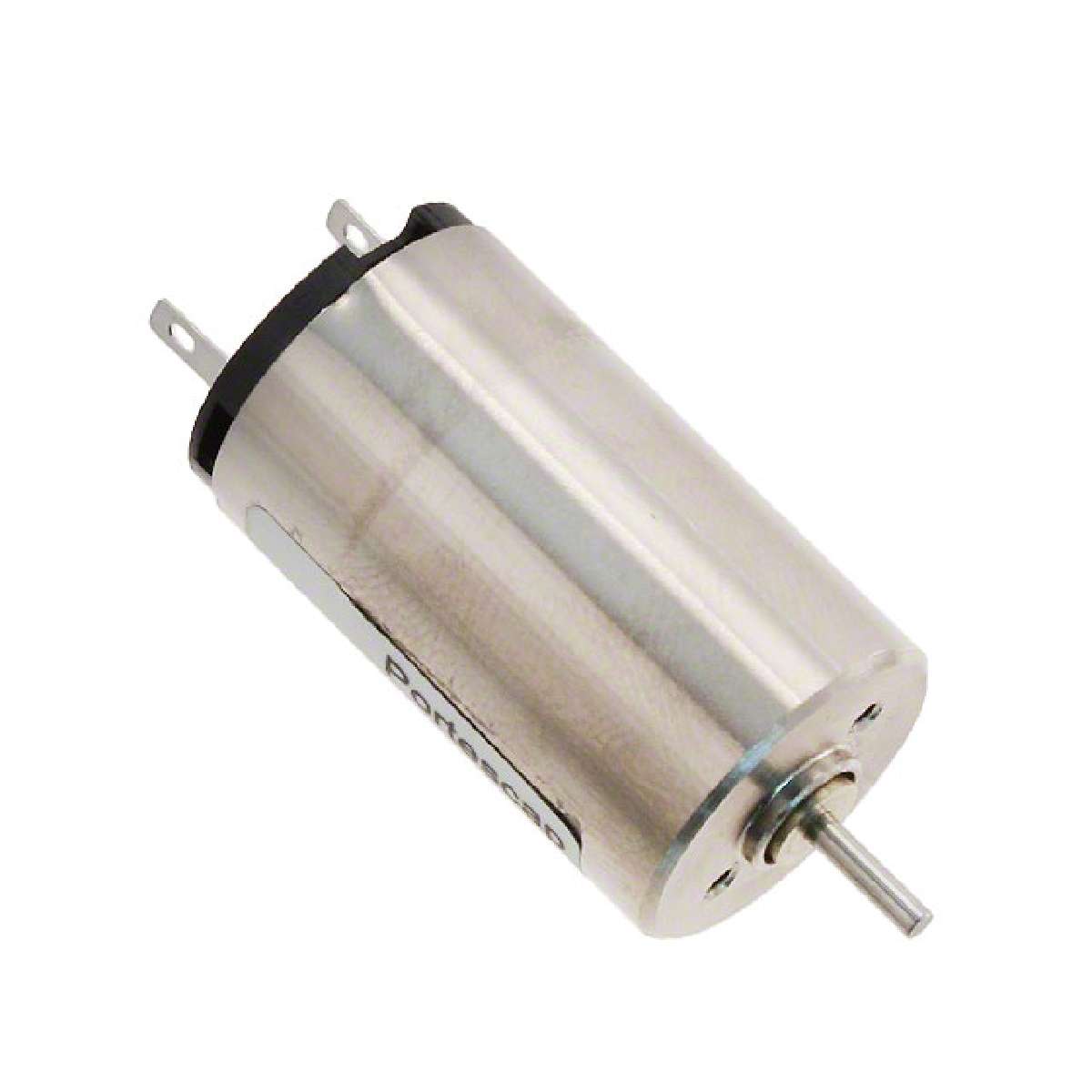

| Product description : Portescap 电刷 直流电动机, 5.2 W, 12 V 直流, 6.2 mNm, 8380 rpm, 1.5mm Shaft Diameter | ||
| SPQ：1 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Type | DC Motor |
|---|---|
| Function | Standard |
| Termination Style | Solder Tab |
| Size / Dimension | Round - 0.629" Dia (16.00mm) |
| Category | Motors, Solenoids, Driver Boards/Modules |
| Motor Type | Brushed |
| Voltage - Rated | 12VDC |
| Series | 16N78 Athlonix |
| RPM | 10000 RPM |
| Operating Temperature | -30°C ~ 85°C |
| Mounting Hole Spacing | 0.394" (10.00mm) |
| Torque - Rated (oz-in / mNm) | 0.94 / 6.6 |
| Diameter - Shaft | 0.059" (1.50mm) |
| Part Status | Active |
| Manufacturer | Portescap |
| Weight | 0.053 lb (24.04g) |
| Power - Rated | 5.2W |
| Family | Motors - AC, DC |
| Length - Shaft and Bearing | 0.295" (7.50mm) |
