| SC4020FH-150 | ||
|---|---|---|
|
|
||
|
||

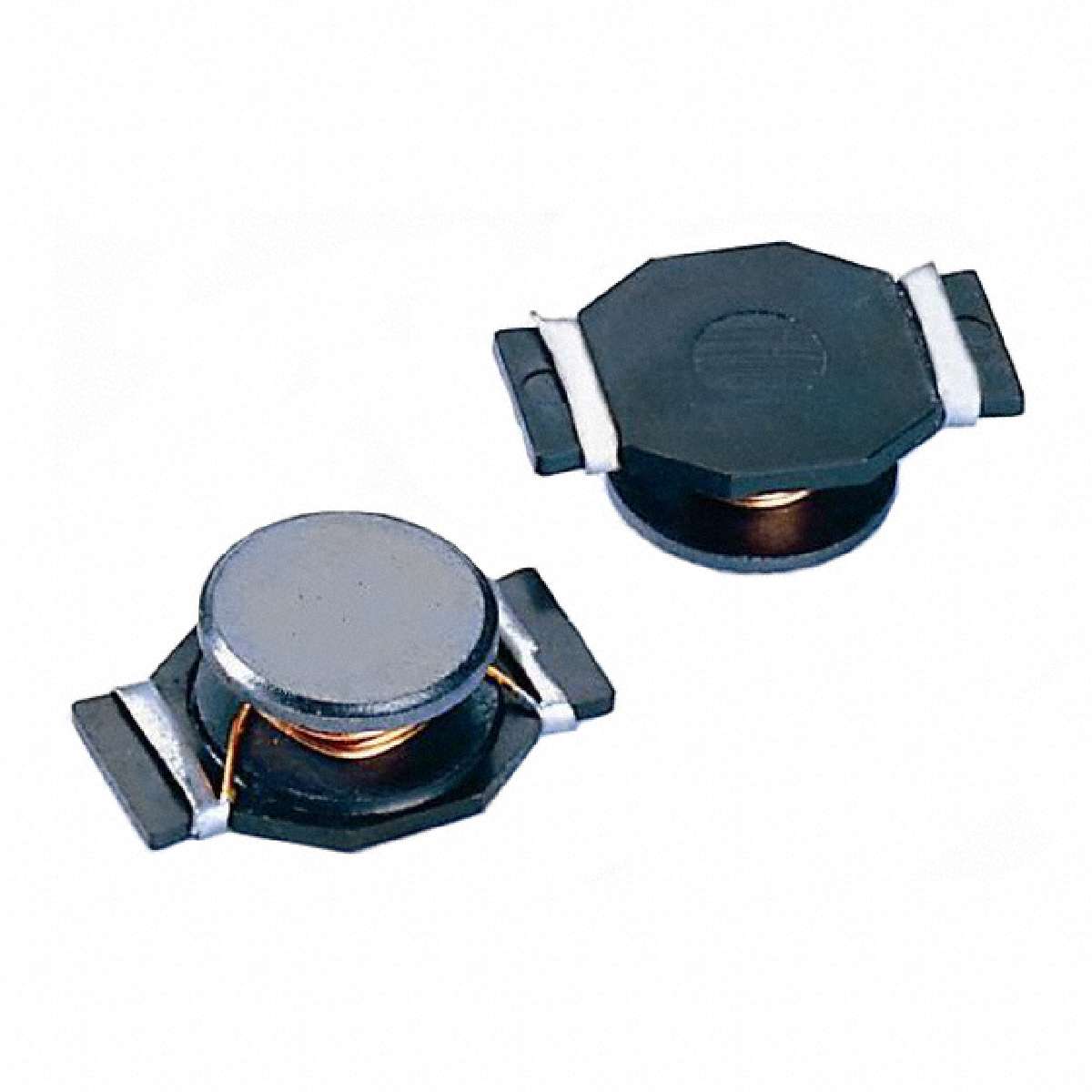

| Product description : FIXED IND 15UH 4.1A 45 MOHM SMD | ||
| SPQ：300 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Tolerance | ±20% |
|---|---|
| Package / Case | Nonstandard |
| Standard Package | 300 |
| Size / Dimension | 0.768" L x 0.524" W (19.50mm x 13.30mm) |
| Height - Seated (Max) | 0.272" (6.90mm) |
| Family | Fixed Inductors |
| RoHS Information | RoHS Compliance |
| DC Resistance (DCR) | 45 mOhm Max |
| Frequency - Test | 100kHz |
| Inductance | 15µH |
| Type | Wirewound |
| Current - Saturation | 4.3A |
| Packaging | Tape & Reel (TR) |
| Series | SC4020FH |
| Mounting Type | Surface Mount |
| Shielding | Unshielded |
| Current Rating | 4.1A |
