| POE31U-560 | ||
|---|---|---|
|
|
||
|
||

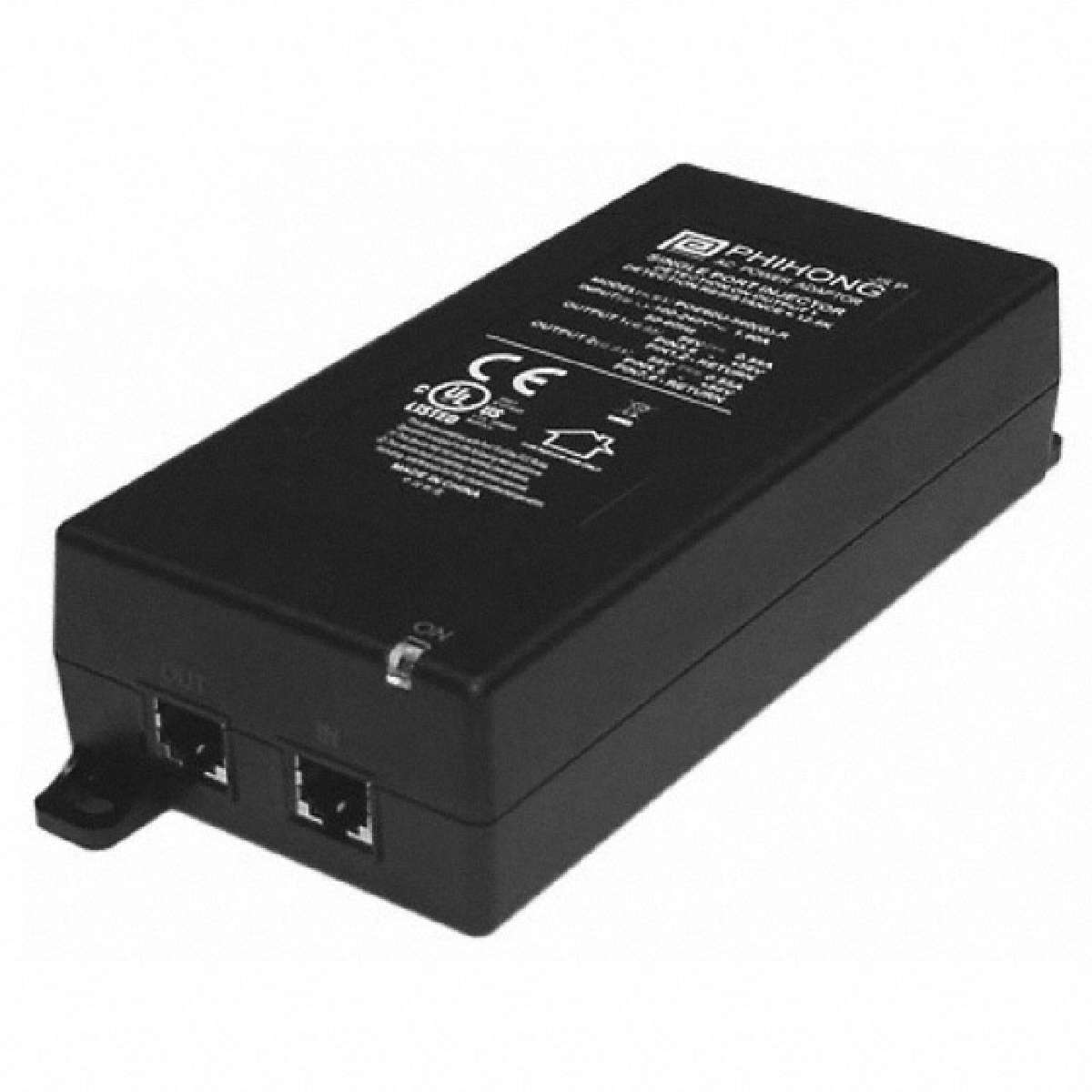

| Product description : POE INJECTOR 30W 56V DESKTOP | ||
| SPQ：1 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Type | Passive Injector |
|---|---|
| Input Connector | IEC 320-C14 |
| Current - Output | 540mA |
| Approvals | CE, cULus |
| Size / Dimension | 6.42" L x 2.56" W x 1.42" H (163.3mm x 65.0mm x 36.0mm) |
| Weight | 0.496 lb (224.98g) |
| Number of Ports | 1 |
| Voltage - Input | 85 ~ 264 VAC |
| Standard Package | 1 |
| Online Catalog | POE31x Series |
| Family | Power over Ethernet (PoE) |
| Compliance | IEEE802.3at |
| Output Connector | RJ45 (Data, Power) |
| Voltage - Output | 56V |
| Product Training Modules | PoE |
| Efficiency | Level V |
| Mounting Type | Desktop |
| Power (Watts) - Per Port | 30W |
| Note | AC Power Cord Sold Separately |
| Features | OCP, OVP, SCP |
| Series | POE31X |
| Operating Temperature | 0掳C ~ 40掳C |
