| Number of Ports | 1 |
|---|---|
| Data Rate | 10/100/1000 Mbps |

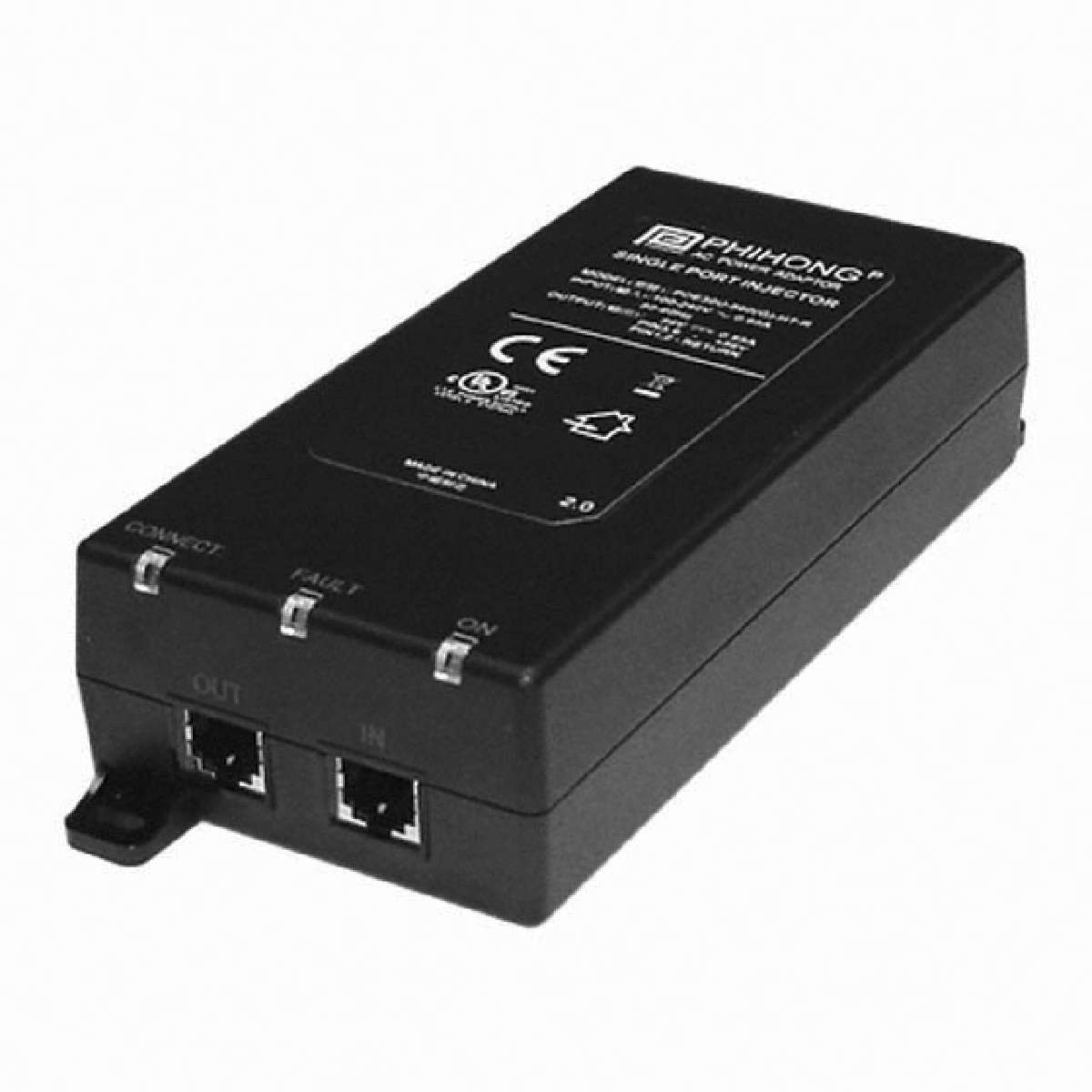

| Type | Midspan Injector |
| Output Connector | RJ45 (Data, Power) |
| Current - Output | 550mA |
| Standard Package | 1 |
| Approvals | CE, cULus |
| Size / Dimension | 6.53" L x 3.15" W x 1.73" H (166.0mm x 80.0mm x 44.0mm) |
| Weight | 0.441 lb (200.03g) |
| Family | Power over Ethernet (PoE) |
| Operating Temperature | 0°C ~ 40°C |
| Power (Watts) - Per Port | 30W |
| Voltage - Input | 90 ~ 264 VAC |
| Compliance | IEEE802.3af |
| Input Connector | IEC 320-C14 |
| Note | AC Power Cord Sold Separately |
| Voltage - Output | 56V |
| Features | OCP, OVP, SCP |
| Efficiency | 65% |
| Series | POE30 |
| Mounting Type | Desktop |
